The 1762 input module is designed for industrial applications when installed according to these instructions. It is specifically intended for operation in clean, dry environments (Pollution Degree 2) and in circuits that do not exceed Overvoltage Category II, as defined by IEC 60664-1.
Model :
Features :
.png)
Diagram :
.png)
Dimension :
.png)
Specifications :
- 1762-IQ32T

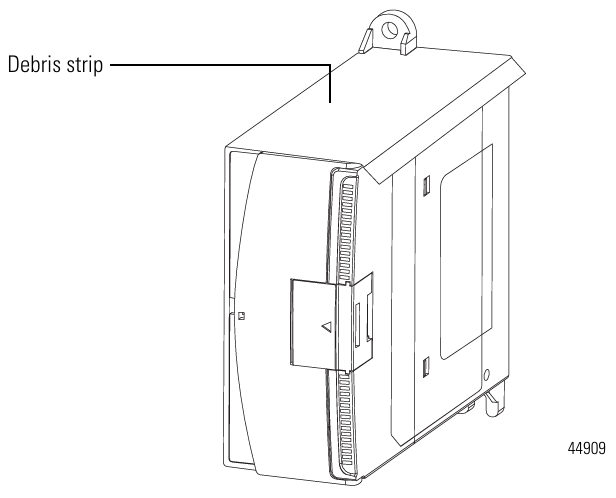

Features :
.png)

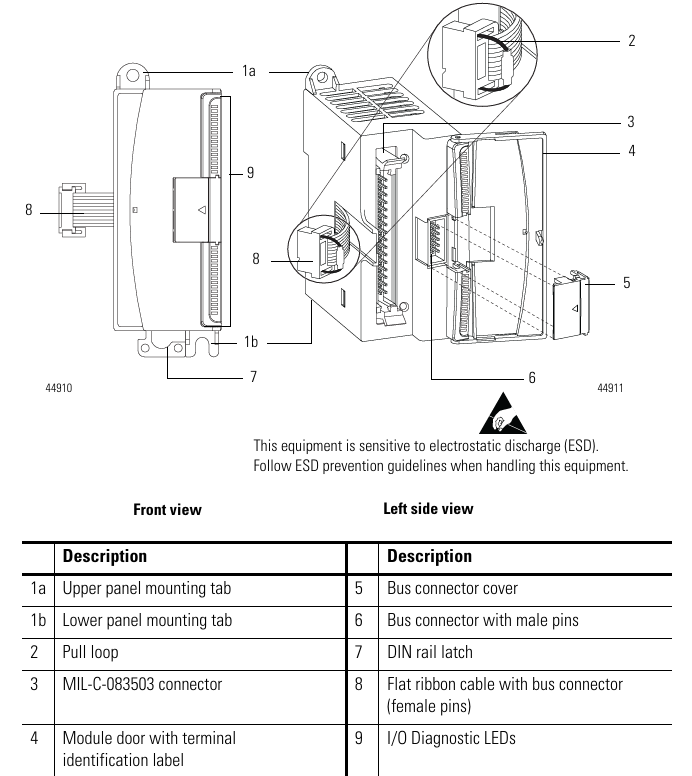

Diagram :
.png)

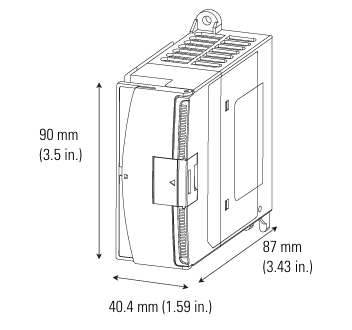

Dimension :
.png)
Specifications :
| Attribute | Value |
| Number of inputs | 32 |
| Dimensions (HxWxD) | 90 x 40.4 x 87 mm (3.54 x 1.59 x 3.43 in.) |
| Shipping weight, approx. | 200 g (7.05 oz) |
| Bus current draw, max | 170 mA @ 5V DC 0 mA @ 24V DC |
| Wire size | 22, 24, 26 AWG solid or stranded copper wire rated @ 90°C (194 °F) |
| Wiring category (1) | 2 - on signal ports |
| Pilot duty rating | Not rated |
| Enclosure type rating | IP20 |
