MT50130 series provides a 50mm through-bore for routing of hydraulic or pneumatic lines or hydraulic
or pneumatic rotating shaft installation, and a compact 130mm outside diameter,features long life,
fiber brush contact technology for ultimate performance in manychallenging applications.

MT50130 series are standard, off-the-shelf products, Color-coded lead wires are used onboth the
stator and rotor for simplified electrical connections.It can transmit signal(2A), 10A, multiple 10A
current when 360° degree free rotating.

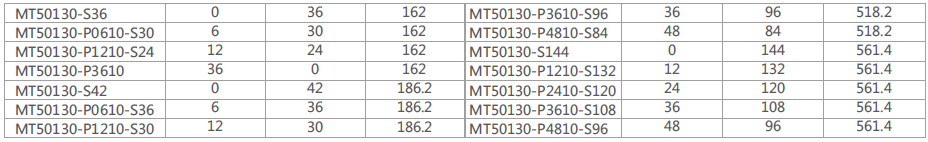

Model :






---

Dimension :






---

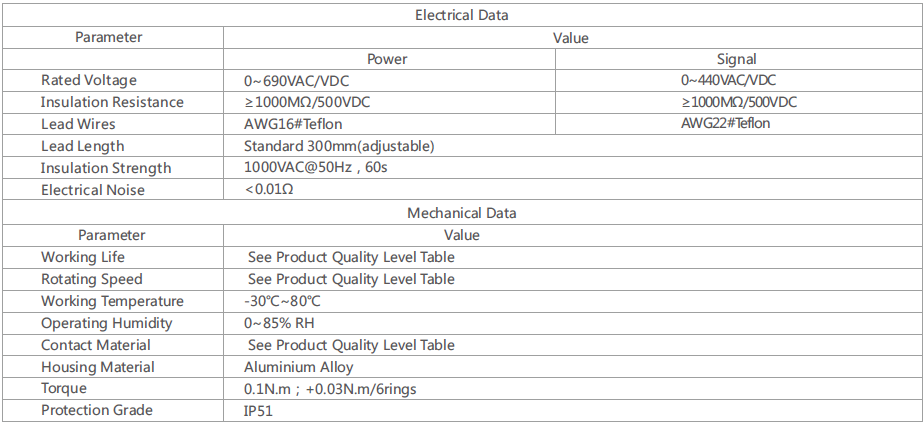

Specifications :

---
