Overview
The OPTIBAR FC 1000 is a compact, high performance flow computer for volumetric flow calculation and heat quantity measurement of liquids and gases, including saturated steam and superheated steam. Commissioning and operation of the flow computer is quick and easy thanks to its user-friendly operating philosophy. The full-screen, multi-colour touch screen offers extensive options for customising the display of process readings to suit any customer applications. Communication and measured data transmission via HART® protocol as well as the option for split-range operation allows very accurate differential pressure (DP) flow measurements especially at low working pressures. This makes the device an ideal enhancement for gas measurements with averaging pitot tubes as well as flow nozzle meters or Venturi meters with high measuring dynamics.
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- User interface can be customised to suit specific application requirements
- Supports split-range operation and automatic zero calibration
-
High system capacity with correction calculation according to the following equations of state:
- Ideal gas, Redlich-Kwong, Redlich-Kwong-Soave, Peng-Robinson, AGA-8 DC/GC, SGERG 88, AGA-NX19 (gases), IAPWS-97 (water, steam) and value tables (liquids, heat transfer media)
- Digital communication to connected pressure transmitters via HART® protocol
- Integrated FSK-modem for 2 analogue inputs: makes parameterisation easy and eliminates additional sources of uncertainty in the signal exchange
- User-friendly configuration via online configuration tool

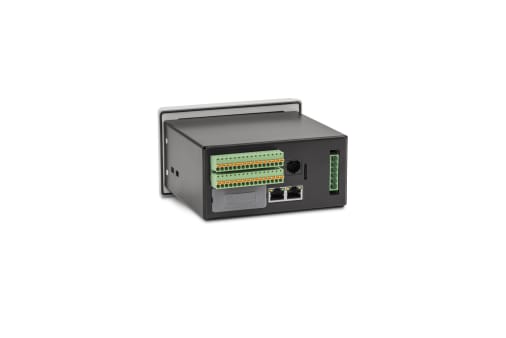

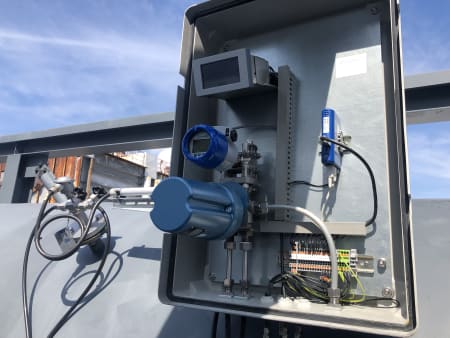

- Available as a panel-mount version for control cabinets and as a versatile wall-mounted version
-
Specifications
Depending on selected device configuration
General information
Product type Flow component/auxiliary equipment Product family name OPTIBAR Product positioning For process control of liquids, gases and steam Product variants - OPTIBAR FC 1000 for panel mounting
- OPTIBAR FC 1000 for wall mounting
Approvals/Standards
Ingress protection IP65 Calculation methods
Flow meter Special calculation algorithms for differential pressure instruments, ultrasonic flowmeters, volumetric instruments and mass flow sensors Heat carrier oils Parameterisation based on individual properties Other fluids Constant characteristics Technical gases Ideal gas law, Redlich-Kwong, Redlich-Kwong-Soave, Peng-Robinson, AGA-8 DC/GC, SGERG 88, AGA-NX19 Water and steam IAPWS-97 Input signals
Absolute pressure 1 × 0/4 … 20 mA Flow 2 x 0/4 … 20 mA (with FSK-Modem for HART® devices)
2 × FrequencyTemperature 2 × Pt100
2 × 0/4 … 20 mACommunication
Analogue outputs 0…20 mA, 4…20 mA Discrete outputs 1 x mechanical relay, 2 x electronic relay Digital outputs HART®, Modbus RTU, USB, Modbus TCP, M-Bus, Profibus-DP (with protocol converter), PROFINET (with protocol converter)
