Refrigerated Air Dryers
The FLEX series are optimized air dyers for hot and humid climate in the tropical regions. An advanced stainless steel brazed plate heat exchanger is applied, and it deters refrigeration load with great efficiency of heat-transfer. The innovative and simplified refrigeration circuit provides reliable operation, low operating cod and versatile installation.
Features
Optimized for hot and humid climate in the tropical regions
Stainless steel brazed plate heat exchanges optimize heat transfer and service life

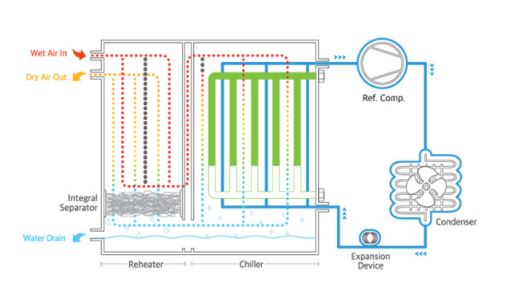

Separator, re-heater and evaporator combined into 1 compact efficiency unit
Improved ventilation by up-flow coding air design
Low pressure drop reduces operating costs
Low power consumption
Easy to install package saves time and money
Environmentally friendly R -134a & R-407C refrigerants
| Model | Flow Capacity (Nm3/min) |
Unit (kW) | Power Supply |
Inlet / Outlet Connection (PT) |
Weight (kg) |
Dimension(mm) | Refrigerants | ||
| H | W | D | |||||||
| HLX 2.4 | 24.1 | 0.52 | 220 ~ 240V 1PH 50Hz |
1” | 50 | 641 | 363 | 881 | R-134a |
| HLX 3.1 | 3.11 | 0.59 | 1” | 52 | 641 | 363 | 881 | ||
| HLX 4.2 | 4.25 | 0.71 | 2” | 67 | 761 | 443 | 931 | R-407C |
|
| HLX 6.8 | 6.80 | 1.36 | 2” | 77 | 761 | 443 | 1031 | ||
| HLX 10.4 | 10.48 | 2.00 | 2” | 97 | 811 | 493 | 1111 | ||
| HLX 12.7 | 12.74 | 2.38 | 2” | 100 | 811 | 493 | 1111 | ||
| HLX 15.0 | 15.00 | 2.66 | 2” | 128 | 811 | 553 | 1211 | ||
| HLX 22.6 | 22.64 | 5.80 | FLG 3” | 285 | 1572 | 724 | 1154 | ||
| HLX 35.3 | 35.38 | 7.30 | 380V 3PH 50Hz |
FLG 4” | 340 | 1572 | 724 | 1204 | |
| HLX 42.4 | 42.47 | 7.10 | FLG 4” | 400 | 1572 | 804 | 1254 | ||
