Combo Blower / Filler / Capper

Online blowing, filling, capping technology with very stable preforms and bottles transfer and 25% or more line energy saving achieved.



Advantages of Combi – Bloc

1) Less Space
2) Higher Earnings
3) Less Operator
4) More reliable quality
5) Higher Efficiency
6) Lower energy Consumption

Combi-Bloc Working Process

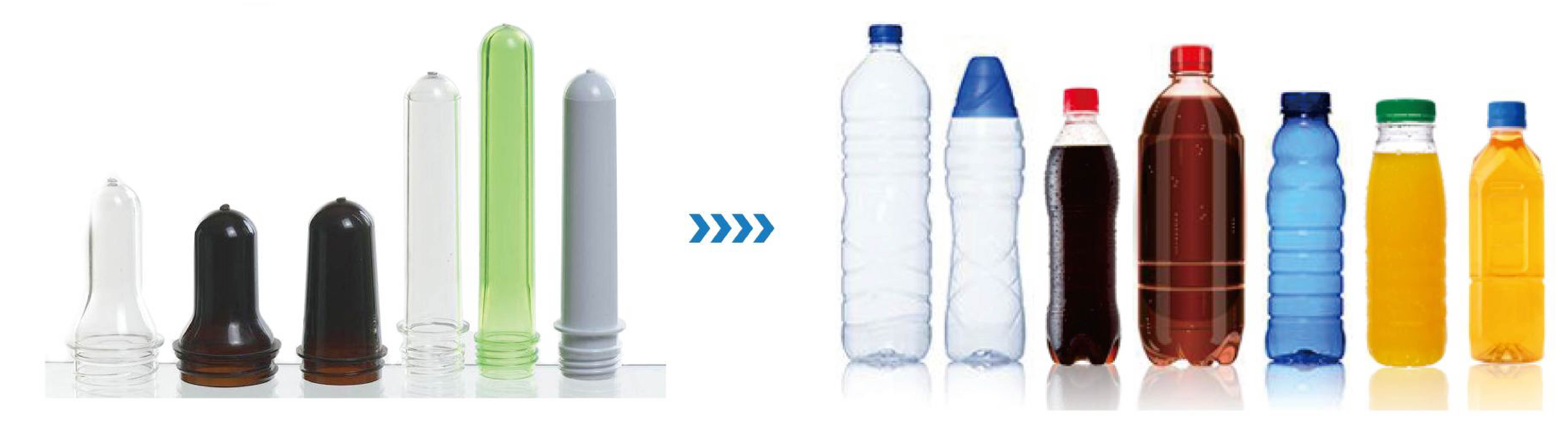

Preform Infeed > Preform Heating > Blowing > Sterwheel Transfer > Filling > Capping > Product Discharge.



Carbonated Drinks Filling Technology

1) Mechanical or volumetric electronic filling valve
2) Tubular type filling bowl no dead angle, easy to clean,
3) Automatic CIP, easy for operation and maintenance
4) Raise filling temperature above 12~15 C for energy saving
5) Volumetric valve leads to high filling precision, 5~6 times higher than mechanical valve
6) Volumetric valve filling can realize fast changeover, no vent tubes.

No of blower cavity	No.of filling valve	No.of Capping Head	Capacity BPH (0.5L)	Filling Valve Pitch
6	32	8	10000	40 ग
8	40	10	15000	36  ग
10	50	10	18000	36  ग
12	60	12	21000	36  ग
12	60	12	20000	36  ग
14	60	15	24000	40  ग
14	80	15	24000	36  ग
16	80	15	27000	36  ग
18	90	18	30000	40  ग
20	108	20	36000	36  ग

Water Filler Technolog

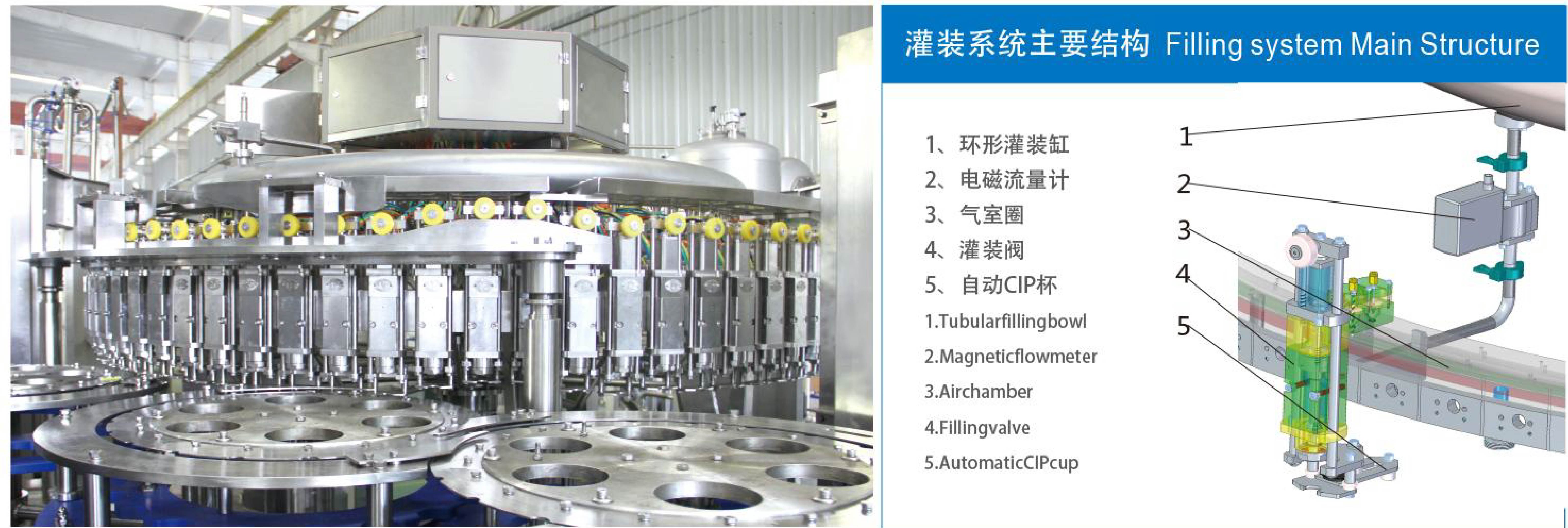

1) Flow meter filling with high efficiency
2) On-line adjusting filling volume
3) Fast Filling and slow filling adopted, filling time adjustable for different bottle size
4) Non – contact filling without cylinder, easy for maintenance.
5) Automatic CIP after install dummy cups :
6) No bottle no filling :
7) Stainless steel for product contact parts, washable structure.

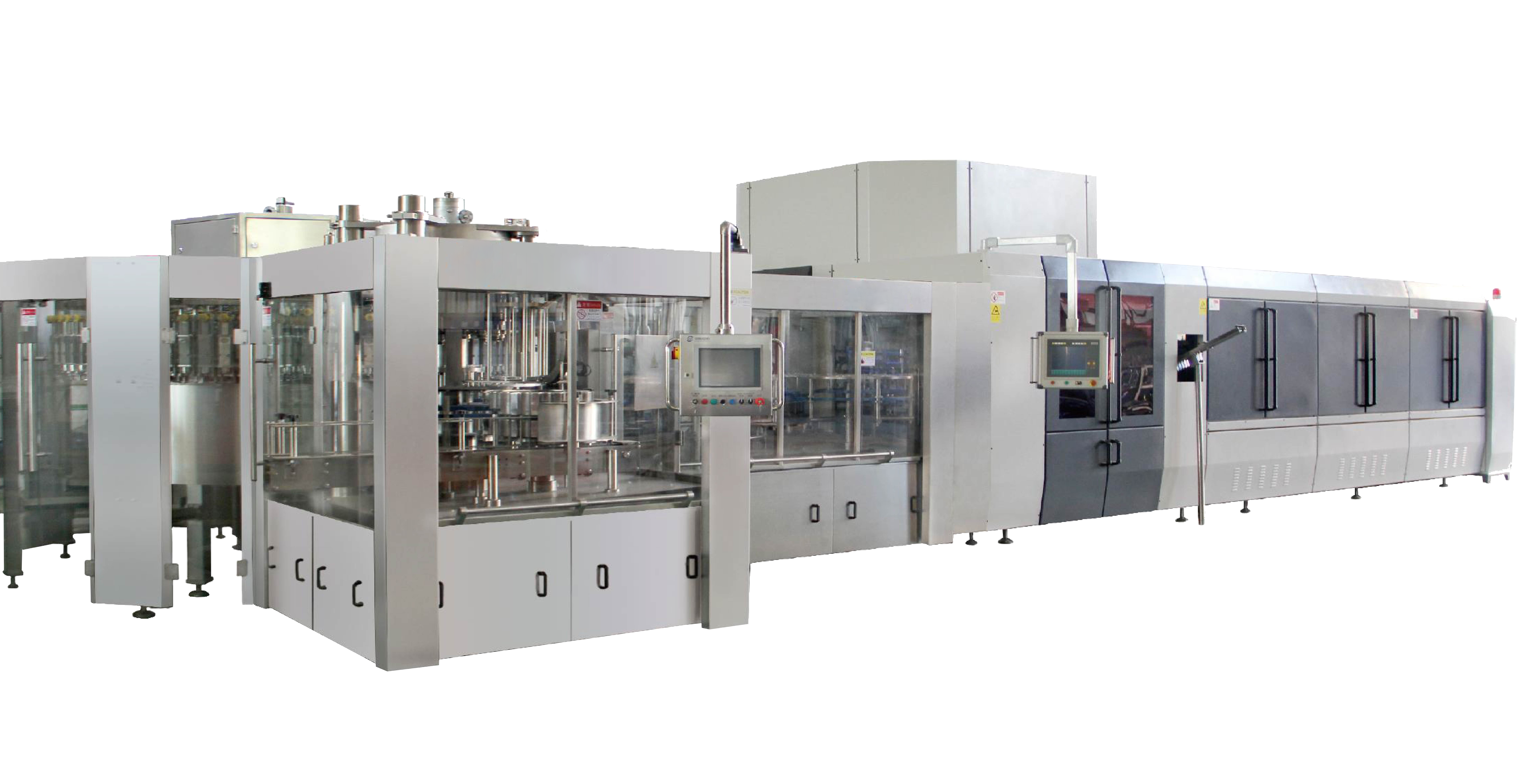

Water Combi-Bloc Machine

No. of Blower Cavity	No. of Filling Valve	No. of Capping Head	Capacity BPH (1.5L/0.5L)	Filling Valve Pitch
6	18	6	5500 / 8000 / 12000	53 ग
8	24	8	7000 / 10000 / 16000	40 ग
10	32	10	9000 / 13500 / 20000	40 ग
10	40	10	12000 / 18000 / 20000	32 ग
12	40	15	12000 / 15000 / 24000	36 ग
14	45	15	13000 / 20000 / 28000	40 ग
16	50	15	15000 / 21000/ 30000	36 ग
18	60	20	20000/ 24000 /30000	36 ग

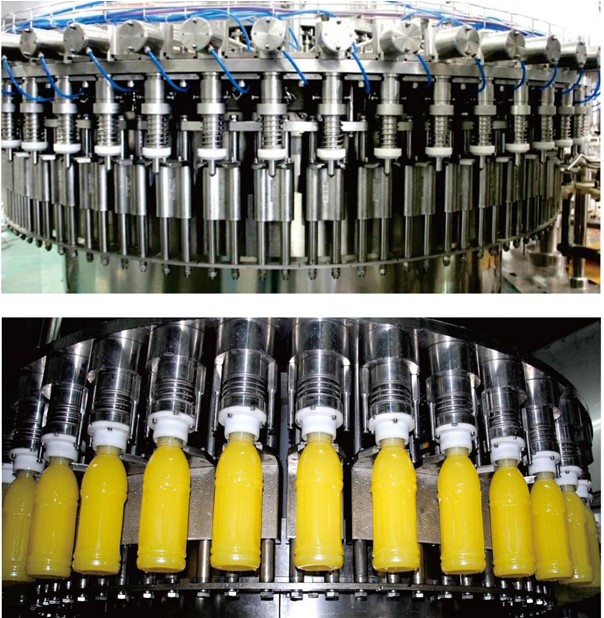

Fruit Juice/ Tea etc Technology

1) Hot filling or aseptic filling technology available :
2) For hot fill, product return during machine stop to keep valve body temperature :
3) Product return volume adjustable as per request, e.g. 5~15%
4) Filling valve design could be mechanical valve with product return, or upgraded to be electropneumatic valve or flow meter valve, simple flow structure, easy for CIP, no leakage.
5) Advanced CIP structure design no dead angle, downstream and upstream clean available.
6) Two steps filling in case fruit pulp size bigger than 5x5x5 mm
7) Enclosed structure with HEPA filter or exhaust system to guarantee clean filling area (Option)

No.of blower cavity	No.of filling valve	No.of capping head	Capacity BPH (0.5L)	Filling valve pitch
6	24	8	8000	40  ग
8	32	8	10000	40  ग
10	32	8	12000	40  ग
12	40	10	15000	36  ग
14	50	10	18000	36  ग
16	60	12	20000	36  ग
20	64	16	24000	37  ग
