Mikrosize Hardness Testing Software

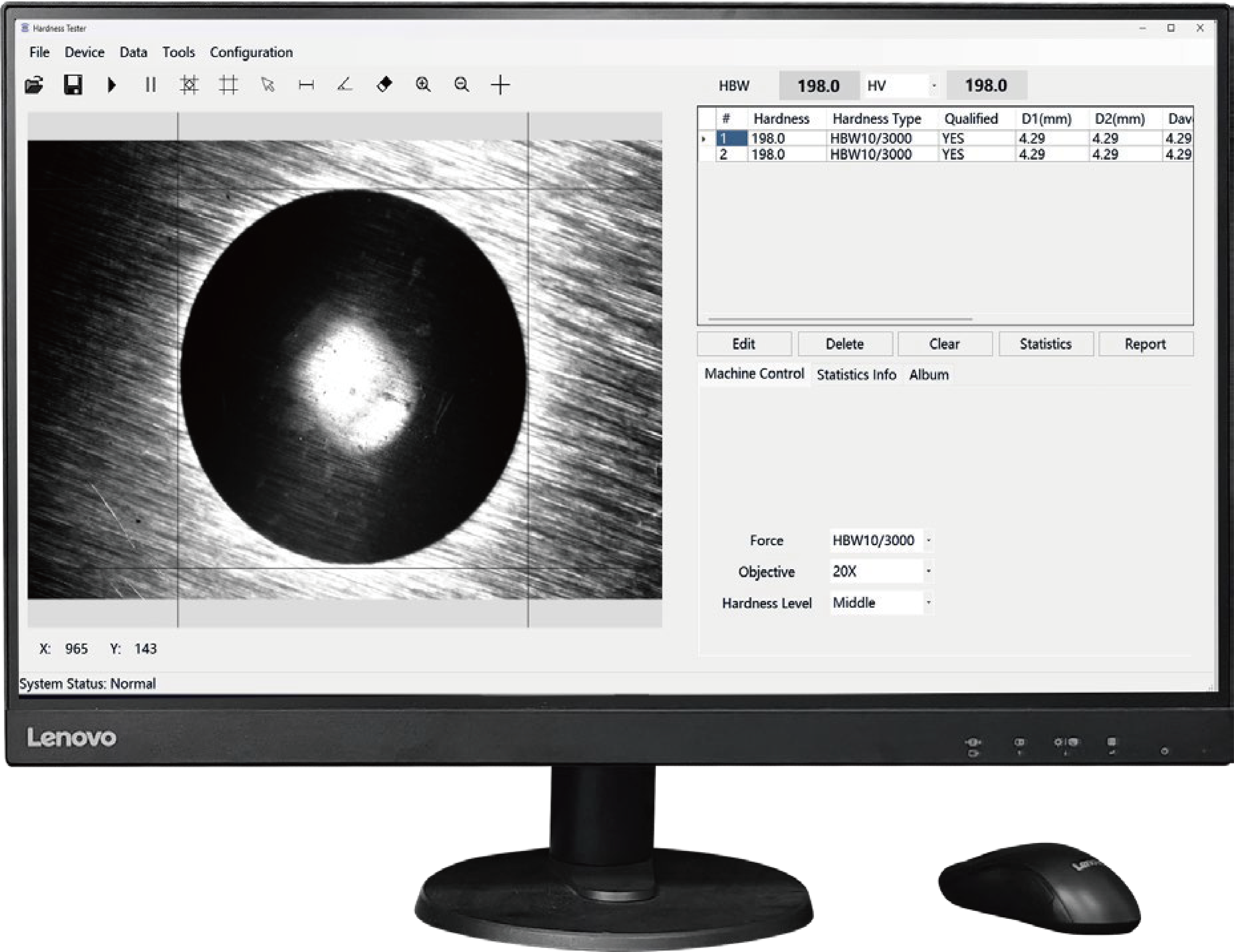

Brinell Hardness Testing Software

Code: uVision-B

Brinell Scale:

HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125HBW5/250,HBW5/750,HBW10/100,HBW10/250,HBW10/500.HBW10/1000,HBW10/1500,HBW10/3000

Meet Standard: BSEN 6506,IS0 6506,ASTM E10,GB/T231

Measuring Range: 15.9-650HBW

Measurement Resolution: 0.0001mm

Hardness Resolution: 0.1 HBW

Digital lmaging: 5 million digital camera

Calibration Method: Standard Hardness Block/Length Scale

Support Language: English or Customized

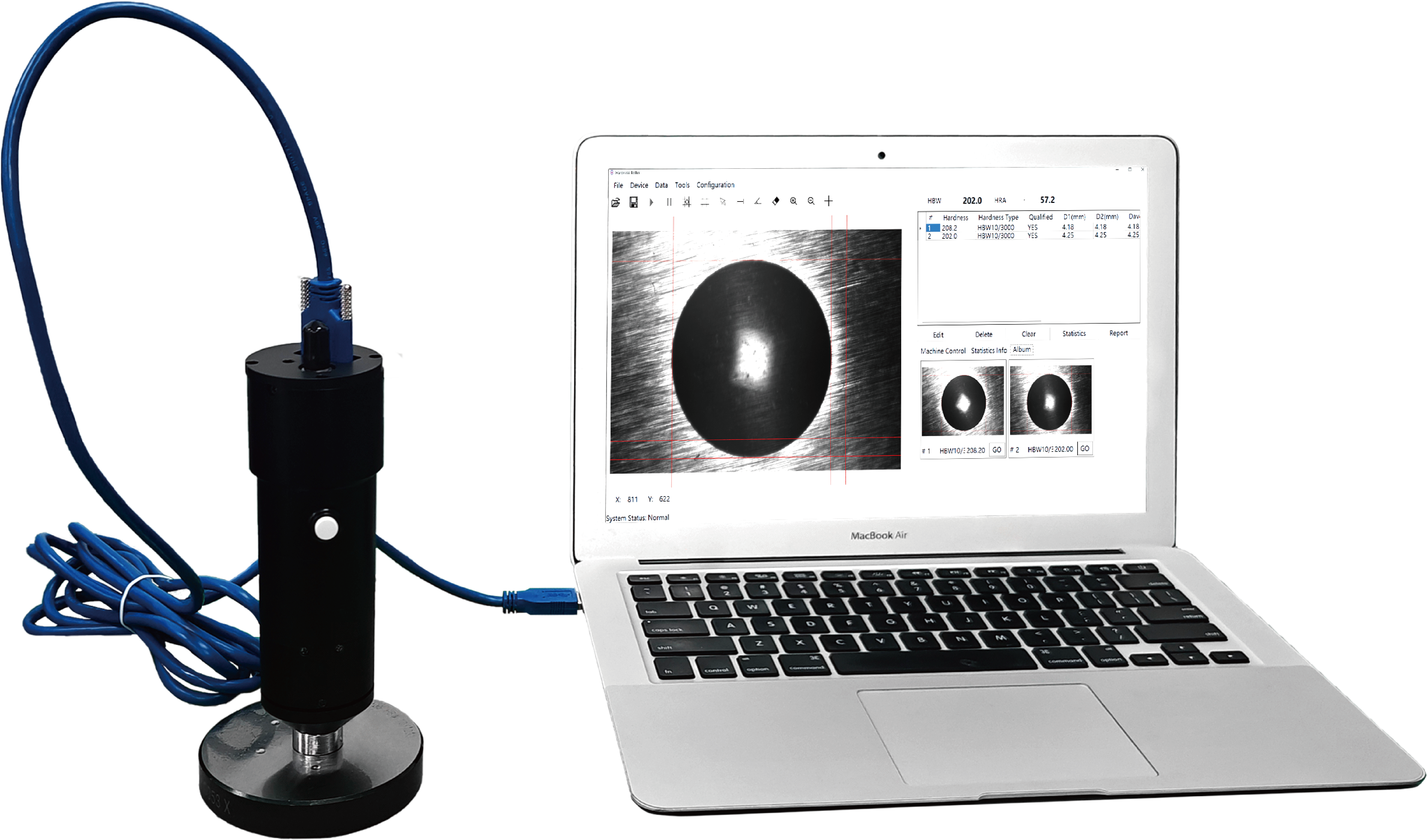

Portable Brinell Hardness Testing Software

Code: uVision-PBBrinell

Scale:HBW2.5/62.5,HBW2.5/187.5,HBW5/62.5,HBW5/125HBW5/250,HBW5/750,HBW10/100,HBW10/250,HBW10/500,HBW10/1000,HBW10/1500,HBW10/3000

Application Brinell Indentor:

2.5mm/4mm/5mm/7.26mm/10mm

Executive Standards: BSEN 6506,IS0 6506,ASTM

E10,GB/T231

Measuring Range:15.9-650HBW

Indention Diameter Range: 0.6~6mm

Measurement Resolution: 0.0001mm

Hardness Resolution: 0.1 HBW

Digital lmaging: 6.3 million industrial-grade digital camera

Power Supply: USB power supply

Calibration Method: Standard Hardness Block/Length Scale

Support Language: English or Customized

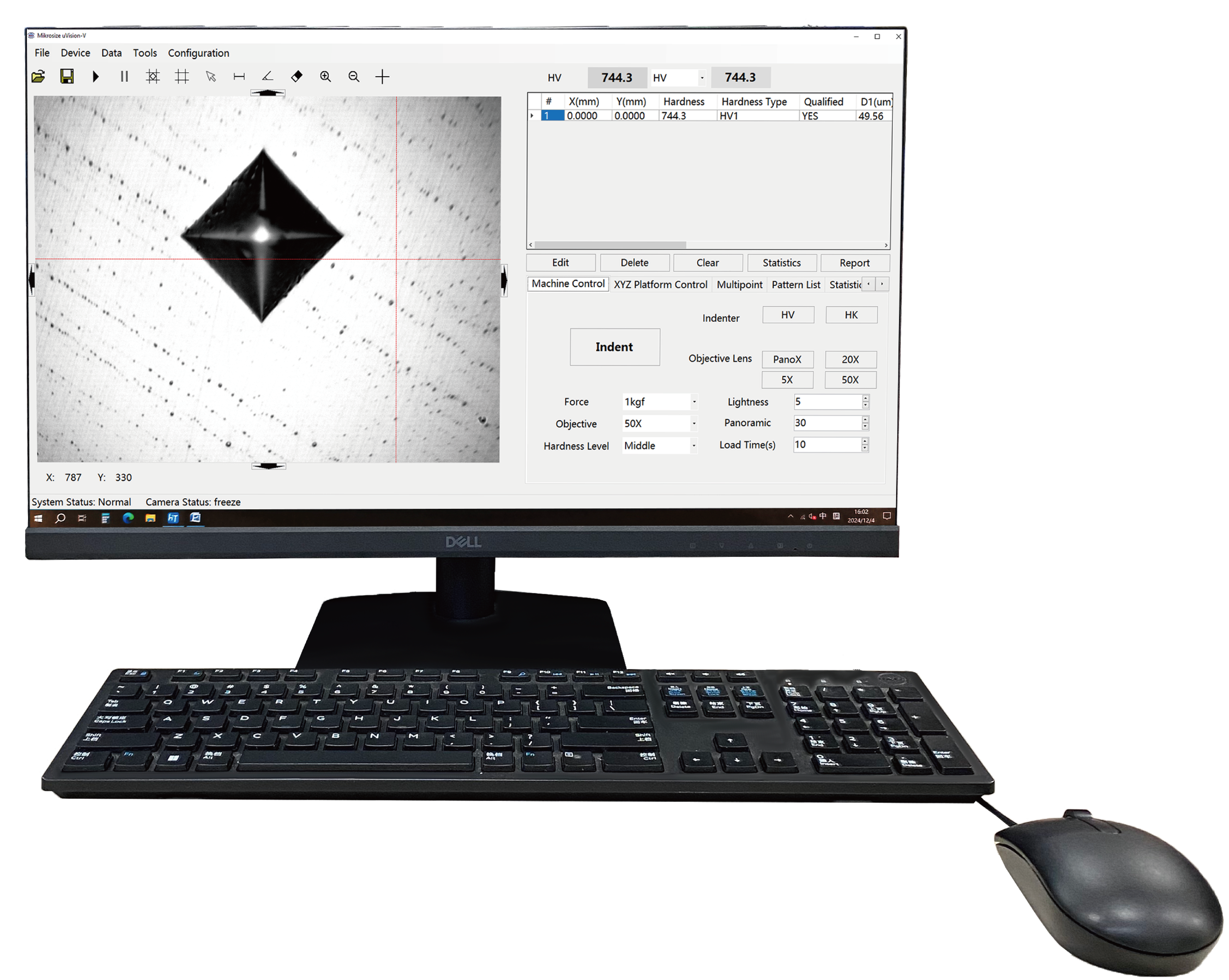

Micro/Macro Vickers Hardness Testing Software

Code: uVision-V

Measurement: Manual/Automatic Measuring for Inden-tion/Length/Angle

Function: Auto Focus/Turret Control/Dwelling Time Control/Bright-ness Adjustable/Data

Logging/Hardness Conversion/Geometric Measurement/multi-pointmeasurement

Calibration: Automatic by Standard Hardness Block/Length Scale

Camera: 5 Million Pixels

Measuring Range: 0~2967HV

Support Language: English or Customized

Packing List: Camera/CCD Adaptor/USB Flash Disk/Encryption Dog
