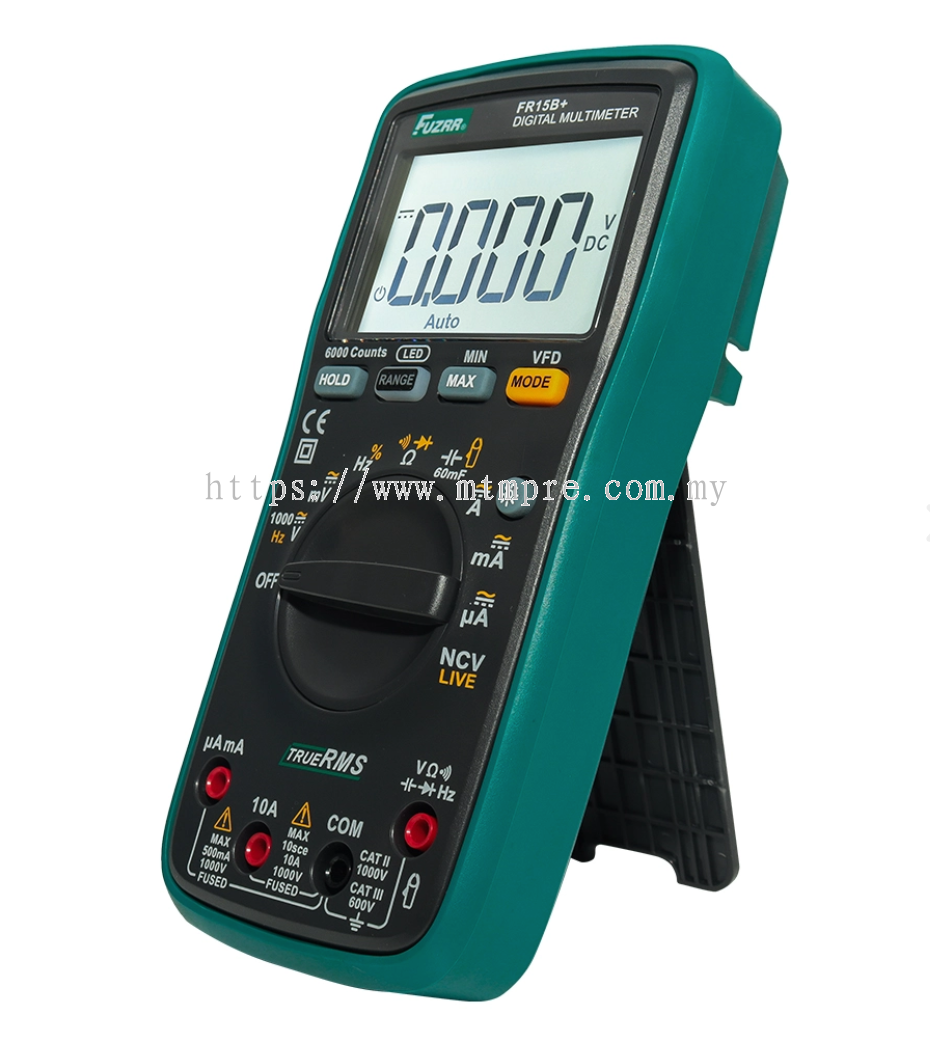

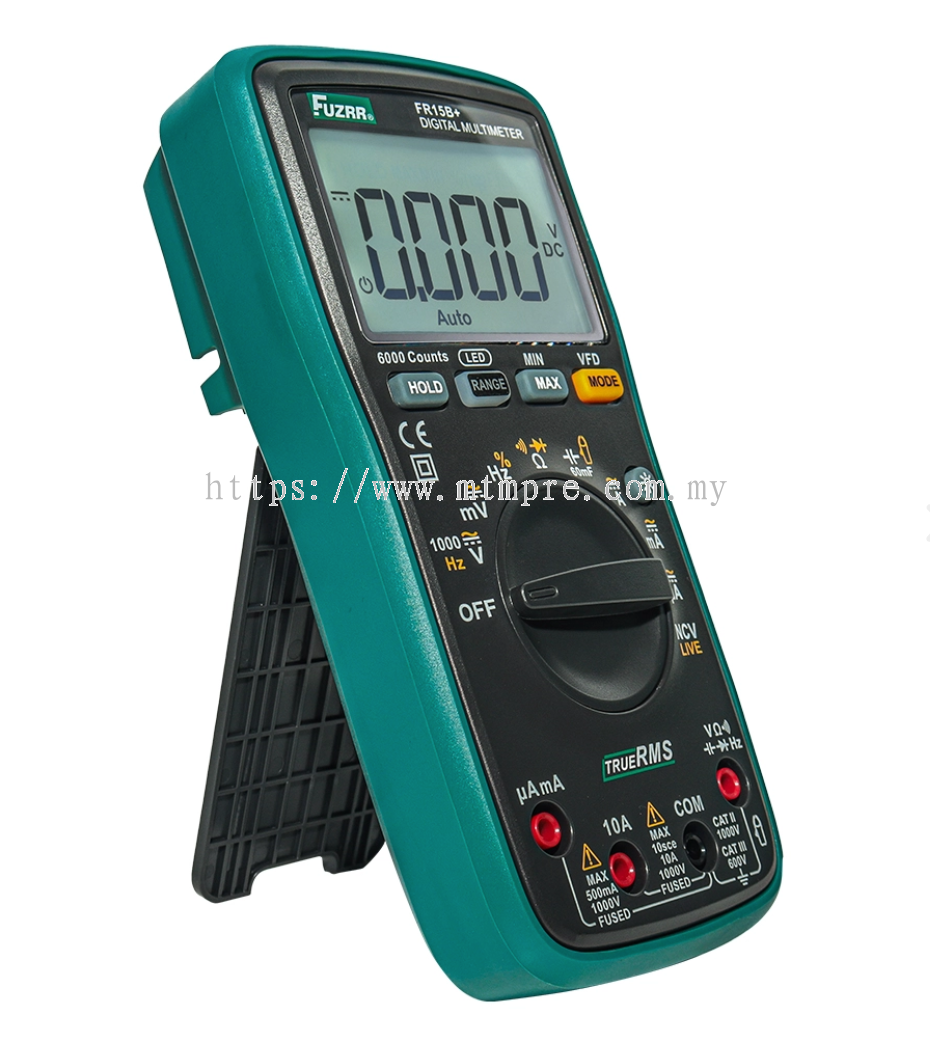

●FR15B+ / FR17B+ Auto-Ranging Digital Multimeter
- 6000 counts True RMS
- DC Voltage: 1000V (1500V FR17B+)
- AC Voltage: 1000V
- VFD AC 600V (Variable Frequency)
- 600A AC / DC Current Clamp (1A=1mV)
- 60MΩ resistance measurement
- 60000uF capacitance measurement
- 20MHz Frequency measuring Capability
- 600uA ~ 600mA AC / DC current measurement
- 6.000A~10A AC / DC current measurement
- Temperature 1000°C / 1832°F (FR17B+)
- Continuity / Diode / Duty Cycle
- NCV / LIVE, Red LED Flash
- Continuity Buzzer Green LED Flash
PRODUCT APPLICATION
Suitable for professional electronic technology and new energy industries, maintenance and repair, school electronic technology training, product design of LCD ultra large screen and backlit displays, it is an essential and preferred multimeter measuring tool for self-taught electronic technology enthusiasts and factories. Electrician power distribution technology installation and maintenance.
SPECIFICATIONS
| Function / Model | FR15B+ | FR17B+ | Accuracy |
|---|---|---|---|
| DC mV | 60.00mV / 600mV | 60.00mV / 600mV | ±(0.5%+3) |
| DC V | 6V / 60V / 600V / 1000V | 6V / 60V / 600V / 1500V | ±(0.5%+3) |
| AC mV | 60.00mV / 600.0mV | 60.00mV / 600.0mV | ±(0.8%+5) |
| ACV / Bandwidth (Hz) | 6V / 60V / 600V / 1000V / 1kHz | 6V / 60V / 600V / 1000V / 1kHz | ±(0.8%+5) |
| VFD (AC Voltage) | 100 ~ 600V / 400Hz | 100 ~ 600V / 400Hz | ±(4%+5) |
| DC Current (A) | 600.0uA | 600.0uA | ±(0.8%+5) |
| 6mA / 60mA / 600mA | 6mA / 60mA / 600mA | ±(0.8%+5) | |
| 6.000A / 10A | 6.000A / 10A | ±(1.5%+5) | |
| AC/DC 600A (Current Clamp) | 0.1A ~ 600.0A (1mV=1A) | 0.1A ~ 600.0A (1mV=1A) | ±(3%+5) |
| Frequency (Hz) | 10Hz ~ 20MHz | 10Hz ~ 20MHz | ±(0.5%+5) |
| Duty% | 10% ~ 90% | 10% ~ 90% | ±(2%+5) |
| Resistance (Ω) | 600Ω / 6kΩ / 60kΩ / 600kΩ | 600Ω / 6kΩ / 60kΩ / 600kΩ | ±(0.8%+5) |
| 6MΩ / 60MΩ | 6MΩ / 60MΩ | ±(2.5%+5) | |
| Capacitance (F) | 60nF ~ 600nF ~ 600uF | 60nF ~ 600nF ~ 600uF | ±(4%+5) |
| 6000uF ~ 60000uF | 6000uF ~ 60000uF | ±(8%+5) | |
| Temperature (°C) | – | (-50°C ~ 1000°C) | ±(1.5%+4) |
| Temperature (°F) | – | (-58°F ~ 1832°F) | ±(2%+4) |
| FEATURES | |||
| Display Counts | 6000 | ||
| Auto Range | Auto | ||
| True RMS | ● | ||
| Continuity / Diode | ● | ||
| Continuity (Green LED) | ● | ||
| Power | AA 1.5V × 3 | ||
| Category Ratings | CAT III 600V / CAT II 1000V | ||
