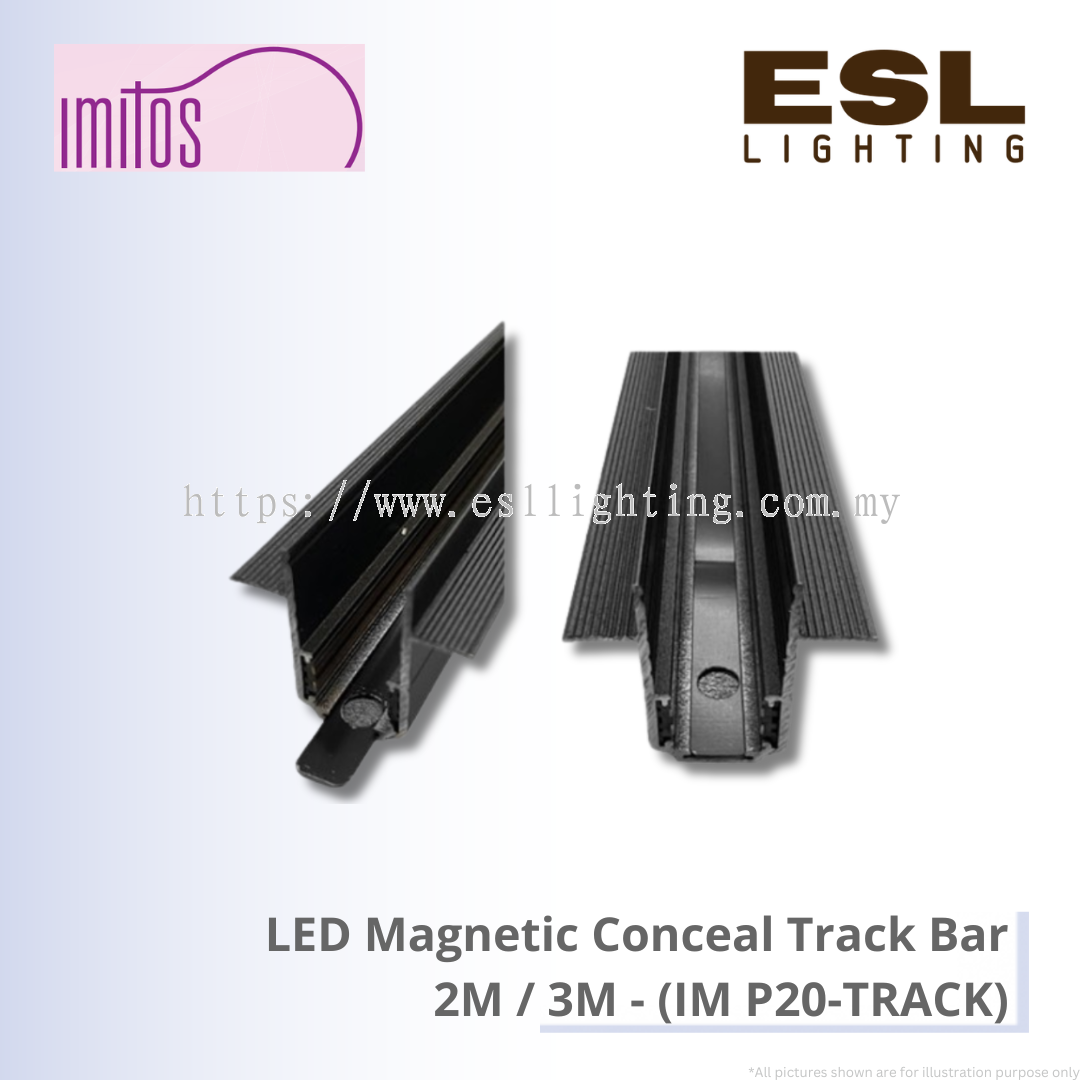

IMITOS LED Magnetic Track Bar 2M 3M P20 Black Rail
Elevate your interior design with the premium IMITOS LED Magnetic Conceal Track Bar (IM P20-TRACK), available in high-grade 2-meter and 3-meter architectural aluminium rails. Engineered specifically for contemporary low-profile plaster ceiling integrations in Malaysia, this ultra-minimalist, matte black (BK) surface/recessed channel utilizes a ultra-safe DC48V low-voltage internal infrastructure. The IMITOS P20 series allows seamless plug-and-play positioning, empowering homeowners, contractors, and interior designers across Malaysia to effortlessly snap, slide, and rearrange modular LED spotlights, linear floodlights, and pendant lights without complex rewiring or hiring local electricians.
Full Detailed Description:
Transform your residential layout or commercial showroom with the cutting-edge IMITOS LED Magnetic Conceal Track Bar 2M / 3M (Model: IM P20-TRACK). Traditional track lighting setups often feature clunky, exposed external tracks that disrupt the clean, continuous visual lines of modern plaster ceilings. The IMITOS P20 system resolves this by acting as a recessed, concealed linear profile that blends completely flat into your ceiling structure. Finished in premium architectural Matte Black (BK), it serves as a highly functional design asset that elevates the visual appeal of premium properties in Kuala Lumpur, Selangor, and throughout Malaysia.
Robust Aluminium Craftsmanship and Engineered Dimensions
Durability is critical when handling long-span track installations. The IMITOS IM P20-TRACK rail is entirely extruded from structural-grade Aluminium, providing structural rigidity that prevents twisting, bending, or warping over long lengths.
Robust Aluminium Craftsmanship and Engineered Dimensions
Durability is critical when handling long-span track installations. The IMITOS IM P20-TRACK rail is entirely extruded from structural-grade Aluminium, providing structural rigidity that prevents twisting, bending, or warping over long lengths.
-

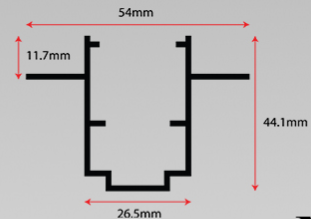

Profile Footprint: It features an external width profile of 54mm x 44.1mm, striking the balance between visual minimalism and robust modular volume capacity.
-
Flush Plaster Cut Size: Engineered specifically for precision plaster ceiling work, it accommodates a compact Ø 26.5mm cut size profile framework, ensuring a seamless aesthetic where the hardware recesses into the ceiling plane.
-
Available in versatile pre-cut lengths of 2 Meters (2M) and 3 Meters (3M), it easily scales to accommodate vast open-plan living rooms, sleek office spaces, retail boutiques, or high-end dining venues.
Maximum Safety with DC48V Low-Voltage Grid Integrity
When planning smart home installations, safety and reliability are paramount. The IMITOS P20 Track Rail Channel runs an integrated internal electrical copper strip carrying a low-voltage DC48V input grid. While your external power transformer connects securely to standard Malaysian 220-240V utility lines, the voltage inside the track itself remains completely safe to touch. This means you can freely reach up, pull out a light module, and snap it back down further along the track without turning off the master switch or risking severe electrical shocks. It delivers true dynamic layout control with peace of mind.
Ultimate Interior Flexibility: Snap, Slide, and Reconfigure
The true genius behind the IMITOS Magnetic Track system lies in its absolute spatial flexibility. Instead of relying on hardwired fixed spotlights, this track rail features internal magnetic properties that draw compatible P20 magnetic LED modules firmly into place, forming an instantaneous electrical circuit. If you rearrange your dining room furniture or change your retail floor display, you can simply slide your light bars or swap an ambient linear floodlight for a precise directional spotlight within seconds—no tools, no structural damage, and no contractor call-outs required.
When planning smart home installations, safety and reliability are paramount. The IMITOS P20 Track Rail Channel runs an integrated internal electrical copper strip carrying a low-voltage DC48V input grid. While your external power transformer connects securely to standard Malaysian 220-240V utility lines, the voltage inside the track itself remains completely safe to touch. This means you can freely reach up, pull out a light module, and snap it back down further along the track without turning off the master switch or risking severe electrical shocks. It delivers true dynamic layout control with peace of mind.
Ultimate Interior Flexibility: Snap, Slide, and Reconfigure
The true genius behind the IMITOS Magnetic Track system lies in its absolute spatial flexibility. Instead of relying on hardwired fixed spotlights, this track rail features internal magnetic properties that draw compatible P20 magnetic LED modules firmly into place, forming an instantaneous electrical circuit. If you rearrange your dining room furniture or change your retail floor display, you can simply slide your light bars or swap an ambient linear floodlight for a precise directional spotlight within seconds—no tools, no structural damage, and no contractor call-outs required.
Specification:
- Model: IM P20-TRACK
- Length: 2M / 3M
- Input: DC48V
- Color: BK
- Materials: Aluminium
- Size: 54*44.1mm
-
Cut Size: Ø 26.5mm
A: A DC48V system scales down high-mains electricity to a safe low-voltage level inside the track.
Q2: Can the IMITOS P20-TRACK rail be cut down to fit custom ceiling dimensions?
A: Yes. Because the track rail is made from architectural extruded aluminium, it can easily be cut down on-site using standard metal hacksaws or mitre saws by your ceiling contractor to fit your precise room layout dimensions before installation.
Q3: What cut size is required for installing the recessed IMITOS LED Magnetic Track Bar?
A: The IMITOS IM P20-TRACK requires a precise ceiling frame profile/cut-out channel width matching its inner installation dimensions, ideally utilizing a Ø 26.5mm base structural spacing depth standard for a flush plaster ceiling look.
Q4: Do I need an external transformer or driver to use the IMITOS Magnetic Track Bar in Malaysia?
A: Yes. Since standard Malaysian household power grids supply 220V–240V AC and the track requires a low-voltage DC48V input, an external DC48V magnetic track power transformer is required to convert the electrical incoming lines safely.
Q5: What lighting modules are compatible with the IMITOS IM P20-TRACK?
A:This track rail is fully compatible with the IMITOS P20 series magnetic light fixtures, including P20 linear accent light bars, track spotlights, folding eyeball modules, and dynamic hanging pendant track modules.
Q6: Can I connect multiple 2M and 3M IMITOS track bars together to form longer linear light lines?
A:Yes. You can form continuous linear configurations or L-shapes by joining multiple track bars using specialized IMITOS P20 structural joint clips and internal copper track rail conductors.
Q7: Is the IMITOS magnetic track rail suitable for surface mount installation?
A:While the conceal series is heavily optimized with side wings for a recessed, hidden appearance inside plaster ceilings, it can be mounted flush or adapted via specific profile casings depending on your interior design requirements.
Q8:Why should I choose aluminium magnetic tracks over cheaper plastic options?
A:Aluminium tracks offer excellent structural stability, preventing sagging over continuous 2M or 3M spans. Furthermore, the aluminium housing acts as an additional passive heat sink to help dissipate warmth from hot running LED drivers, extending light life spans.
Q9: Where can I buy original IMITOS track lights and rails with local warranty in Malaysia?
A: Authentic IMITOS smart lighting and architectural track fixtures can be purchased through authorized local Malaysian lighting distributors, select professional electrical retail outlets in Selangor/KL, or direct verified e-commerce lighting stores.
Q10: Can the IMITOS Magnetic Track light system work with smart home systems like Tuya or Google Home?
A: Yes. When paired with the specialized IMITOS Oritz Smart AI Bluetooth modules or smart dimmable DC48V drivers, you can fully control brightness, scenes, and scheduling using applications like Tuya Smart, Apple HomeKit, or Google Assistant.
