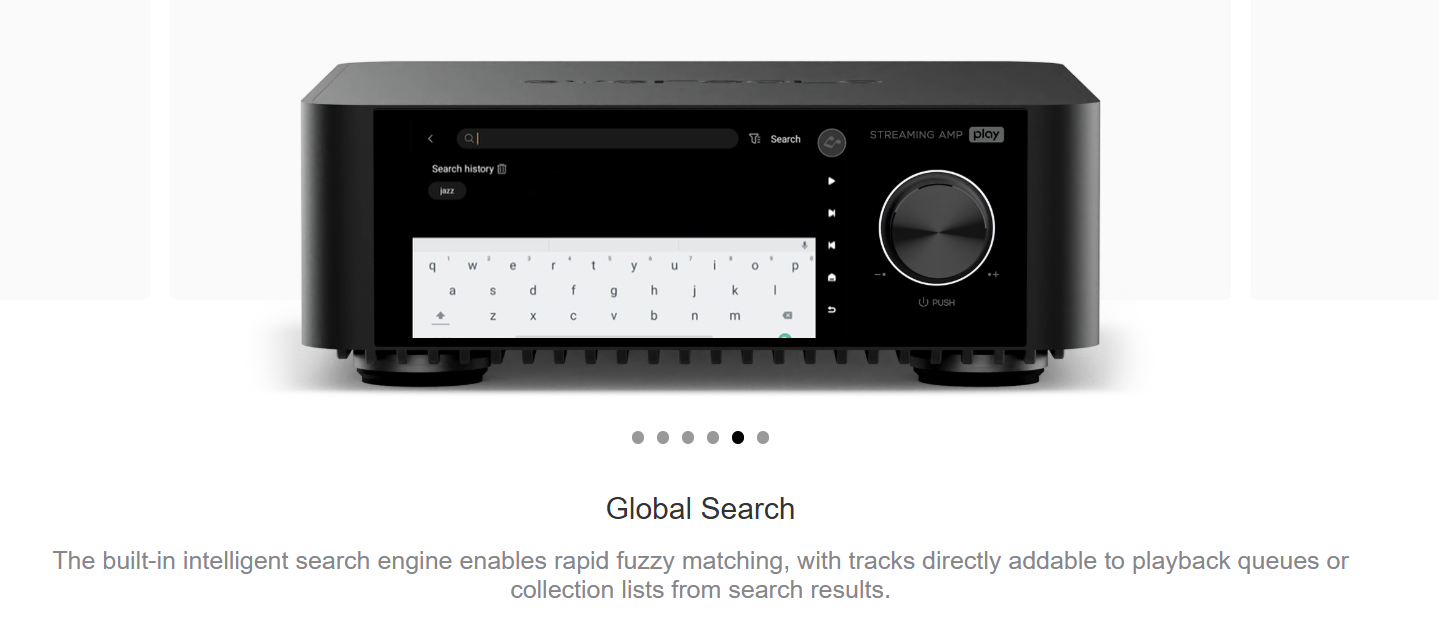

Eversolo Play Streaming Amplifier

Play

Body Material
Aluminium alloy

Display
5.5'' LCD Touchscreen

CD-ROM
No - Only the CD Edition includes a CD-ROM

DAC
AK4493SEQ

Internal Memory
4G DDR4 + 32G eMMC

USB Ports
2 x USB3.0

Ethernet
RJ-45(10/100/1000Mbps)

WiFi
2.4G+5G

DAC Decoding
Supports up to Stereo DSD512, PCM 768KHz 32Bit

Music File Formats
DSD (DSF, DFF, SACD ISO) Support DST up to DSD512, MP3, APE, WAV, FLAC, AIF, AIFF, AAC, NRG, CUE

Music Services
TIDAL, Qobuz, HIGHRESAUDIO, Amazon Music etc

Music Streaming
Roon Ready, TIDAL Connect, DLNA etc Qobuz Connect

Control Methods
On-screen touch control, Android/iPhone/iPad APP control

Audio Input and Output

Bluetooth Input
Bluetooth BT5.0, SBC/AAC

HDMI ARC Input
Supports up to Stereo PCM 192KHz 24Bit

Optical/Coaxial Input
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Analog Line In
Maximum input voltage 2VRMS

PHONO Input
Supports MM/MC

USB Audio Output
Supports up to Stereo DSD512 Native and PCM 768KHz 32Bit (Supports DAC audio devices with UAC standard only)

Coaxial Output
Supports up to Stereo PCM 192KHz 24Bit and DOP64

Subwoofer Output
Adjustable crossover frequency from 40 Hz to 500 Hz

Audio Characteristics

Continuous Output Power
60W RMS@8Ω 110W RMS@4Ω

Amplifier Type
Class D Amplifier

Amplifier Gain
20.8dB

Input Sensitivity
2V

THD (20Hz-20KHz)
<0.0037% 5W at 1KHz

Signal-to-Noise Ratio
>109dB, @A-wt 4Ω 110W

Frequency Response
20Hz-20KHz < ±0.25dB, 20Hz-40KHz < -3dB

Damping Factor
>107

Channel Crosstalk
<-108dB

PHONO
• Amplifier gain: MM 60dB MC 74dB
• Input sensitivity: MM 5mV MC 0.5mV
• RIAA: ±0.5dB, 20Hz-20KHz

Other Information

PSU
AC 110~240V 50/60Hz Max 4A

Dimensions (W x D x H)
230 x 230 x 75 mm

Weight
2.6kg

Packing List
• Power Cable
• User Manual

Colour
Black
