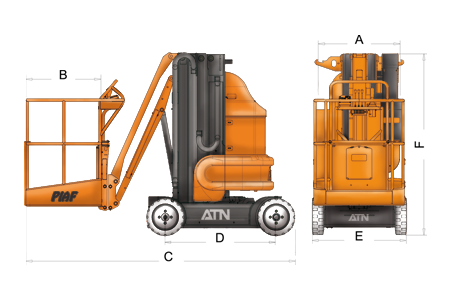

CHARACTERISTICS OF THE MAST BOOM LIFT PIAF 880R
ADVANTAGES OF PIAF 880R
• Efficiency thanks to the 2 x 110° rotation of the top.
• Smooth operating thanks to the hydraulic joystick.
• Easy to maintain.
• Outstanding operating range (high-capacity battery).
• Designed and manufactured for heavy-duty use.
STANDARD FEATURES
• Non-marking rubber tyres.
• Progressive hydraulic joystick transmission.
• Driving operated by a hydraulic joystick.
• 575 Ah 24 V centralized battery filling system.
• 85 A battery charger.
• 3 drive speeds.
• Lifting facilities.
• Emergency hand-pump.
• Battery indicator with 80% discharge cut-off.
• Tilt indicator with buzzer.
• Overload sensor.
• Hour meter.
• Strong large size platform.
OPTIONS
• Air line to platform.
• 220V AC power to platform.
• Automatic power cut-off if tilt value >2°.
• Flashing light.
• Motion alarm.
• Special paint colour(s).
| Working height | 8,80 m |
| Platform height | 6,80 m |
| Horizontal reach | 3,36 m |
| Lift capacity (indoor, 2 persons, no wind) | 200 Kg |
| Lift capacity (outdoor, 1 person, wind <28 mph) | 120 Kg |
| Turntable rotation | 2x110 ° |
| Platform width | 0,90 m |
| Platform length | 0,80 m |
| Length | 2,82 m |
| Wheelbase | 1,20 m |
| Width | 1,03 m |
| Height - stowed | 1,98 m |
| Drive speed - stowed | 4,8 Km/h |
| Drive speed - raised | 1,0 Km/h |
| Gradeability - stowed | 20 % |
| Maximum tilt value | 2 ° |
| Weight | 2600 Kg |
| Max.ground bearing pressure | 824 kN/m² |
