Transform your factory with the efficiency-improving, space-saving ERC3 ROBO Cylinder®.

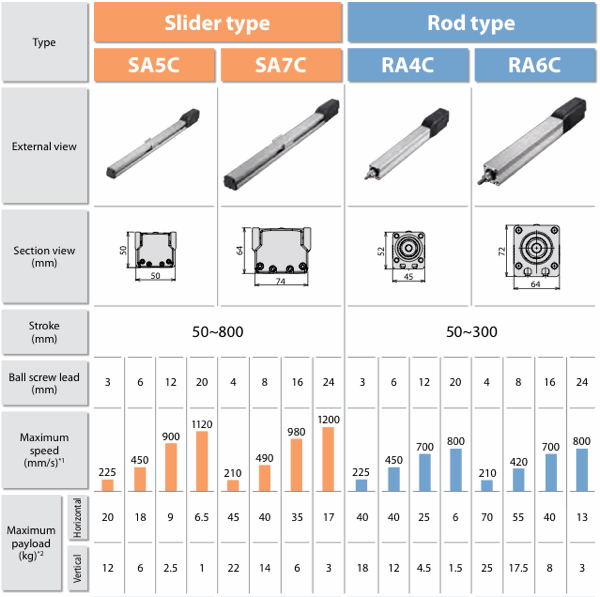

The product lineup of IAI’s ERC3 series with built-in controller.
(Notes) All of the values shown above assume that the high-output setting is enabled.
*1. The maximum speed may not be reached when the stroke is shorter. Also note that the longer the stroke, the lower the maximum speed becomes in order to avoid reaching a dangerous speed. For details, refer to the specification page of each model.
*2. The maximum payload is based on operation at the rated acceleration. The higher the acceleration, the lower the maximum payload becomes. For details, refer to the table of payloads by acceleration on p.26.
*1. The maximum speed may not be reached when the stroke is shorter. Also note that the longer the stroke, the lower the maximum speed becomes in order to avoid reaching a dangerous speed. For details, refer to the specification page of each model.
*2. The maximum payload is based on operation at the rated acceleration. The higher the acceleration, the lower the maximum payload becomes. For details, refer to the table of payloads by acceleration on p.26.
Ubah pabrik Anda dengan ERC3 ROBO Cylinder® yang meningkatkan efisiensi dan menghemat ruang.
Jajaran produk seri ERC3 IAI dengan pengontrol internal.
(Catatan) Semua nilai yang ditunjukkan di atas mengasumsikan bahwa pengaturan output tinggi diaktifkan.
* 1. Kecepatan maksimum mungkin tidak tercapai ketika stroke lebih pendek. Juga perhatikan bahwa semakin lama pukulannya, semakin rendah kecepatan maksimumnya untuk menghindari mencapai kecepatan berbahaya. Untuk detail, lihat halaman spesifikasi masing-masing model.
* 2. Muatan maksimum didasarkan pada operasi pada akselerasi terukur. Semakin tinggi akselerasi, semakin rendah payload maksimumnya. Untuk perincian, lihat tabel muatan dengan akselerasi pada hal.26.
