FXS Series - Compact Digital Counter/Timers

Main Features
* Counting speeds: 1 cps / 30 cps / 2 kcps / 5 kcps

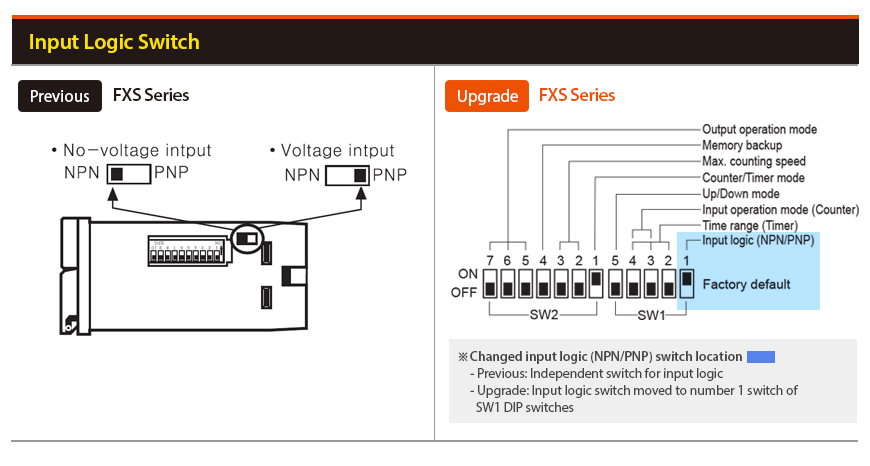

* Switch between counter and timer operation using DIP switch

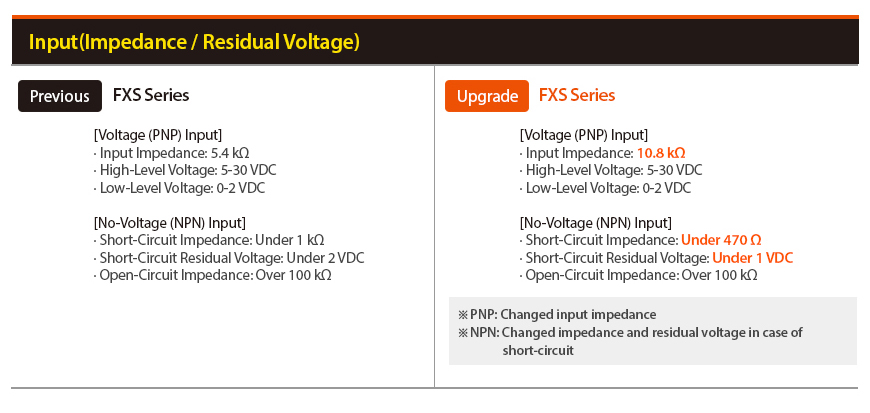

* Switch between voltage input (PNP) and no-voltage input (PNP) using DIP switch
* Operation modes: count-up, count-down, count-up/down

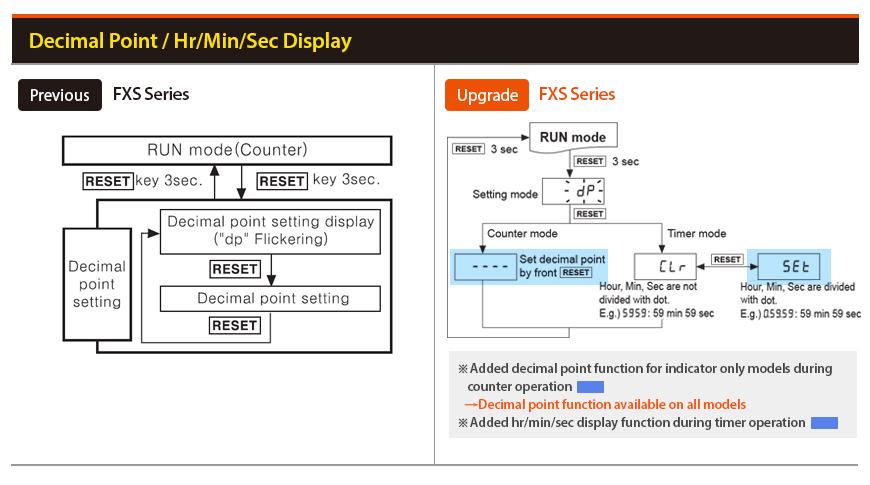

* Set decimal point, hr/min/sec display with RESET key
[Counter]
* 20 input modes, 18 output modes
[Timer]
* Various output modes (16 output modes)

Various time setting ranges:

 - 5-digit models: 0.01 sec to 9999.9 hr

 - 4-digit models: 0.01 sec to 9999 hr

* Output model types: single preset, indicator only

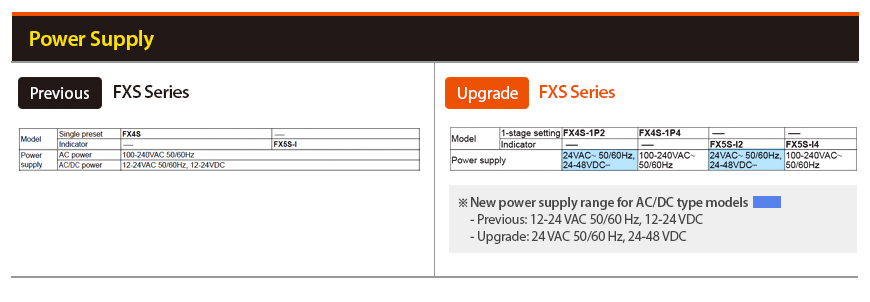

* "Power supply: 100-240 VAC 50/60 Hz (AC type)24 VAC 50/60 Hz, 24-48 VDC (AC/DC universal type)"
