Part Status Active
Type Molded Body Reed
Circuit SPST-NO
Operate Range -
Release Range -
Current - Switching 300mA (AC/DC)
Voltage - Switching AC 30 V
Voltage - Switching DC 30 V
Power - Rated 3W
Operate Time 0.2 ms
Release Time 0.15 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Length - Overall 0.272'' (6.91mm)

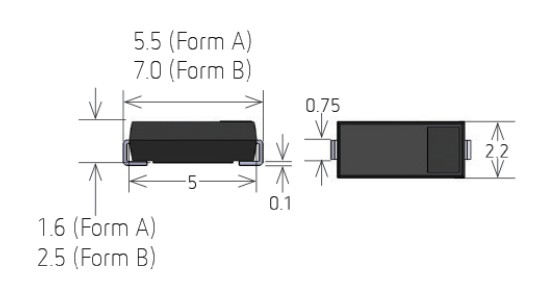

Size - Body 0.197'' L x 0.087'' W x 0.067'' H (5.00mm x 2.20mm x 1.70mm)
Height Above Board 0.071'' (1.80mm)
Operating Temperature -40°C ~ 130°C
Capacitance 0.1 pF
Current - Carry 500mA (AC/DC)
