SSA-D is equipped with a touching screen. It‘s visual and easy to operate. Adjustable pressure and holding time stage setting meets different test requests of various products.
Specifications
- Measuring range: 0 to16.00bar
- Resolution: 0.01 bar
- Testson bottles,cans andpreforms
- AT2E patent special needle
- Touching screen display
- Units:bar /Psi
- Stainless steel secured device
- Setting of the level of pressure (regulator)· 2 stages of pressure and holding time setting
- Resistant toexplosions
- Setting maximumpressure: 16 bar
- Compatiblewithtypical screwed needles
- 5-8 barpressure source for vacuum function· 0-16 bar pressure source for testing
- Overall size: 390(L) x 550(W) x 750(H) mm
- Net weight: 30 kg
.jpg)

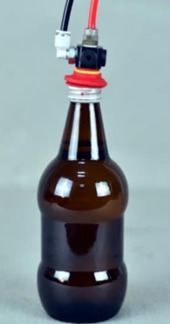

AT2E Patent Needle
.jpg)
AT2E Patent Needle
.jpg)

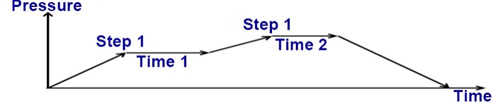

Testing Curve
Optional parts
- 3 stages of pressure and holding time setting
- Cutting tool for cap test
- Cap holder
- Bottle support

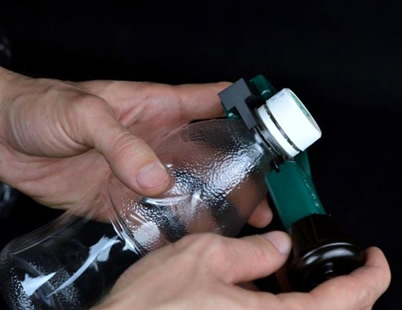

Cutting Tools

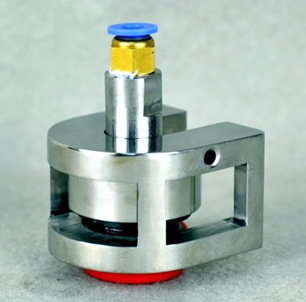

Cap Holder
.jpg)

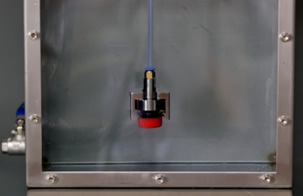

Cap Test

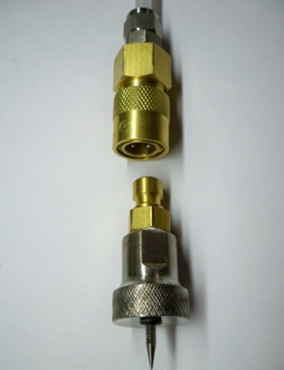

Typical Screwed Needle

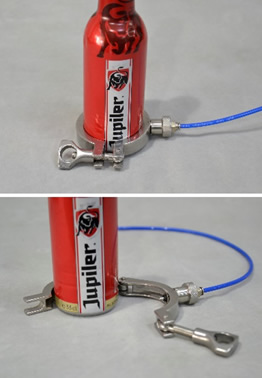

Bottle Can Needle

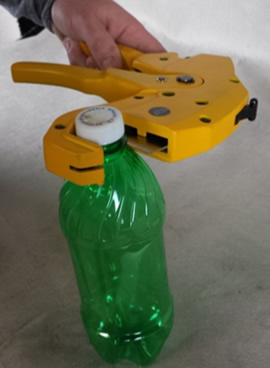

Quick Cutting Tools

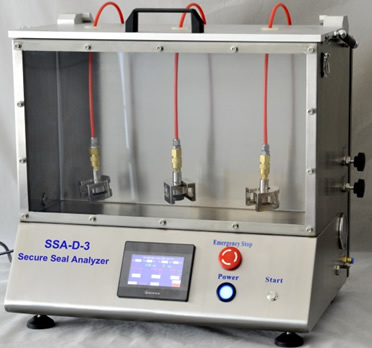

Optional 3 Position Model: SSA-D-3
