Overhead Multi-Outlet Connection Block (8-Way)

This Overhead Multi-Outlet Connection Block or Overhead Single-pole Block allows one conductor to be distributed into 8 outlets. Using two blocks enables up to 8 single-phase connections. Each block includes an identification plate to distinguish connected conductors and can be installed on a façade or pole.


      General Features & Benefits:

• Provides 8 secure single-phase connections in one block.

• Terminals made of tinned aluminium, suitable for copper or aluminium conductors.

• Insulation piercing technology for easy and reliable installation.

• Accessible terminals for test probes to check potential.

• Inlets equipped with elastomer seal sockets for watertight protection.

• Number plate system to easily identify phases and neutral (N/1/2/3).

• Shear-head tightening screws (network: aluminium H17; service: tinned steel H10).

• Optional corrosion-resistant metal fixing plate, rigid for uneven surfaces.

• Protection rating: IP33.

• Live-line installation possible (no load on tap conductor).

• Complies with HN 62-S-33 and EN 50483-5 standards.

Key Advantages:

• Simplifies network connections and reduces connector count.

• Prevents “spiderweb” cabling, keeping networks clean and organised.

• Enhances fraud prevention and strengthens network reliability.

• Improves durability against corrosion and humidity.

• Ensures fitter safety by limiting electric shock risk.

• Modular design for flexible connection needs.

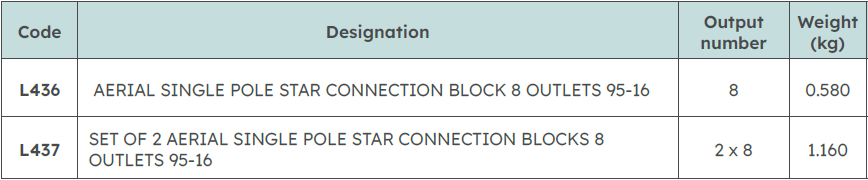

Reference:
