PA30 Series Compact Smart Meter
Product Description
PA30 series are designed for general single phase or poly phase power measurement, with wide range. It can be applied either on low voltage primary side or medium/high voltage secondary side for its high accuracy (<1%, IEC62053-21) under 5A current. PA30 equipped with clip-on CT, standard communication, small size and low cost.
Features
- True RMS energy and power parameters measurement in compact size
- Clip-on CT, easy wiring for on-line installation
- Wild range of measurement with various size of CT, up to 200A(24 Φmm)
- Wh accuracy better than 0.5%(pf =1)
- RS485 communication support Modbus protocol
- Support Lon Talks (option)
Specification
| Input V |
PA34：10-300V PA33：10-500V |
||
| Input I | CT Φ10mm （60A）， CT Φ16mm（100A）、CT Φ24mm（ 200A） | ||
| Aux Power | DC 10-30V | ||
| Frequency | 60/50Hz | ||
| Starting I | <0.025A | ||
| Wiring diagram |
PA34：1-phase 4-channel PA33：Auto or manal setting 1P2W-1CT、1P3W-2CT、3P3W-2CT、3P3W-3CT、3P4W |
||
| Power Parameters Measures |
|
||
| Communication |
RS485, half duplex isolated Baud Rate：9600, 19200(default), 38400 Protocol：Modbus LonTalk：(option) |
||
| kWh Accuracy | 0.5%(PF=1)，better than IEC62053-21 | ||

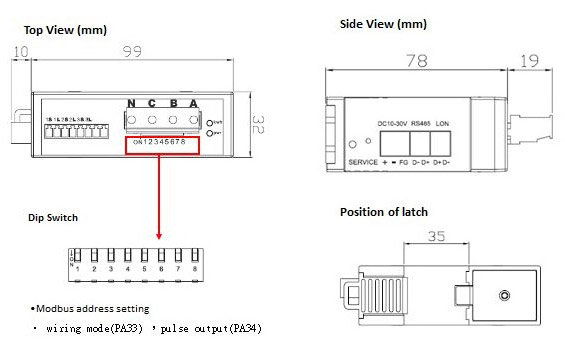

| Size | 78(L) × 35(W) × 99(H) mm | ||
| Operation Temp | -10℃~60 ℃ | ||
| Installation | Rail-mounted |
Panel Mounted / Energy Values / Circutor / Electric Parameters / Low Voltage / ARON Connection / Backlit LCD SCREEN / Multifunctional multimeter. PA33 from Saturn Pyro is the best available in Malaysia. High performance and cost effective Power Energy Meter which is suitable for Low Voltage installations, in both 3 and 4-wire three-phase circuits, two-phase circuits with or without neutral, single-phase circuits or ARON connections.. Available in Penang, KL, Selangor, Johor, Sabah, Sarawak & anywhere in Malaysia & Singapore.
