ZYS-122AE
ZYS-126E
ZYS-135EThe Characteristics of Single-color Inkcup Pad Printer

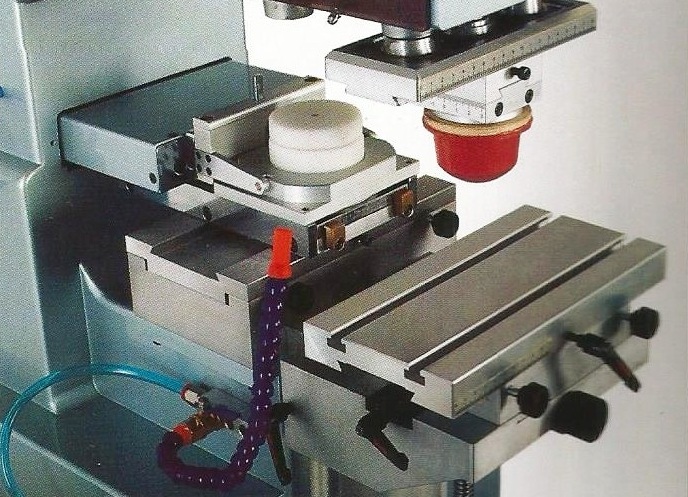

Machine of this series adopts single-color ink-saving inkcup, PIC control. Independent pad up/down stroke and speed adjustable, worktable is adjustable in X, Y, Z and angle directions. Famous for their characteristic like wide application, high printing efficiency, economical and easy operation, they can be widely applied to print electronic products, home appliances, hardware, plastics, toys and stationery, satisfying customers’ various printing requirements (flat, curve, irregular surfaces printing)
Ink Mode:
Adopts imported ceramic ring, sealed ink cup can maximally reduce ink waste and the evaporation of the smell. Ink can be stored in the cup for a long duration with stable viscosity. It’s famous for being economic and environment-friendly.
| Model | Inkcup (mm) | Cliche Size (mm) | Printing Area (mm) | Max. Print (h) | Cycle/hour | Power (w) | Dimension (lwh) in mm | Weight (kg) |
| ZYS-122AE | Փ86 | 100X200 | Փ75 | 280 | 1600 |
Single-phase 110V / 220V 50HZ / 60 HZ 20W 6Bar |
770X580X1400 | 110 |
| ZYS-126E | Փ135 | 150X300 | Փ120 | 300 | 1500 | 920X630X1450 | 160 | |
| ZYS-135E | Փ135 | 150X350 | 110X350 | 300 | 1000 | 1170X800X1690 | 385 |
