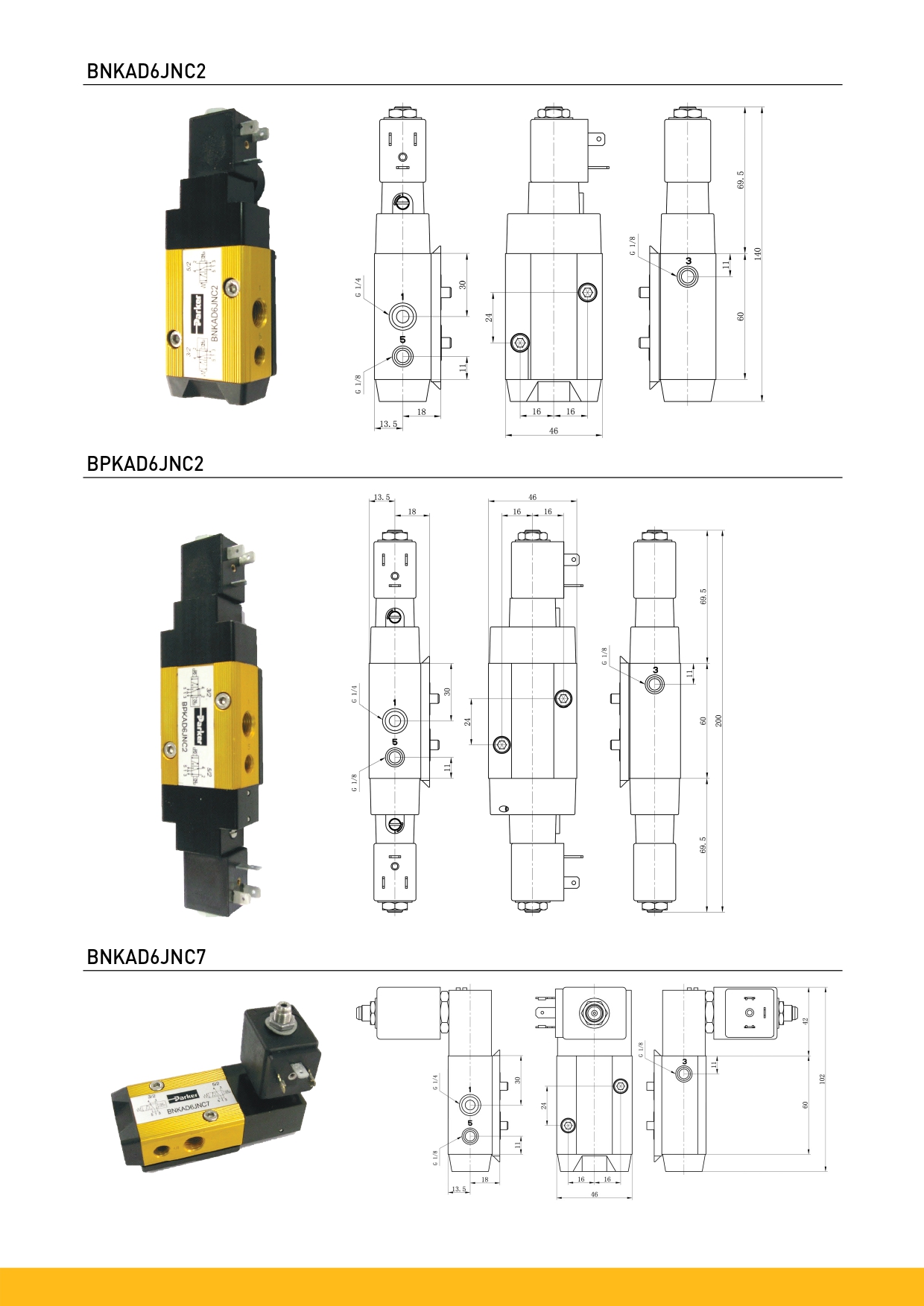

PARKER BNKAD6JNC2 3/2 NAMUR SOLENOID VALVE

Model: BNKAD6JNC2

Function: 3/2 way, pilot operated, spring return

Port/Orifice: ¼″ G / 4 /mm

Flow: ~600 /L/min (¼ /Cv)

Pressure Range: 2–10 /bar

Temperature Range: −25 /°C to +80 /°C

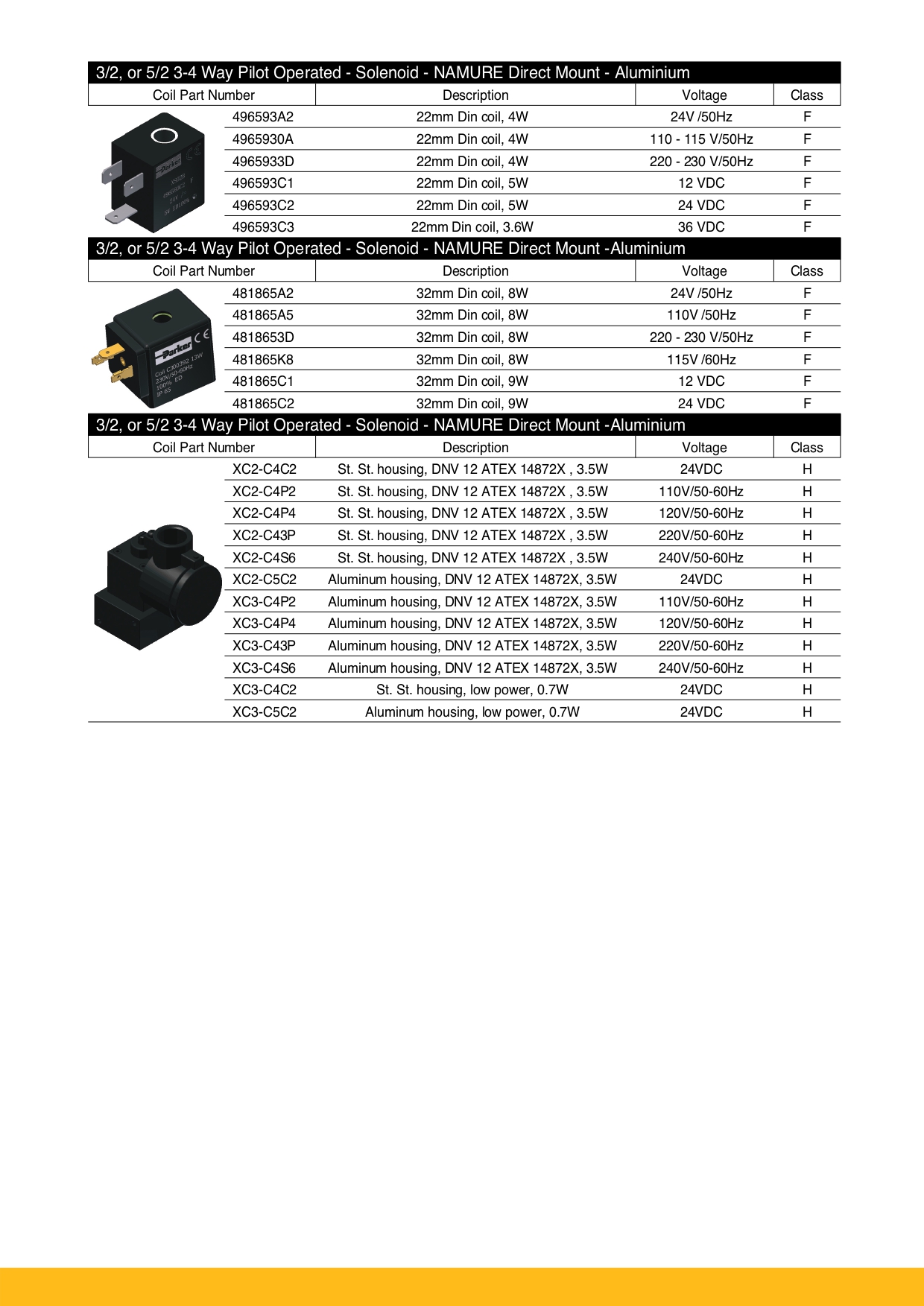

Coil: 22 /mm DIN, 4 /W (24 /V AC)

Mounting: NAMUR direct mount

Body: Anodized aluminum
