Coherent Finisar FTLF8519F2xCL FTLF8519F2xNL FTLF8519F2xTL
2.125 Gb/s RoHS Compliant Short Wavelength 2x5 SFF Transceiver
FEATURES
• Up to 2.125 Gb/s bi-directional data links
• Standard 2x5 pin SFF footprint (MSA compliant)
• 850nm Oxide VCSEL laser transmitter
• Duplex LC connector
• RoHS compliant and Lead Free
• Up to 500m on 50/125μm MMF, 300m on 62.5/125μm MMF
• Metal enclosure, for lower EMI
• Single 3.3V power supply
• Low power dissipation <750mW
• Commercial operating temperature range: 0°C to 70°C. Extended operating temperaturerange: -10°C to 85°C. Industrial operating temperature range: -40°C to 85°C
APPLICATIONS
• 1.25 Gb/s 1000Base-SX Ethernet
• Dual Rate 1.063/2.125 Gb/s Fibre Channel

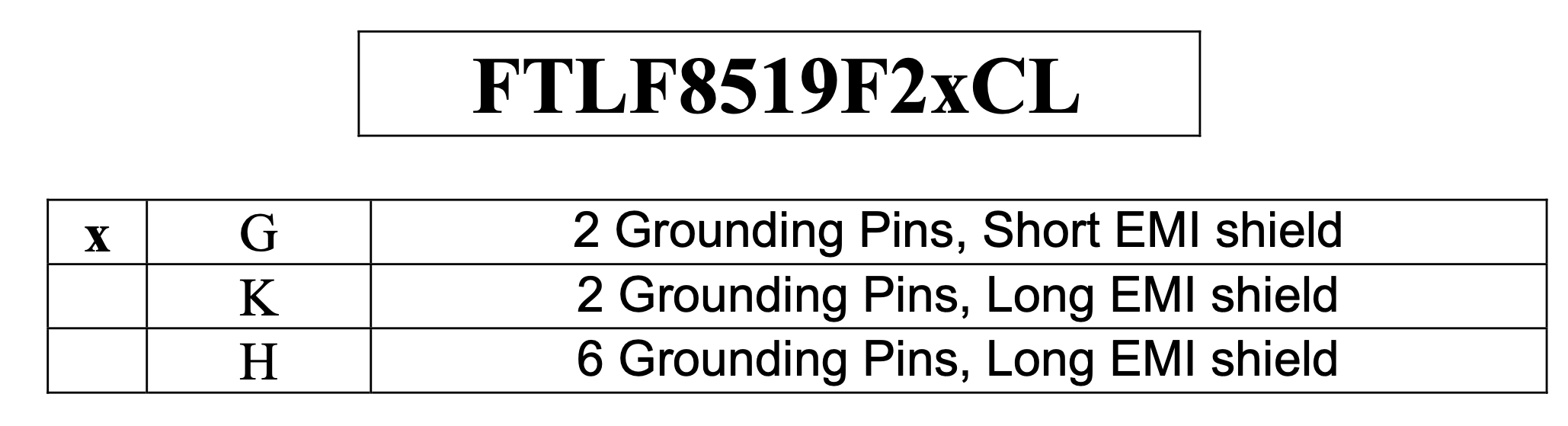

PRODUCT SELECTION
.png)
