FEATURES
ENGINE 155CC LC4V
WITH VVA
Powered by a 155CC Single Overhead Cam (SOHC) fuel injection engine with VVA technology for more optimal power performance.
ASSIST AND SLIPPER CLUTCH
Assist and slipper clutch is adopted to reduce the weight of the clutch pull and provide low-stress shifting during deceleration. It provides a smoother ride, the gear shift is lighter and the quicker acceleration.
ASSIST AND SLIPPER CLUTCH
Assist and slipper clutch is adopted to reduce the weight of the clutch pull and provide low-stress shifting during deceleration. It provides a smoother ride, the gear shift is lighter and the quicker acceleration.

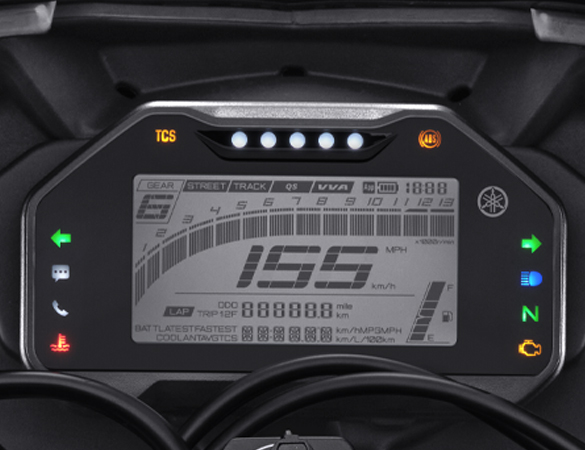

FULL LCD DIGITAL METER
INSPIRED BY YAMAHA YZR-M1
Features a full LCD digital display, complete with STREET mode and TRACK mode.
.jpg)
LED TAIL LIGHT
LED technology provides brighter lighting with better energy savings and longer lasting.

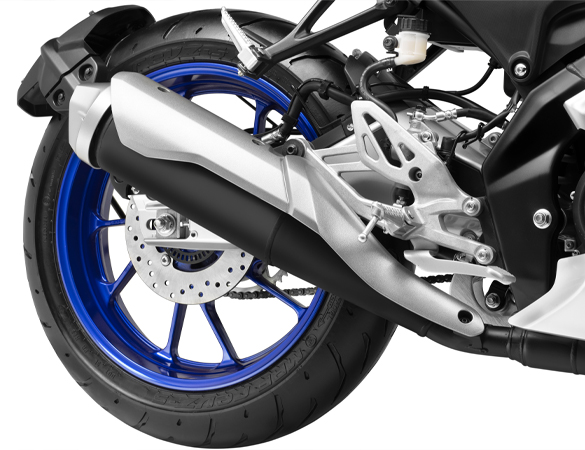

WIDER REAR TYRE
This tyre combination enhances maximum grip during cornering and provides greater confidence.
| ENGINE | ||
| Engine Type | Liquid Cooled, 4-Stroke, SOHC, 4-Valve, VVA | |
| Cylinder Arrangement | Single Cylinder | |
| Displacement | 155CC | |
| Hole x Stroke | 58.0 x 58.7 mm | |
| Compression Ratio | 11.6:1 | |
| Maximum Power | 14.2 kW/10000 rpm | |
| Maximum Torque | 14.7 Nm/8500 rpm | |
| Lubrication | Wet Reservoir | |
| Starting System | Electricity | |
| Fill the Engine Oil Tank | 1.05 L | |
| Ignition System | TCI | |
| TRANSMISSION | ||
| Transmission Type | 6-Speed Manual | |
| Clutch Type | Wet, Multiple, Assist & Slipper Clutch | |
| CHASIS | ||
| Frame Type | Deltabox | |
| Overall Length | 1,990mm | |
| Overall Width | 725mm | |
| Overall Height | 1,135mm | |
| Seat Height | 815mm | |
| Minimum Distance from Ground | 160mm | |
| Wet Weight | 137kg | |
| Fuel Tank Fill | 11L | |
| BRAKES | ||
| Front Brake | Disc | |
| Rear Brake | Disc | |
| SUSPENSION | ||
| Front Suspension | Telescopic Fork (Inverted) | |
| Rear Suspension | Link Monoshock | |
| Tires | ||
| Front Tyre | 100/80 – 17M/C 52P | |
| Rear Type | 140/70 – 17M/C 66S | |
