Model : WL-600A-2


---

Features :

• WL 600A-2 heat shrinkable tube heating machine (double transmission without wire injured), especially suitable for wire harness processing enterprises to heat shrinkable tube processing needs, double-sided heating, omnidirectional reflection of hot materials to make the heat shrinkable tubes evenly heated.
• The heating temperature and conveying speed are stepless adjustment, which is suitable for any length of heat shrinkable tubes.



---

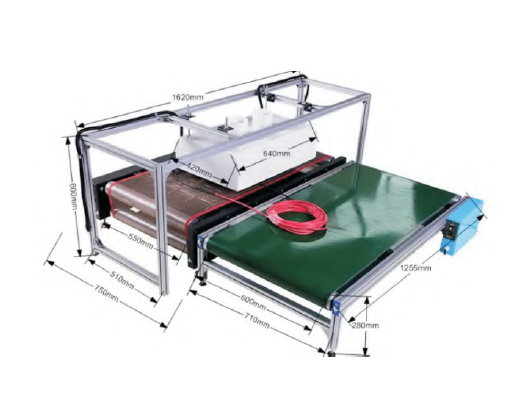

Dimensions :




---

Specifications :


Model	WL-600A-2	Parameter
Heater size	Overall machine size (L×W×H)	See picture
	Control power(L×W×H)	200×150×200mm
	Machinable maximum wire harness diameter	20mm
	Maximum heating width	150mm
	Heating area	See picture
	Cooling zone	200mm
	Maximum transmission width	550mm
	Maximum transmission height	40mm
Conveyor belt	Speed	1~3m/min
	Transmission of motor power	25W (Stepless speed regulation)
Heating pipe	Heating pipe name	Infrared tube
	Heating pipe power	400W.8 branches
	Power demand	220V
Power supply for heating machine	Power	3.4KW
	Overall machine size (L×W×H)	See picture (optional)
Auxiliary conveyor	Maximum transmission width	600mm
	Conveyer belt material	Rubber
	The power of motor	25W



---
