Features :


• Adopt box type linear bearing, which can adapt to dusty working environment.
• Easy and flexible operation. Able to work at any point of 360° in the working range.
• The support rod is made by hard chromium-plated steel bar which makes it very reliable, can keep smooth even after long time operation.
• The rigidity of support rod and swing arm is designed according to 4 times safety factor, high rigidity, very hard to deformation, and still keep high vertical in long-term use.
• Hanging block and limit block are easy to adjust, adjustable range more than 300mm which brings strong adaptability.
• Can be equipped with movable cast iron seat, no need to fix it on the table, easy to install.
• Simple structure, reliable rust-proof exterior parts, no need for special maintenance.
• Arm span, height, screwdriver clamping block(clip) can be customized.

---

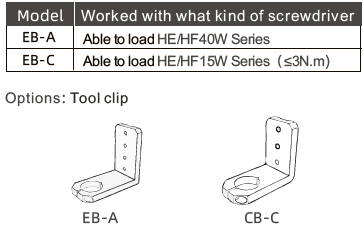

Accessories :





---

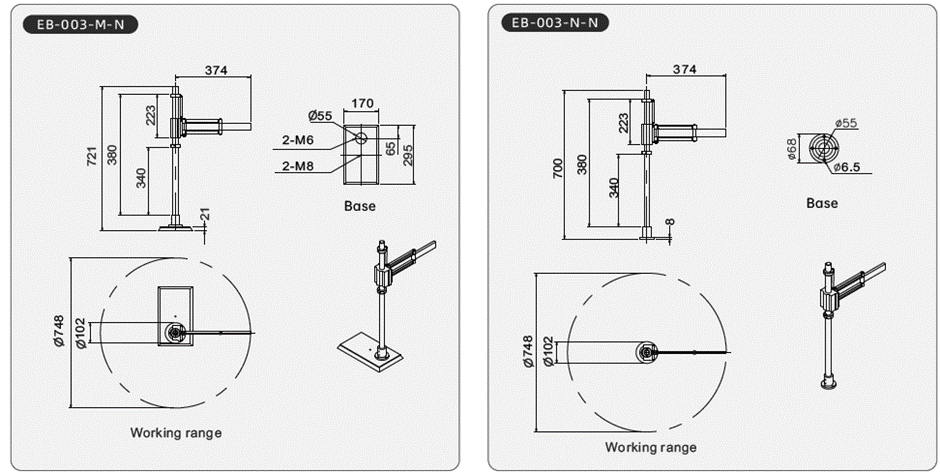

Dimensions :







---

Specifications :



Model	EB-003-(   )-(   )
Max. torque(N.m)	3
Max. tool weight (kg)	3
Max. arm length (mm)	374



---
