Curious About Solar System Components? Understand Like a Pro!
If you're considering installing a solar system, you’ve probably heard terms like panels, inverter, and mounting structure. But what exactly do these components do?
Here’s a simple, professional breakdown to help you truly understand how everything works together.
What is a Solar Photovoltaic (PV) System?
A Solar Photovoltaic (PV) System is a technology that converts sunlight into electricity. It consists of multiple interconnected components working together to provide clean and renewable energy for residential homes, commercial buildings, and factories.
In Malaysia, most properties install a grid-tied system, which is connected to the national utility grid (TNB). During the day, solar panels generate electricity for your usage, and at night, the system automatically switches to grid supply—ensuring a stable 24-hour power supply.

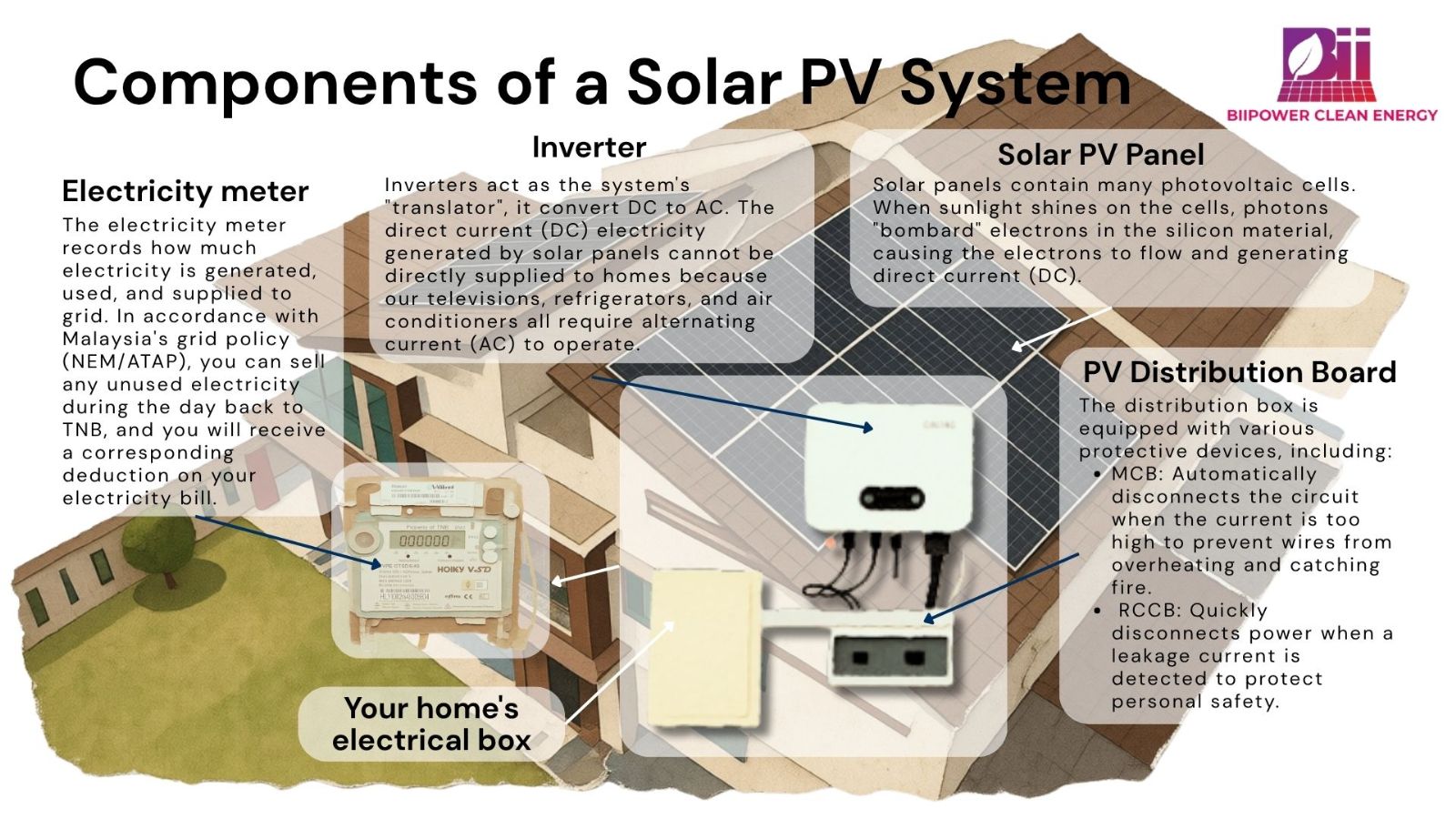

Core Components of a Solar PV System
A complete solar PV system is made up of several key components, each with a specific role:
1. Solar Panels (PV Modules)
These are the power generators of the system and the most visible part installed on your roof.
Solar panels are made up of photovoltaic (PV) cells, typically using silicon as a semiconductor material. When sunlight hits these cells, photons transfer energy to electrons, causing them to move and generate direct current (DC) electricity.
2. Inverter
The inverter acts as the system’s “translator.”
Electricity generated by solar panels is in DC form, which cannot be used directly by household appliances such as TVs, refrigerators, and air conditioners. The inverter converts DC into alternating current (AC), making the electricity usable.
Modern smart inverters, such as those used in advanced systems like Huawei FusionSolar, can also:
- Synchronize with the grid
- Improve power stability
- Enhance overall system efficiency
3. PV Distribution Board (DB)
The distribution board serves as the system’s “safety guard.”
It contains essential protection devices such as:
- MCB (Miniature Circuit Breaker): Cuts off power during overcurrent to prevent overheating or fire
- RCCB (Residual Current Circuit Breaker): Detects leakage current and shuts down power to protect users
These components ensure the system operates safely and reliably at all times.
4. TNB Meter (Net Meter)
The meter tracks:
- How much electricity is generated
- How much is consumed
- How much is exported back to the grid
Under Malaysia’s Net Energy Metering (NEM/ATAP) policy, excess energy generated during the day can be exported to TNB, allowing you to receive credits that reduce your electricity bill.
5. Monitoring System (Solarman-Smart App)
Most modern solar systems come with a monitoring platform or mobile app that allows you to track:
- Real-time power generation
- Total energy produced
- Estimated cost savings
- System performance and status
This gives you full visibility and control over your solar investment.
Summary
A solar PV system is more than just panels—it’s an integrated energy solution:
- Solar Panels → Generate electricity
- Inverter → Converts power into usable form
- Distribution Board → Ensures safety
- Meter → Tracks usage and export
- Monitoring → Provides real-time insights
