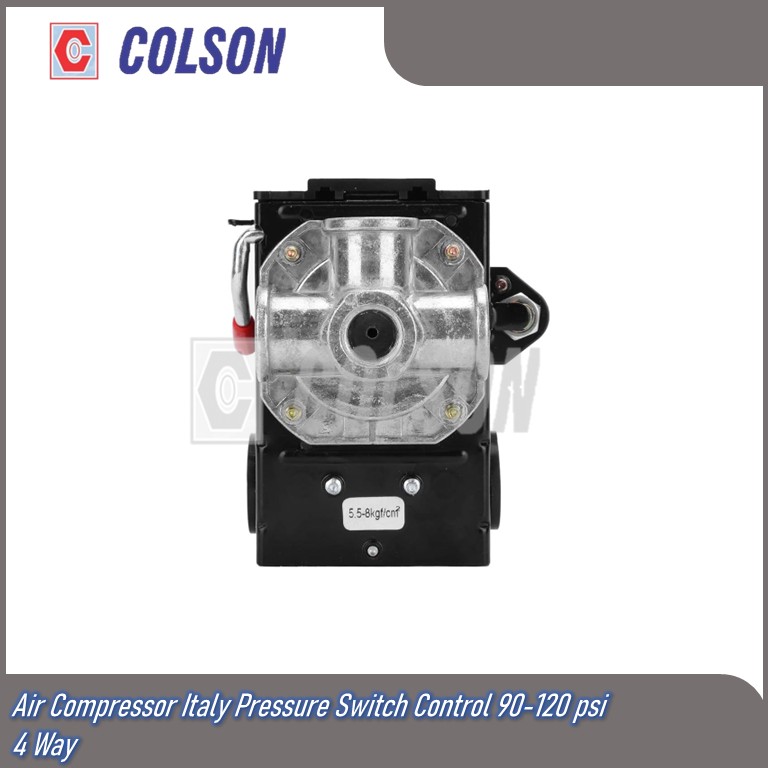

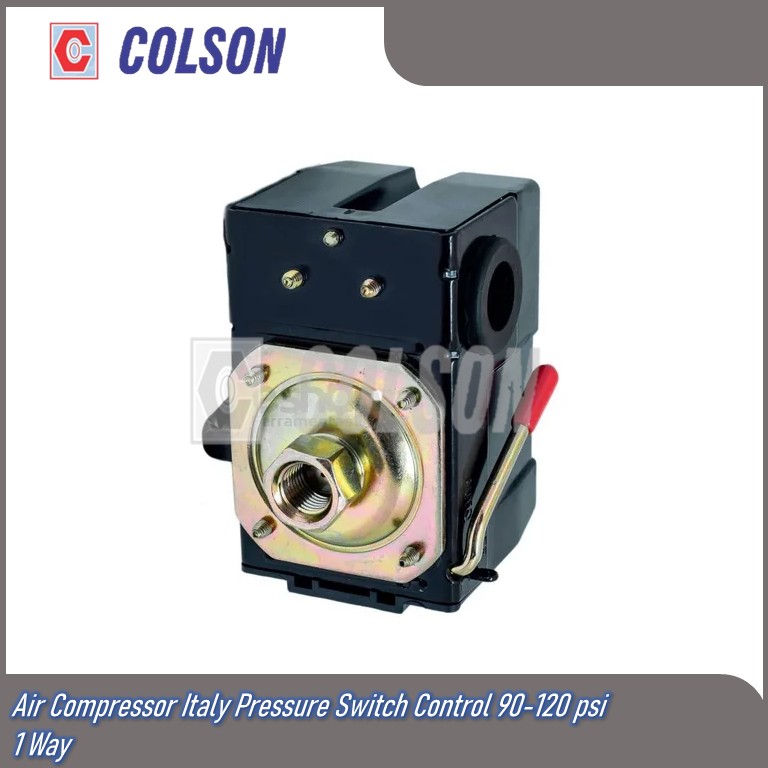

Italy Pressure Switch for Air Compressor 90-120PSI Air Compressor Pressure Switch Control 1 way/4 way

Suitable for 8bar pressure Air Compressor

Easy to install - c/w 2 pcs meter, regulator, pressure switch, safety valve

Features:

1. Red ON/OFF switch knob.

2. Auto control. Auto load/unload.

3. Maximum Voltage: 240V

4. Max AMP Rating: 20A

5. Pressure range: 90-120 PSI

   (Pressure lower than 90PSI, turn on the compressor. Pressure over 120PSI, turn off the compressor.)

6. 1 x Male Thread Dia: 21mm--1/2''NPT(to air compressor)

7. 2 x Valves Male Thread Dia: 13mm--1/4''NPT .

8. 2PC x 1-1/2'' Dia. Gauges: 0-180 Psi .

9. Air compressor valve case dimension(L x W x H): Approx. 82 x 82 x 52mm(3.2 x 3.2 x 2 inches)

Note:

1. The screw which bracket connected to the gas tank is 20MM 1/2'' external thread

2. Switch is 220V single-phase switch

3. The pressure gauge connected is 9.5MM 1/8'' thread,

4. The two venting Bama deflation valve is 12.5MM 1/4'' external thread, generally connected to the round tee or SF20 internal

   thread quick access

Package Included:

1 x 90-120PSI Air Compressor Pressure Switch Control.
