Overview

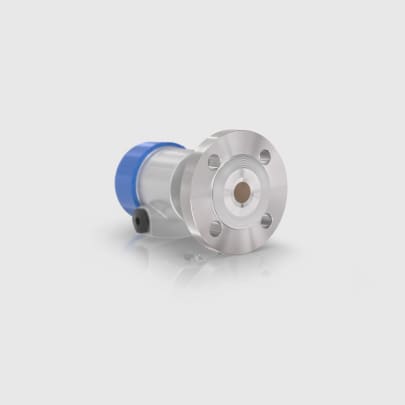

The OPTIBAR PC 5060 is a pressure transmitter for process pressure and hydrostatic level measurement in all kinds of process applications. It is designed for absolute and gauge pressure measurement in open tanks and – as dual version for electronic differential pressure measurement – also in closed vessels. The pressure device features a ceramic capacitive measuring cell that guarantees maximum overload and vacuum resistance for high plant availability.
Product features and options depend on device configuration: Contact us to make sure that your preferred functionality can be combined in one device.
- Modular design: converter platform for all applications
- Electronic differential pressure measurement
- Highest overload and vacuum resistance
- Wear-free measuring cell for less service and maintenance costs
- Extremely quick step response times <85 ms
- Various housing materials available: plastic, aluminium, stainless steel (precision casting or electro-polished)
- Quick setup for all applications
- Extensive diagnostic and parameterization functions on the display and adjustment module or the user-friendly and free DTMs
- Wireless device commissioning, verification and monitoring with the OPTICHECK Pressure Mobile app
- Ex ia, Ex d, Ex t approvals
- SIL 2/3 certified by TÜV Rheinland
Specifications
Depending on selected device configuration
General information
| Product type | Pressure transmitter |
| Product family name | OPTIBAR |
| Product positioning | For advanced pressure and level applications |
| Measurement principle | Hydrostatic |
| Measured media | Liquids, Gases, Steam |
| Measuring point | Open tank |
Operating conditions
| Process pressure |
max. 100 bar/ 1450 psi |
| Process temperature |
-40…+150°C/ -40…+302°F |
Materials
| Diaphragm | Ceramic (Al2O3) |
| Fill fluid | Dry measuring cell (without fill fluid) |
| Measuring cell seal | Ethylene propylene diene monomer (EPDM), Fluoroelastomer rubber (FKM), Perfluoroelastomer rubber (FFKM) |
Process connections
| Flange connections |
EN (1092-1): DN15…100 ASME (B 16.5): 1…4'' |
| Thread connections |
Male:
Female: |
| Hygienic adapters |
Clamp (DIN 32676): DN25, DN40, DN50 |
Approvals/Standards
| Certificates/Approvals Others | Oxygen, Pressure Equipment Directive (PED) |
| Certificates/Approvals Ex | ATEX, IECEx, NEPSI |
| Certificates/Approvals Hygienic | FDA, 3A, EHEDG, EC 1935/2004 |
| Certificates/Approvals Marine | CCS, DNV, GL, NK |
| Certificates/Approvals Safety | SIL 2/3 |
Communication
| Analogue outputs | 4…20 mA |
| Digital outputs | FOUNDATION™ fieldbus, HART®, Profibus-PA |
