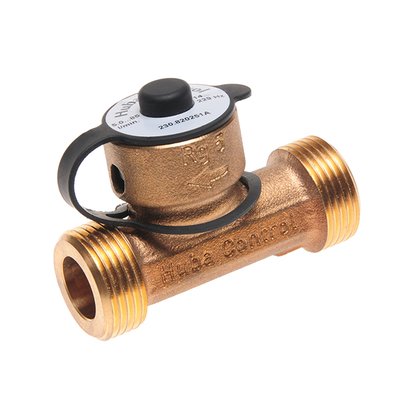

The flow sensor type 230 is based on the Kármán vortex street. You can choose between various versions as integrated temperature measurement.  The type 230 has a rugged construction of red brass. With no moving parts the flow sensor is not sensitive to debris, has marginal pressure loss and high accuracy.

Medium  : Fluides
Flow range  : 1.8 ... 150 l/min.
Nominal diameters  : DN 10 / 15 / 20 / 25
Output  : Frequency output 13 ... 480 Hz
               Analogue signal 0 ... 10 V, 4 ... 20 mAA
Temp. measurment  : PT1000
Electrical connection  : M12x1
Tube connection  : Red brass - outside thread

*Flow measuring with voltage, current, pulse or frequency output
*Excellent media resistance (measuring element not in contact with the media)
*Available with integrated temperature measurement
*Temperature non-sensitive measuring principle
*Wide application temperature range
*Marginal loss of pressure
*Measuring element not sensitive to debris
*Drinking water approval
