MIMO OFDM Technology

The CableFree 3.5GHz range of radios are an extension of our range of 5GHz band radios, with technology to offer connectivity in licensed spectrum bands.

CableFree 3.5GHz MIMO Radio Products

CableFree HPR-MIMO: Connectorised 3.5GHz MIMO radios
 PDF Datasheet

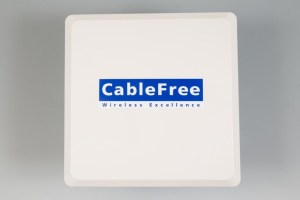

CableFree IHPR-MIMO: Integrated antenna 3.5GHz MIMO radio – High Gain
 PDF Datasheet

CableFree ICR-MIMO: Integrated antenna 3.5GHz MIMO radio – Lower Gain
 PDF Datasheet

Topologies

The following topologies are fully supported with CableFree MIMO OFDM radios, which gives superior flexibility in network implementation:

• Point to Point (P2P, PTP)
• Point to Multipoint (P2MP, PTMP)
• Mesh (Long and short range Mesh capability)

MIMO Radio Antennas for 3.5GHz (3.3-3.8GHz)

3.5GHz Parabolic antennas:

High Gain 3.5GHz Parabolic 25dBi (60cm, 2ft)
 PDF Datasheet

High Gain Parabolic 28dBi (90cm, 3ft)
 PDF Datasheet

3.5GHz Sector Antennas

MIMO 2×2 Sector Antennas (18dBi, 90 degrees, 3300MHz up to 3800MHz)
 PDF Datasheet

3.5GHz Flat Panel Antennas

MIMO 2×2 Flat Panel Antennas (23dBi)
 PDF Datasheet

Comparison of 3.5GHz MIMO OFDM and 3.5GHz 4G/LTE Technology

Note that 3.5GHz MIMO OFDM radio technology is different to 3.5GHz LTE (4G) technology, which CableFree also offer in the CableFree LTE product range.

• 4G/LTE is optimised for longer range, non-LOS, mobility & roaming.  Conversely:
• MIMO OFDM radios offer symmetric up/down bandwidth, P2P, P2MP and Mesh modes, and lower cost base stations.
