Brand: KDS
Model: KT-1825
Production Introduction:
KT-1825multifunction calibration tools designed to calibrate almost anything. These calibration tools source and measure almost all process parameters. It can measure and source resistance, current, frequency, thermal resistance, thermocouple and these second instrument etc.
Features :
- Accuracy: 0.05% Rdg
- A split-screen display. The upper display allows you to measure volts, current (with loop power), resistance and continuity test. The lower display allows you to measure and source volts, current, resistance temperature detectors (RTD), thermocouples (TC), frequency, and ohms.
- Calibrates a transmitter using the split-screen.
- The measure of thermocouple provides automatic reference junction
- Automatic and manual cold end temperature compensation for TC.
- Manual stepping and automatic stepping and ramping.
- Super-strong protection：The waterproof grade is IP67.
- Automatic protection against the signal terminals connect to the 220V.
- Support for PC communication
- Store environment temperature: (-20– 60)°C
- Relative humidity :0~ 90% RH No condensation
- Weight：0.65Kg
- Size：200mm×96mm×47mmm
- Power supply: 6 R03-model rechargeable batteries or power adapter
- Communication mode：RS232
Technical Specification:
| Function | Measure | Source |
| DC V | 0～50V (the upper display ± 30V) | 0～10V |
| DC mA | 0～24mA (the upper display ± 24mA) | 0～24mA |
| DC mV | 0～100mV (the upper display ± 200mV) | 0～100mV |
| Frequency | 1.000Hz ～ 100.00kHz | 0.00Hz～20.000kHz |
| Resistance | 0～3200Ω | 0～3200Ω |
| RTD | Pt100, Pt1000, Cu50, Cu100 | Pt100, Pt1000, Cu50, Cu100 |
| TC | E,J,K,T,B,R,S,N | E、J、K、T、B、R、S、N |
| Others | Stepping output, ramp, phase step output, user-defined range | |

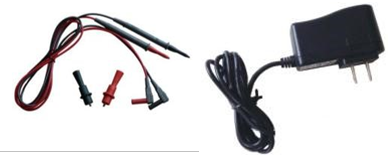

Standard Accessories:
- Hard spot test leads (one sets）
One 12V/1A power adaptor 6 LR03-model (size 7)
