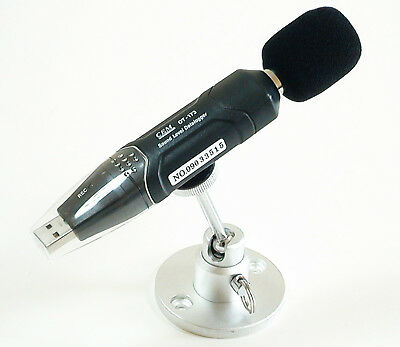

This sound meter data logger has a built in USB port which connects to a Windows PC for uploading the recorded data. This is an ideal instrument for noise measuring in factories, schools, business and traffic areas.
This meter confirms to IEC61672-1 Class 2 standards. The device operates on a 3.6V Lithium battery. This device is very accurate (+/- 1.4dB) and durable. This kit includes software that can be used to view and graph the downloaded data.
Compatible with Windows XP, Vista, Windows 7 / 8, 32 & 64 Bit
| IEC61672-1 CLASS2 |
| A & C Weighting |
| 25ms sample interval |
| Manual and Automatic mode |
Size(HxWxD): 106mm x 56mm x 33.5mm
Weight: 34g
| Specifications: | |
| Standard applied | IEC61672-1CLASS2 |
| Accuracy | ±1.4 dB |
| Frequency range | 31.5HZ-8KHZ |
| Dynamic range | 50 dB |
| Level ranges | Auto: 30dB-130dB |
| Frequency weighting | A/C |
| Time weighting | FAST(125ms),SLOW(1s) |
| Memory Readings | 129920 points for dBA or dBC |
| Sample rate | 1 Sec. to 24h |
| Microphone | 1/2 inch electret condenser microphone |
| Data output | USB data traffic |
