Combine Micro Vickers Hardness Tester and Digital Vickers Hardness Tester and Fully Auto Vickers Hardness Tester by MSP Metrology (M) Sdn Bhd from Matsuzawa Japan
Features

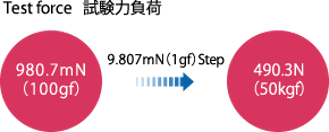

WIDE RANGE TESTING
All the test force control is performed by electric control. The high quality load sensing system can do a wide-range Vickers hardness test by one load cell.
CLOSED-LOOP TEST FORCE CONTROL (WITH LOAD CELL)
AUTO-FOCUS AND AUTO-READ FUNCTION
Auto focus and automatic reading area equipped standardly. Infinity – corrected objective lens and 1.3M high-speed USB camera offers a clear image.
LED INDICATOR
LED indicator is displayed so that LED may flow during operation. Operation of a testing machine can check easily

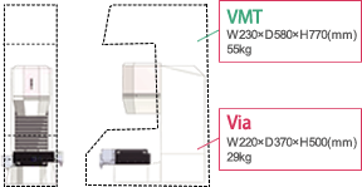

LIGHT-WEIGHT & COMPACT
The optimal design realized the light weight and the compact. Operation of the testing machine which was difficult until now can also be performed easily.
Specifications
| Item/Model | Via-F | Via-S | |
| Test Force | Vickers | 0.981, 1.961, 2.942, 4.903, 9.807, 19.61, 29.42, 49.03, 98.07, 196.1, 294.2, 490.3 (N) | |
| 0.1, 0.2, 0.3, 0.5, 1, 2, 3, 5, 10, 20, 30, 50 (kgf) | |||
| Knoop | 0.981, 1.961, 2.942, 4.903, 9.807, 19.61 (N) | ||
| 0.1, 0.2, 0.3, 0.5, 1 2 (kgf) | |||
| Brinell | 1/9.807, 1/24.52, 1/49.03, 1/98.07, 1/294.2, 2/39.23, 2/98.07, 2/196.1, 2/392.3, 2.5/61.29, 2.5/153.2, 2.5/306.5 (N) | ||
| 1/1, 1/2.5, 1/10, 1/30, 2/4, 2/10, 2/20, 2/40, 2.5/6.25, 2.5/15.625, 2.5/31.25 (kgf) | |||
| Load Apply Speed | 0.981 ~ 4.903N : 50µm/sec, 9.807 ~ 490.3N : 100µm/sec | ||
| Indenter | Standard: Vickers (HV), Option: Knoop (HK), Brinell (HBW 1, 2, 2.5mm) | ||
| Objective | Infinity-corrected Objective Lens Standard: 10x, 20x Optional: 2.5x, 5x, 50x, 100x | ||
| Indent Measurement | Automatic/Manual, Auto-Focus | ||
| Camera | 1/2″ 1.3M BW USB2.0 Camera | ||
| Stage/Anvil | 50mm x 50mm stroke XY auto stage | Ø60mm flat anvil | |
| Controller | 3-axis controller | 1-axis controller | |
| Operation Panel | 23″ Monitor PC (Windows 7) | 12.1″ Touch Panel PC (Windows 7) | |
| Accuracy | Conform to ISO 6507-2, JIS B7725, JIS B7734, ASTM E-384, ASTM E-92 | ||
| Max. Specimen Height | 140mm | ||
| Max. Specimen Depth | 100mm | ||
| Dimensions | W220 x D370 x H5000mm | ||
| Weight | 29kg | ||
| Power Supply | Single Phase AC100 ~ 240V 50/60Hz available for export models | ||
Standard Accessories
| Hardness Standard Block | 800HV |
| Diamond Indenter (Built-In) | Built-in |
| Object Lens | 10, 20x |
| Anvil | 60mm Ø flat, V-shape 60Ø |
| Spare Fuse | 5A |
| Power Cord | 3P-2.5m |
| Auxiliary Tools | – |
| Machine Cover | – |
Special Accessories
| Knoop Indenter | |
| Brinell Indenter | Ø1mm, Ø5mm |
| Objective Lens | 2.5x, 5x, 50x, 100x |
| Precision Vice (Max. Opening 50mm) | |
| Precision Vice (Max. Opening 100mm) | |
| Rotary Table | |
| Thin Specimen Measuring Device | |
| Fine Specimen Measuring Device (Vertical Type) | |
| Fine Specimen Measuring Device (Horizontal Type) | |
| Specimen Inclining Device | |
| Rotary Inclining Device | |
| Universal Inclining Device | |
| V-Shape Anvil (Small) | |
| Manual X-Y Stage | |
| Round Table | Ø200mm |
| Micro Test Table for Jominy Test | |
| Vibration Isolation Table (Tabletop type, Desk type) | |
| Optional Size of Stage | (X) 100mm x (Y) 50mm |
