Features
Wide Application, Powerful Function
- Designed with modular template, collocation with motorized probe MP-300, MP-500, MP-800, MP-1000

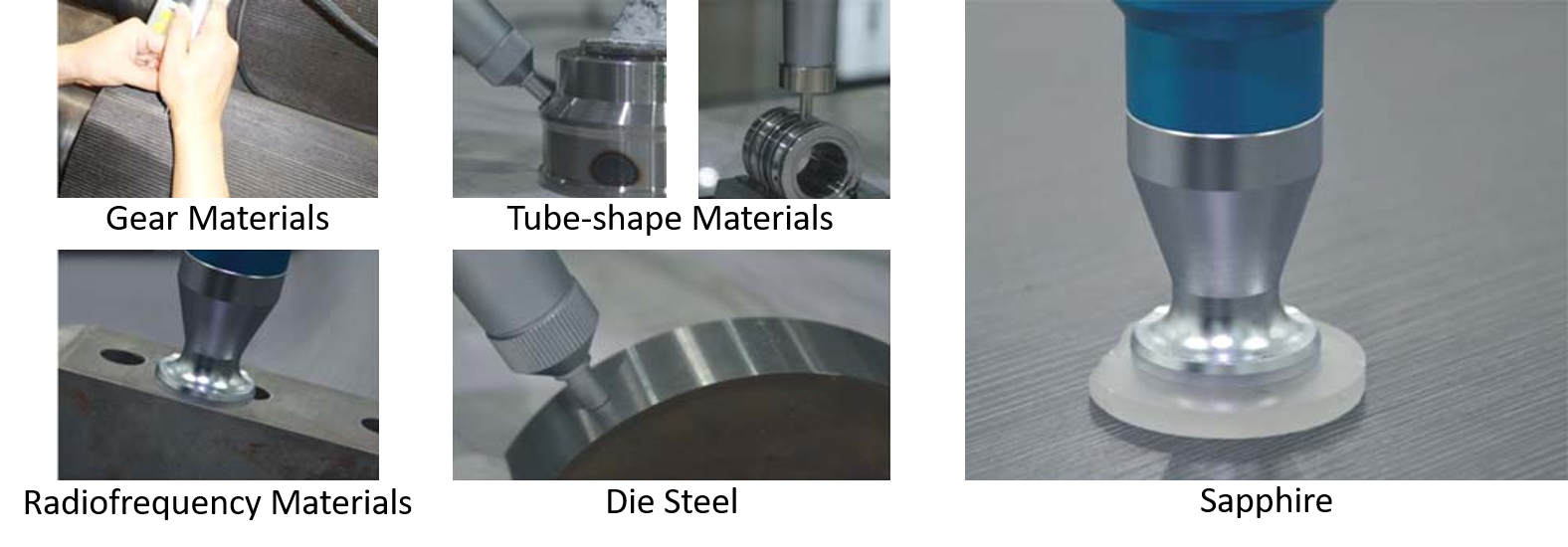

- Can measured flange edges and gear root of stamping parts, mould, sheet, hardening surface of the tooth and gear and taper part hardness; And hardness of the shaft, the pipe including inside and outside wall, container, the wheel, turbine rotor, bit blade , HAZ weld, printing roller, injection molding machine screw parts ,etc.
- Measure the vast majority of the hardness of ferrous, non-ferrous metals and the alloys in industrial production, and it is a kind of perfect testing instruments
- Can measure the material hardness of HRA, HRB, HRC, HV, HBW, HS and steel hardness at production line and laboratory.
- Can be added with manual probe HP-1 k, HP-2 k, HP-5 k, HP-10 k to measure rough samples.
- Can measure the hardness of coating, also known as the coating hardness tester
- Introduced latest ultrasonic sensor technology
- Obtain accurate hardness value without auxiliary devices
- Excellent human engineering design easy to hold
- Quick and accurate measuring for edge and fixed position of specimen
- Micro indentation, no destructive for specimen
- Motorized control, one key fast measuring
- Eliminate hand shake error by manual probe, higher accuracy and repeatability
- More suitable for thin pieces, coating layer hardness
Product Characteristics
- SU-300M Motorized Ultrasonic Hardness Tester is a popular portable durometer made by Sinowon group. It applies method of ultrasonic contact independence to makehardness testing at the spot or in the laboratory.
- SU-300M is a perfect portable durometer for hardness testing about the coating and plating, it can measure the hardness of chrome, copper plating, carburized layer andNitriding layer effectively.
- SU-300M is a NDT durometer due to the contact indention is too small to observe, it is one of the excellent solution totest hardness of finished products, such as, the mold, gear, shaft, rod, screw, rails, etc.
- SU-300M can not only work with the motorized probes, but also work with the manual probes, which is able to meet the different application in light of different condition of surface roughness.
- SU-300Mconformsthe standard ASTM A1038-2005, DIN standard DIN50159-1-2008 and China National standard GB/T 34205-2017.
Product Features
- Perfect Accuracy——±3% HV, ±5HR, ±3%HB.
- Microscopic Indentation—— Only high-power microscope can observe the indentation.
- Quick Measurement——Result in 2 seconds.
- Large LCD Display——Directly display measurement result, times count, maximum, minimal, average and deviation.
- Friendly Operation——Operate well after short training.
- Promised Warranty——2-Year warranty for main unit (Excludes Probe).
- Mass Storage——Save 1000 groups measurement data.
- Simple Calibration——Save 20 groups calibration data for invoking, improve calibration efficiency
Full Specifications
| Product Name | Ultrasonic Hardness Tester | ||||
| Model | SU-300M | ||||
| Code# | 882-141M | ||||
| Optional probe | Manual Probe：10N、20N、49N、98N ;Motorized Probe：3N、5N、8N、10N | ||||
| Measuring Range (DIN) | HBS:100-500; HV:100-1500; HRC:20-68; HRB:55-100; HRA:37-85; Mpa: 255-2180N/mm | ||||
|
Measuring Accuracy（%） |
|||||
| Scales | 250HV | 250~500HV | 500~800Hv | 800HV | |
| HV0.1 | 6 | 7 | 8 | 9 | |
| HV0.3 | 6 | 7 | 8 | 9 | |
| HV0.8 | 5 | 5 | 6 | 7 | |
| HV1 | 5 | 5 | 6 | 7 | |
| HV5 | 5 | 5 | 5 | 5 | |
| HV10 | 5 | 5 | 5 | 5 | |
| Hardness Scales | Vickers(HV);Rockwell C(HRC); Rockwell A(HRA); RockwellB(HRB);Brinell(HB) | ||||
| LCD | Color Screen | ||||
| Data Display | LCD Backlight, Adjustable | ||||
| Language | Chinese, English, German, Portugese, Turkish | ||||
| Data Output | RS232 Hyper Terminal/Bluetooth Printer | ||||
| Bluetooth | |||||
| Data Storage | To save 1000-groups of measuring data and 20-groups of calibration data | ||||
| Word input | Letters and numerals | ||||
| Working Environment | Temperature: -10°C to 50°C ; Humidity :30%-80% R.H. | ||||
| Battery Voltage | Rechargeable lithium battery ; Voltage :4.2V, 4800mAh | ||||
| Recharger Voltage | AC220V/50Hz, 110V/60Hz | ||||
| Main unit Dimension and Weight | Main unit Dimension :160 x 80 x 30mm (L x W x H);Manual Probe:Φ22×153mm ; Weight(No Probe): 0.5Kg | ||||
| Packing Dimension and Weight | Packing Dimension 320 x 430 x 155mm (L x W x H) ; Packing Weight （Standard Delivery）4.3Kg | ||||
| Code # | Product Name | Code # | Product Name | Code # | |
| Instrument Main Body | 882-141M | 10N Motorized Probe | 882-251 | Anti Vibration Case | 882-901 |
| Standard Rockwell Block | 882-641 | Probe Cable | 882-801 | Screw | 882-951 |
| USB Recharger | 882-851 | COM Cable | 882-810 | Operation Manual | SU-300M |
| Qualification Certificate | SU-300M | Packing List | SU-300M | Warranty Card | SU-300M |
