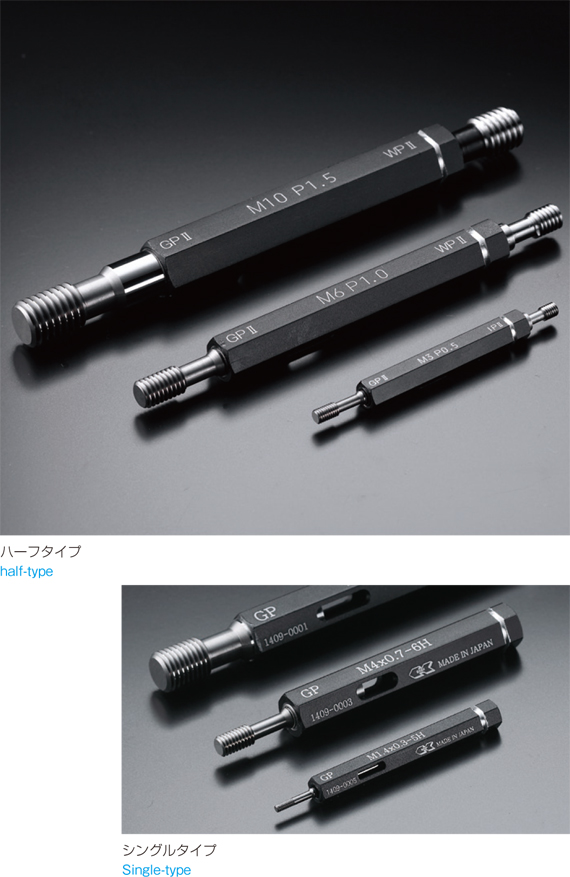

Features
Tungsten carbide used only for frequently used g o-side gauges.No go-side gauges with excellent wear resistance and low prices achieved by using the conventional SKS3 steel materials.
Tool life 5 to 10 times greater than that for similar gauges made from steel.
※Tool life will vary greatly depending on the work piece materials.
※Thread plug gauges other than the standard stock items can also be produced.
Tool life 5 to 10 times greater than that for similar gauges made from steel.
※Tool life will vary greatly depending on the work piece materials.
※Thread plug gauges other than the standard stock items can also be produced.
Applications
※Other special sizes are also available
Full Specifications
| Type of thread | Pitch | Type of gauge | Class | |
| M1.4 | 0.3 | coarse | GPIP (for JIS inspection) GPWP (for JIS work) |
Ⅱ （JISClass |
| M1.6 | 0.35 | coarse | ||
| M1.7 | 0.35 | coarse | ||
| M1.8 | 0.35 | coarse | ||
| M2 | 0.4 | coarse | ||
| M2.3 | 0.4 | coarse | ||
| M2.5 | 0.45 | coarse | ||
| M2.6 | 0.45 | coarse | ||
| M3 | 0.5 | coarse | ||
| M4 | 0.7 | coarse | ||
| M5 | 0.8 | coarse | ||
| M6 | 1.0 | coarse | ||
| M8 | 1.25 | coarse | ||
| M8 | 1.0 | fine | GPNP （ISO） | 6H （ISOClass） ※M1.4[5H] |
| M10 | 1.5 | coarse | ||
| M10 | 1.25 | fine | ||
| M10 | 1.0 | fine | ||
| M12 | 1.75 | coarse | ||
| M12 | 1.5 | fine | ||
| M12 | 1.25 | fine | ||
