Features
-
Moving gantry structure, measurement workpiece is fixed;
-
Four-axis CNC fully auto close loop control, auto measurement;
-
“00” grade “JINANQING”marble base and pillar, stable and reliable;
-
Imported open type linear scale, resolution is 0.1um, high accuracy, great stability;
-
Imported P grade linear guide,, precision grinding ball screw and AC servo motor, ensure accuracy stability of system position
-
Imported high definition color industry camera, ensure clear observation and stable measurement requirement;
-
6.5X continue auto zoom lens, precision auto zoom, only need to make pixel calibration once time;
-
Programmable 5-ring 8-division LED surface illumination, contour parallel LED illumination, can realize 256 grade brightness adjustment intelligently;
-
With imported non-contact laser sensor, realize thickness and flatness and other measurement;
-
With proprietary fully auto measuring software iMeasuring 5.0, powerful function, simple operation;
-
Optional touch probe, coaxial illumination and other accessory, it can also be customized according to customer request;
-
Optional FexQMS Measuring Data Analysis and Real-time monitoring software which enhance program control and reduce material consumption
.png)
High Accuracy
Imported open type linear scale with resolution of 0.1µm for higher accuracy and greater stability
Imported P grade linear guide, precision grinding ball screw and AC servo motor to ensure accuracy stability of system position
6.5x continue auto zoom lens, precision auto zoom, only need to make pixel calibration one time
NON-CONTACT LASER SENSOR
AutoScan is equipped with non-contact laser sensor to realize 3D measurement. It is widely used in non-contact measurement, and able to realize thickness, flatness and scan measurement
.png)

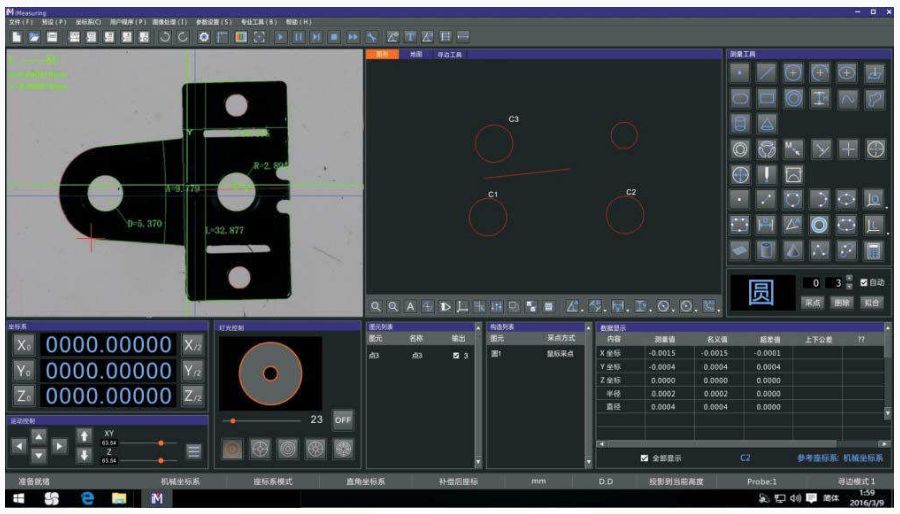

SINOWON iMEASURING 5.0
Professional multisensory 3D measuring software which is friendly operation, powerful function, high accuracy and stability, and simple maintenance that enhance the quality control situation.
Specifications
Full Specifications
| Product Name | Non-Contact Fully Auto Vision Measuring Machine | ||||||
| Model | AutoScan 432 | AutoScan 542 | AutoSan 652 | AutoScan | |||
| Code | 522-121 | 522-131 | 522-141 | 522-151 | |||
| X-Y axis Travel | 400 x 300 mm | 500 x 400 mm | 600 x 500 mm | 800 x 600 mm | |||
| Z axis Travel | 200 mm | 200 mm | 200 mm | 200 mm | |||
| Load Capacity | 30 kg | 30 kg | 30 kg | 30 kg | |||
| Dimension | 1160 x 800 x 1650 mm | 1450 x 950 x 1650 mm | 1600 x 1050 x 1650 mm | 2000 x 1200 x 1650 mm | |||
| Packing Dimension | 1380 x 1170 x 1910 mm | 1690 x 1300 x 2000 mm | 1800 x 1400 x 2000 mm | 2300 x 1700 x 2000 mm | |||
| Weight | 650 kg | 780 kg | 1380 kg | 2000 kg | |||
| X-Y-Z axis Linear Scale(mm) | Imported open linear scale, resolution: 0.0001 mm | ||||||
| Guidance Mode | Imported P grade linear guide , double -track double slider guide | ||||||
| Operation Mode | Joystick controller, mouse operation, automatic detection program | ||||||
| Measurement Accuracy | X-Y axis: ≤ 2 + L/200 µm | ||||||
| Z axis:≤5 + L/200µm | |||||||
| Repeatability | ±2µm | ||||||
| Video System | 1/2″ color CCD camera | ||||||
| 6.5x automatic zoom lens | |||||||
| Optical magnification : 0.7x – 4.5x , video magnification: 20x – 129x (21.5″ monitor) | |||||||
| Field-of-View(mm)
(Diagonal* Horizontal* Vertical) |
Lens magnification | 0.7x | 1x | 2.0x | 3.0x | 4x | 4.5x |
| 1/2″ CCD | 11.43 x 9.14 x 6.86 | 8.00 x 3.20 x 2.40 | 4.00 x 3.20 x 2.40 | 2.67 x 2.13 x 2.40 | 2.00 x 1.60 x 1.20 | 1.78 x 1.42 | |
| Illumination | Contour: LED parallel contour illumination | ||||||
| Surface: 5-ring 8 division 0-255 grade continue adjustable | |||||||
| Software System | iMeasuring 5.0 Fully Auto Measuring Software | ||||||
| Working Environment | Temperature 20°C ± 2°C, humidity range <2°C/hr, humidity 30- 80%, vibration < 0.0002g, <15Hz | ||||||
| Power | 220V/50Hz/10 A | ||||||
