Features
Aka-Piatto +
Aka-Piatto+ is a series of discs with an even higher diamond concentration than Aka-Piatto.

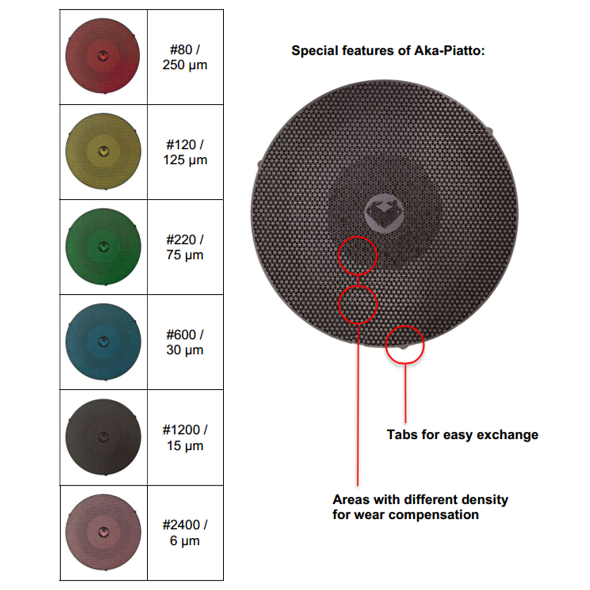

The effect of Aka-Piatto+ is an improved lifetime and finer surface finish on brittle samples like ceramics and cermets due to the lower specific pressure. Used on metals it results in a finer finish and up to 100% longer lifetime compared to regular Aka-Piatto discs. Aka-Piatto+ shares all the same features as Aka-Piatto, like colour-coding, the wear compensating design and the 3 small tabs for easy exchange.
The Aka-Piatto+ discs have to be opened with a dressing stick before the first use, and depending on the material being prepared, dressed once in a while during use. We recommend using the dressing stick 75310201 to be found in the Accessories section.
Aka-Piatto+ is a series of discs with an even higher diamond concentration than Aka-Piatto.
The effect of Aka-Piatto+ is an improved lifetime and finer surface finish on brittle samples like ceramics and cermets due to the lower specific pressure. Used on metals it results in a finer finish and up to 100% longer lifetime compared to regular Aka-Piatto discs. Aka-Piatto+ shares all the same features as Aka-Piatto, like colour-coding, the wear compensating design and the 3 small tabs for easy exchange.
The Aka-Piatto+ discs have to be opened with a dressing stick before the first use, and depending on the material being prepared, dressed once in a while during use. We recommend using the dressing stick 75310201 to be found in the Accessories section.
Specifications
| Aka-Piatto+, 200 mm dia. | |||
| Product no. | Product name | Contents | GRWT kg |
| 31412010 | Aka-Piatto 80+/250 µm 200 mm dia. | 1 pc | 0.35 |
| 31412020 | Aka-Piatto 120+/125 µm 200 mm dia. | 1 pc | 0.35 |
| 31412030 | Aka-Piatto 220+/75 µm 200 mm dia. | 1 pc | 0.35 |
| 31412045 | Aka-Piatto 600+/30 µm 200 mm dia. | 1 pc | 0.35 |
| 31412060 | Aka-Piatto 1200+/15 µm 200 mm dia. | 1 pc | 0.35 |
| Aka-Piatto+, 250 mm dia. | |||
| Product no. | Product name | Contents | GRWT kg |
| 31412510 | Aka-Piatto 80+/250 µm 250 mm dia. | 1 pc | 0.40 |
| 31412520 | Aka-Piatto 120+/125 µm 250 mm dia. | 1 pc | 0.40 |
| 31412530 | Aka-Piatto 220+/75 µm 250 mm dia. | 1 pc | 0.40 |
| 31412545 | Aka-Piatto 600+/30 µm 250 mm dia. | 1 pc | 0.40 |
| 31412560 | Aka-Piatto 1200+/15 µm 250 mm dia. | 1 pc | 0.40 |
| Aka-Piatto+, 300 mm dia. | |||
| Product no. | Product name | Contents | GRWT kg |
| 31413010 | Aka-Piatto 80+/250 µm 300 mm dia. | 1 pc | 0.50 |
| 31413020 | Aka-Piatto 120+/125 µm 300 mm dia. | 1 pc | 0.50 |
| 31413030 | Aka-Piatto 220+/75 µm 300 mm dia. | 1 pc | 0.50 |
| 31413045 | Aka-Piatto 600+/30 µm 300 mm dia. | 1 pc | 0.50 |
| 31413060 | Aka-Piatto 1200+/15 µm 300 mm dia. | 1 pc | 0.50 |
