CHARACTERISTICS OF THE MAST-STYLE BOOM LIFT PIAF 10E
ADVANTAGES
• 3,51 m horizontal outreach
• 25% gradeability
• Zero tailswing
• Rotation 2x178°
• A/C electric drive
• Electric and smooth operating system
• Designed and manufactured for heavy duty use
• Easy maintenance
STANDARD FEATURES
• Non marking solid tires
• Battery 24V 215Ah
• Centralised battery filling
• On board charger H/F
• Access to platform through a gate
• Tilt indicator with buzzer
• Overload indicator
• Steel frame and fiberglass covers
• Flashing light
• Slinging and lifting lugs
• On board colour LCD diagnostic console
• Hour meter
• Battery charge indicator
OPTIONS
• Air line to platform
• Gel battery with charger
• Food compatible oil
• Biodegradable oil
• Motion alarm
• Anti-Crushing System (ACS)
• 220V AC power to platform
• Automatic charger 110/220 V
• Special customer paint

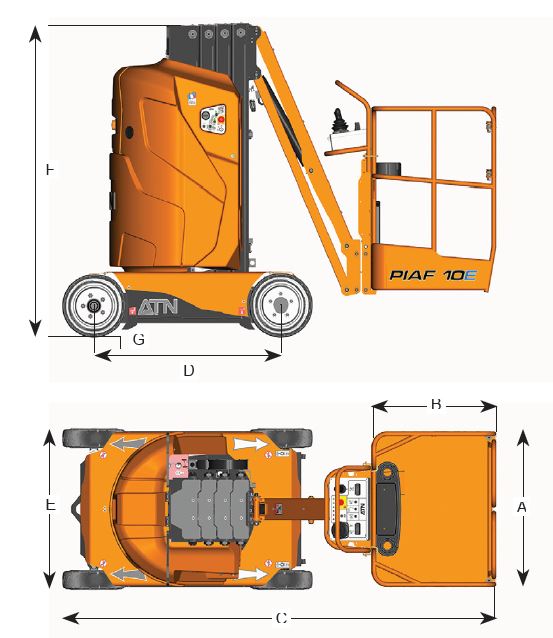

| Working height | 9.92 m |
| Platform height | 7.92 m |
| Horizontal reach | 3.51 m |
| Lift capacity | 200 Kg |
| Turntable rotation | 356 ° |
| Platform width | 0.9 m |
| Platform length | 0.8 m |
| Length | 2.78 m |
| Wheelbase | 1.2 m |
| Width | 1 m |
| Height - stowed | 1.98 m |
| Ground clearance | 8.5 m |
| Turning radius - inside | 0.52 m |
| Turning radius - outside | 2 m |
| Drive speed - stowed | 5.4 Km/h |
| Drive speed - raised | 0.8 Km/h |
| Maximum tilt value | 2 ° |
| Weight | 2850 Kg |
| Gradeability * - stowed | 25 % |
| Max.ground bearing pressure | 932 kN/m² |
