Low Profile Surface Mount Single Phase Bridge Rectifiers
Reverse Coltage 100 to 1000V Forward Current 4.0A
FEATURES
* Low forward voltage drop
* Low leakage current
* Ideal for automated placement
* Glass passivated standard bridge rectifiers
* Moisture sinsitivity : level 1
* Low profile, typical height 1.5mm
* High temperature soldering guarateed : 260°C/10 seconds
* Weight:0.505g
Typical Applications
For use of general purpose AC to DC bridge rectification in power supply, charger, office appliance, home appliance & telecome device

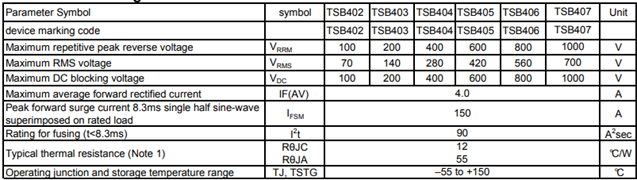

Maximum Ratings at 25°C unless otherwise noted
