A CNC router (Computer Numerical Control router) is a computer-controlled cutting machine that automates the process of shaping, cutting, and engraving materials like wood, plastic, foam, and aluminum using a rotating cutting tool (spindle) guided by precise X, Y, and Z coordinates. It functions similarly to a hand-held router but with digital precision, enabling complex designs, joinery (like mortise and tenon), and repetitive tasks for woodworking, sign making, and manufacturing
Features

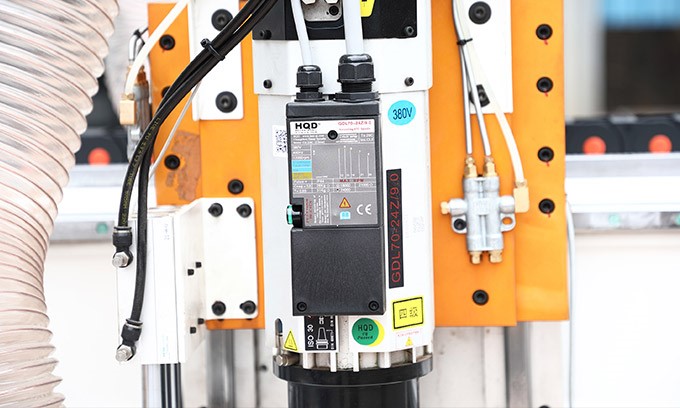

ATC High speed spindle router
1.Powerful 9KW automatic tool change Spindle, 24000rpm, Powerful twisting force and fast processing.
2.it is suitable for heavy cutting, milling etc.,it will keep the surface of work pieces very smooth.

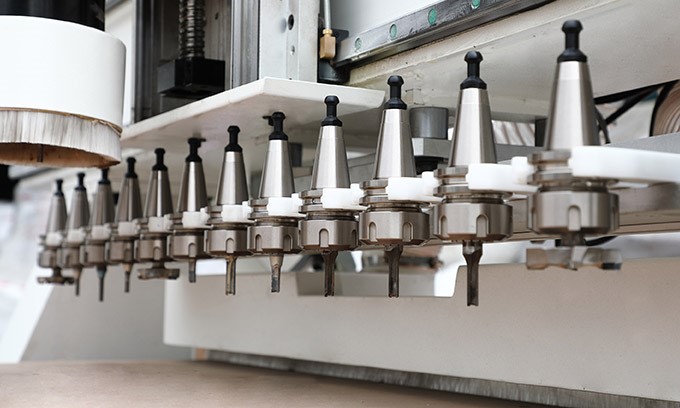

Automatic linear type tool changer unit 12pcs
12 pcs tools linear type tool magazine with ISO30
chucks with ER32 collet.

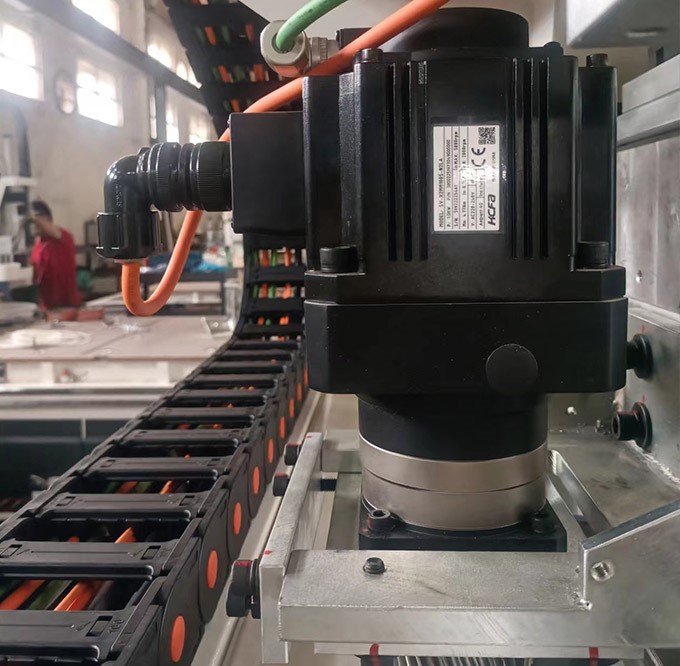

High performance servo motor and reducer
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy.

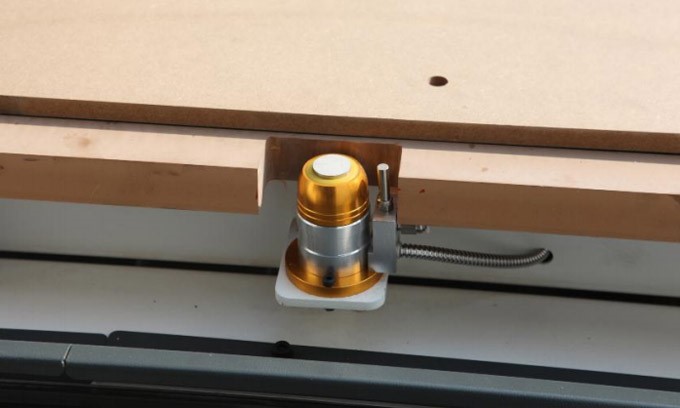

Automatic tool sensor
The sensor will help measure the Z axis height distance

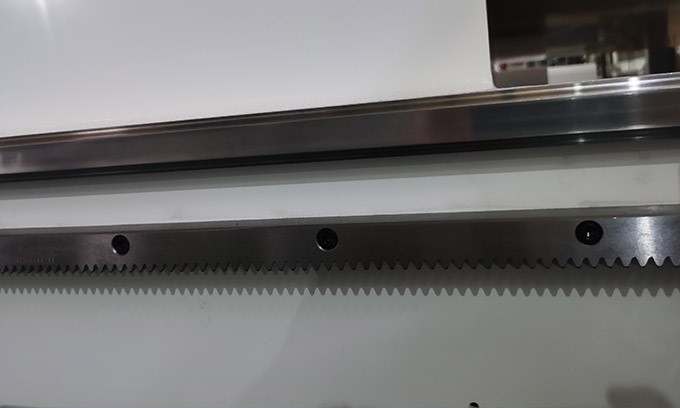

ØImported linear guide rail and rack
Precision ground 30 mm imported linear
guide rails attached to the gantry, with centralized
lubrication system to the bearing blocks to
guarantee smooth travel of the spindle motor assembly.

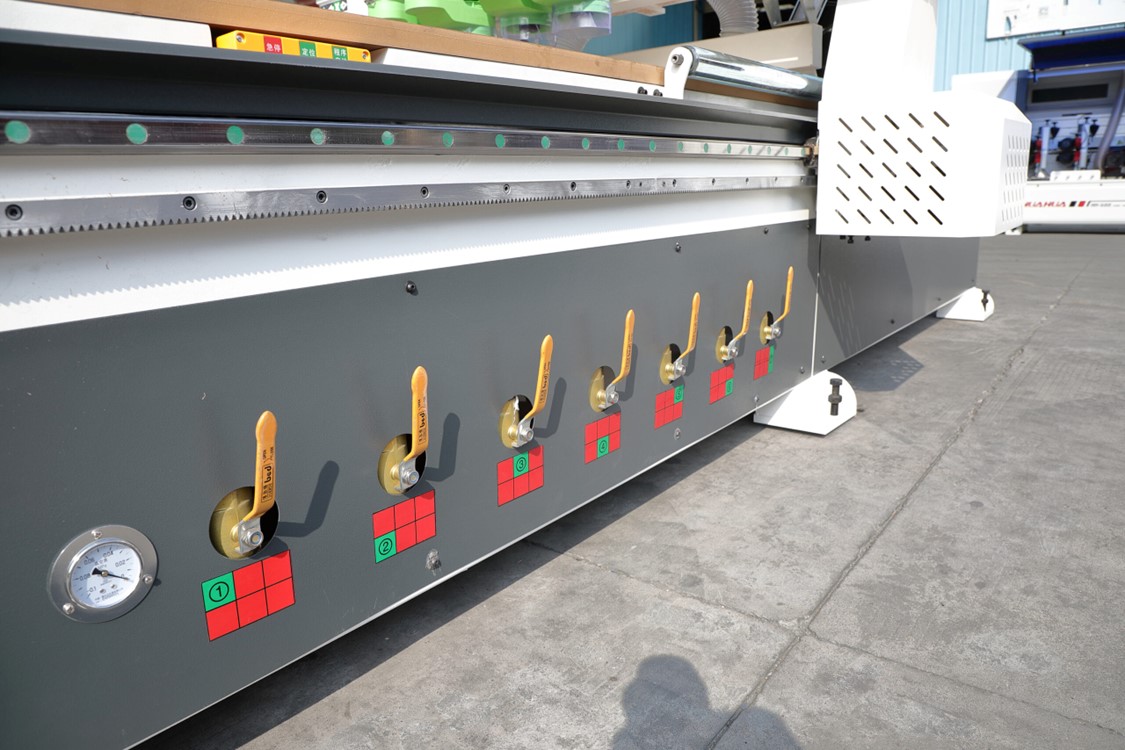

Double worktable
Two stations are processed at the same time to improve work efficiency.
Key Features & Applications
Materials: Wood, plastics, acrylics, foams, composites, and sometimes softer metals.
Tasks: Engraving, cutting, carving, drilling, creating joints.
Industries: Furniture making, sign production, prototyping, cabinetry.
Types: Available for hobbyists and industrial use, with options for automatic tool changes for complex jobs.
Applications
Service Coverage
Features
ATC High speed spindle router
1.Powerful 9KW automatic tool change Spindle, 24000rpm, Powerful twisting force and fast processing.
2.it is suitable for heavy cutting, milling etc.,it will keep the surface of work pieces very smooth.
Automatic linear type tool changer unit 12pcs
12 pcs tools linear type tool magazine with ISO30
chucks with ER32 collet.
High performance servo motor and reducer
Professionally made, ensure the machine
running accurately in safe with very good
resolution and accuracy.
Automatic tool sensor
The sensor will help measure the Z axis height distance
ØImported linear guide rail and rack
Precision ground 30 mm imported linear
guide rails attached to the gantry, with centralized
lubrication system to the bearing blocks to
guarantee smooth travel of the spindle motor assembly.
Double worktable
Two stations are processed at the same time to improve work efficiency.
Key Features & Applications
Materials: Wood, plastics, acrylics, foams, composites, and sometimes softer metals.
Tasks: Engraving, cutting, carving, drilling, creating joints.
Industries: Furniture making, sign production, prototyping, cabinetry.
Types: Available for hobbyists and industrial use, with options for automatic tool changes for complex jobs.
Applications
- Panel furniture production
- Cabinet and wardrobe manufacturing
- CNC nesting with automatic tool changing
- Batch production of furniture components
|
Working range |
X-axis: | 1220mm / 1830mm*2 |
| Y-axis: | 2800mm / 2440mm*2 | |
| Z-axis: | 200mm | |
| Machine Speed | X-axis max. speed | 80m/min |
| Y-axis max. speed | 80m/min | |
| Z-axis max. speed | 20m/min | |
| machine structure | work table | vacuum worktable*2 |
| X/Y/Z axis | X/Y axis：Oblique Rack Gear | |
| Z axis：Ball Screw | ||
| Main spindle | Quantity | ATC spindle |
| Power | 9Kw | |
| Rotating speed | 24000 rpm | |
| Drive system | Taiwan Syntec servo motor and driver | |
| Vacuum pump | Working principle | Dry vacuum pump from Taiwan Eurovac |
| Quantity | 1 | |
| Power | 7.5Kw / 11Kw | |
| Suction flow rate | 250m³/h / 400m³/h | |
| control system | Taiwan Syntec control system | |
| Power supply | Voltage: 415V, 3-phase, Frequency: 50 Hz | |
| Machine can use software |
cabinet vision, Alphacam, etc. CAD/CAM software compatible, identify G code, *.NC. |
|
Service Coverage
We focus on supplying woodworking machinery to local customers.
Installation, machine setup, operator training, and after-sales technical support are provided by our local service team.
Remote technical assistance is available when required.
FAQ
Q: What is this machine used for?
A: It is used for CNC cutting, routing, and nesting with automatic tool changing.
Q: Is this machine suitable for furniture factories?
A: Yes. It is designed for continuous and batch furniture production.
Q: Do you provide installation and training?
A: Yes. Installation, machine setup, and operator training are provided by our local technical team.
Q: Do you offer after-sales technical support?
A: Yes. Ongoing after-sales service and technical support are provided.
