- The totally enclosed fan cooled motor is adopted for all models.
- The direct-couple driving system eliminates kinetic loss and bending stress.
- Extended maintenance cycle, simplified maintenance work.
- The discharge air volume is increased by 5%. Low noise, less vibration (best balance with slower rotation)
| Model | Z755WS2-R | Z756WS2-R | ||
| Items | Unit | |||
| Power frequency | Hz | 50 | 60 | |
| Power supply voltage | V | 200 / 380 / 400 / 415 | 200 / 220 / 380 / 400 / 440 | |
| Free air delivery | m³ / min | 13.0 | ||
| Delivered air pressure | MPa | 0.7 | ||
| Volume control system | Saving energy A.U.C & auto. start & stop selection | |||
| Intake air pressure & temperature | Atmospheric pressure (0 to 40°C) | |||
| Main motor power | kW | 75 | ||
| Motor type | 3-phase squirrel cage 2P totally enclosed external fan | |||
| Starter | Automatic star-delta | |||
| Drive system | Direct coupled motor | |||
| Cooling system | Water cooled | |||
| Fan motor power | kW | 0.08 | 0.12 | |
| Oil filling quantity |
 |
60 | ||
| Cooling water amount |
|
110 | ||
| Dryer | Air dew point at outlet | °C | 10(under pressure) | |
| Refrigerator power | kW | 2.9 | 3.6 | |
| Refrigerant | R·407 | |||
| Discharge pipe diameter | R | 2 | ||
| Dimension , L x W x H (body) | mm | 2543 x 1200 x 1700 | ||
| Total mass (dry state)[Without dryer] | kg | 1900 | ||
| Noise level [OP1.5m] | dB·A | 66 | ||
| Dimension , L x W x H (Without dryer) | mm | 1800 x 1200 x 1700 | ||

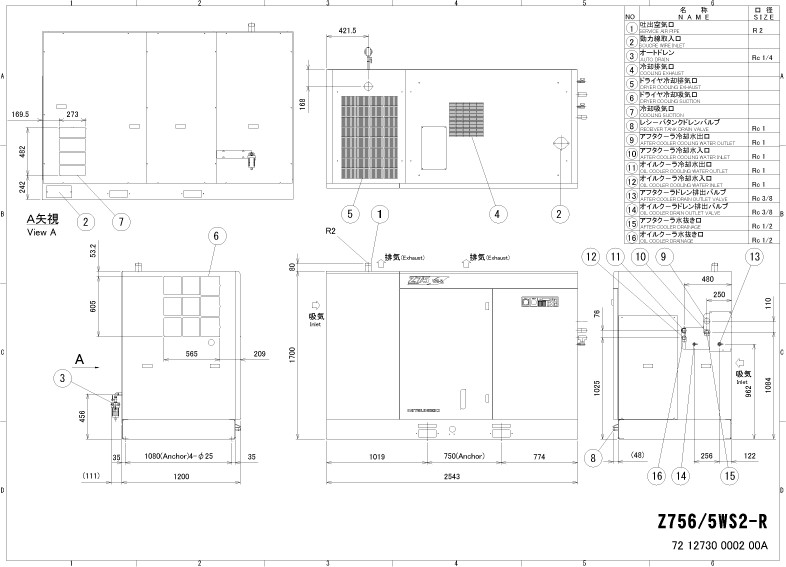

Outside Appearance
