Why Choose Our Modular Operating Theatre?
Modular
Modular walls allow surgical spaces to be tailored to user needs, with quick modernization or upgrades done overnight without disrupting schedules. They offer fast installation and flexibility for future additions.
Hygienic
Modular walls and ceilings feature silver ion-based antimicrobial protection. Panel gaps are sealed with hermetic antibacterial silicone, resistant to UV, chemicals, steam, and cleaning agents.
Design
Custom graphics can be printed on steel or glass modular walls to create a welcoming surgical environment. Available in a wide range of materials, colours, and design finishes.
.jpg)

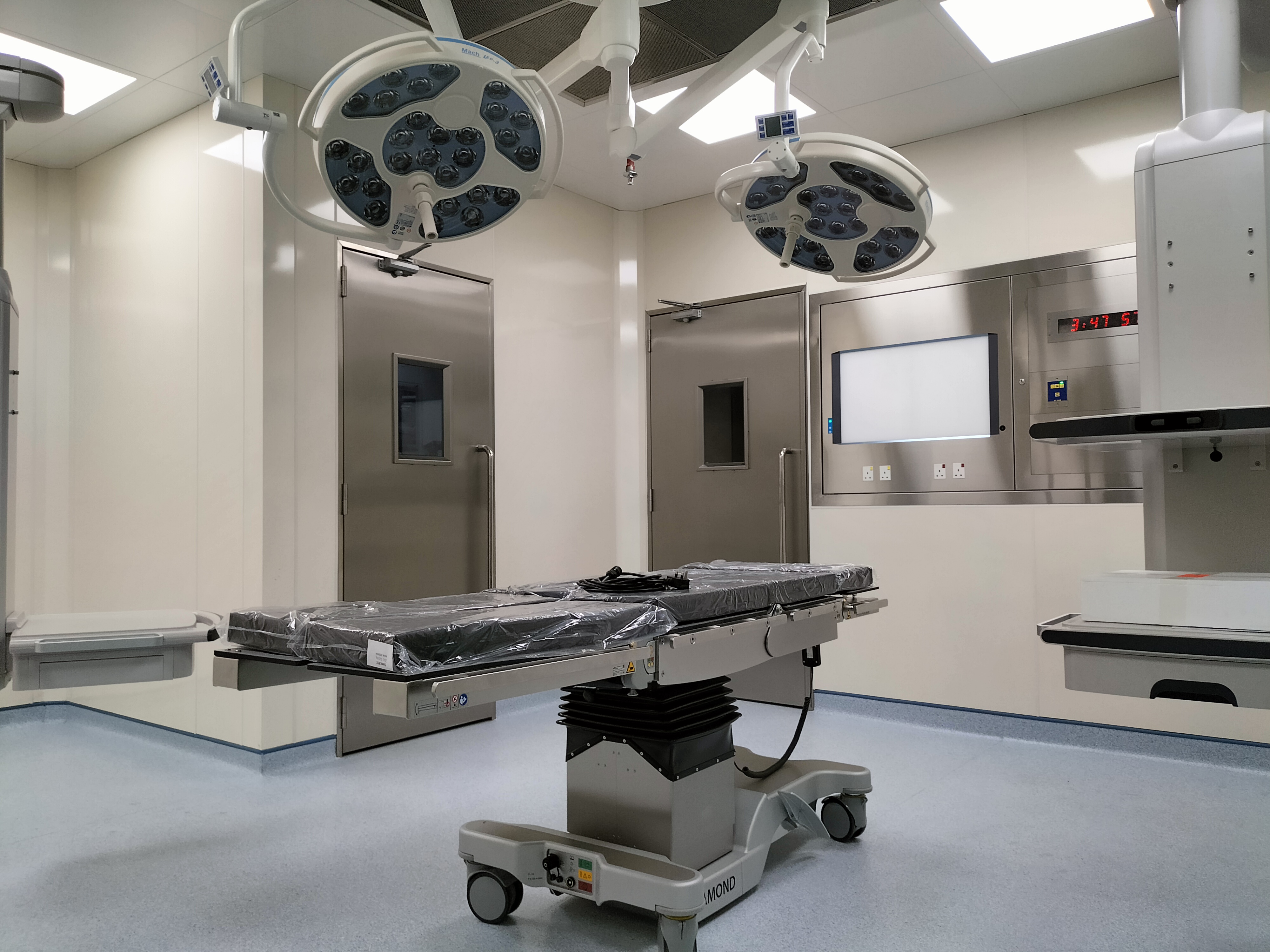

Modular Operating Theatre
- Manufactured with international standards EN ISO13485
- Modular OT specification are based on European standards
- Design, Develop & Manufactured by Malaysian engineers who have 20 years of experience in structural fabrication and installation.

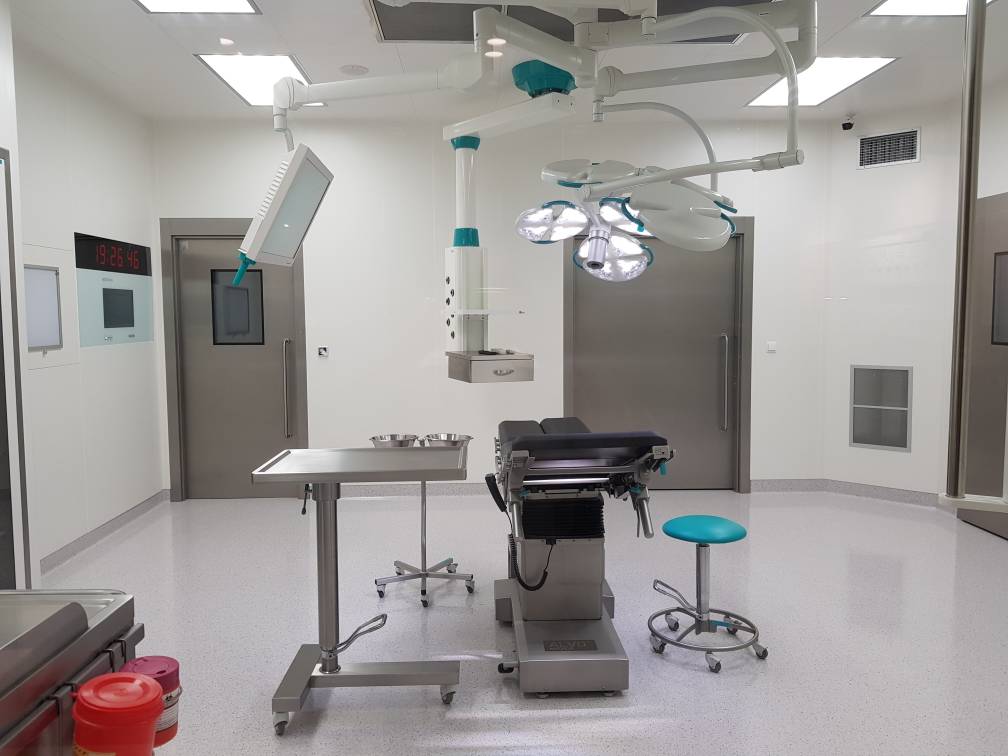

Modular Operating Rooms
Combination construction of
- Hollow Channel Steel Structure
- Stainless Steel Antibacterial Powder Coated Wall Panel and Tempered Glass Wall Panel
- Laminar Flow with HEPA Filter
- Permanently Static Conductive Vinyl Flooring
- Stainless Steel Door
Modular Panel System
- Stainless steel wall panel system on galvanized steel substructure OR Graphic printed tempered glass panel
- Gabs filled with antimicrobial silicone gaskets.
- Rounded or 90-degree wall corners available.
- Panel powder coated with RALcolour
- RAL colour available
Modular Ceiling System
- Ceiling made of galvanized steel panel system on galvanized steel structure
- Clip Lock System to ensure the hermetic seal of the OT
- Panel powder coated with RAL 9010 colour
- Standard panel size 600 x 600mm
Flooring
- Permanent static conductive
- Pressed, homogeneous vinyl flooring, 2mm thick.
- Provided with all necessary chemical agents and certified components.
- Easy to clean and easy to decontaminate.
- Does not favour the growth of bacteria.
- Class A with good chemical resistance
Laminar Air Flow System
- Made of stainless steel.
- HEPA filter H13 included.
- Guarantees required air exchange rate in OT.
- Available in various options:
- 1 x 1 (650mm x 650mm)
- 3 x 4 (1950mm x 2600mm)
- 3 x 3 (1950mm x 1950mm)
- 4 x 4 (2600mm x 2600mm)
- Return ducting made of galvanized steel.
- Grills are made of stainless steel or aluminium.
OT General Lighting
- High Efficient LED Panels.
- Coffer made of steel, powder coated in white colour.
- Impact resistant.
- Hardened mat glass diffuser.
| Technical Parameters | 600 x 600 | 1200 x 600 |
| Luminous Flux LED (lm) | 6966 | 18576 |
| LED Power (W) | 37 | 99 |
| Luminaire Luminous Flux (lm) | 5572 | 14860 |
| Luminaires Light Efficiency (lm/W) | 133 | 134 |
| Color of the Light (K) | 4000 | |
| Photobiological Risk Class (IEC/EN 62471) | RG0 | |
| Protection Against Electric Shock | I | |
| Protection Degree | IP65 | |
| Lifetime of LED Sources (h) | 100 000 | |
| Operating Temperature Range (ºC) | 5 - 30 | |
