Model :


• QTW80 Series



---

Features :


• Maximum Stroke : 2550 mm
• Maximum Speed : 8330 mm/s
• Gearbox Number : 120 mm
• Linear Guide : 20X15.5-3
• Gear Specification : 2 M



---

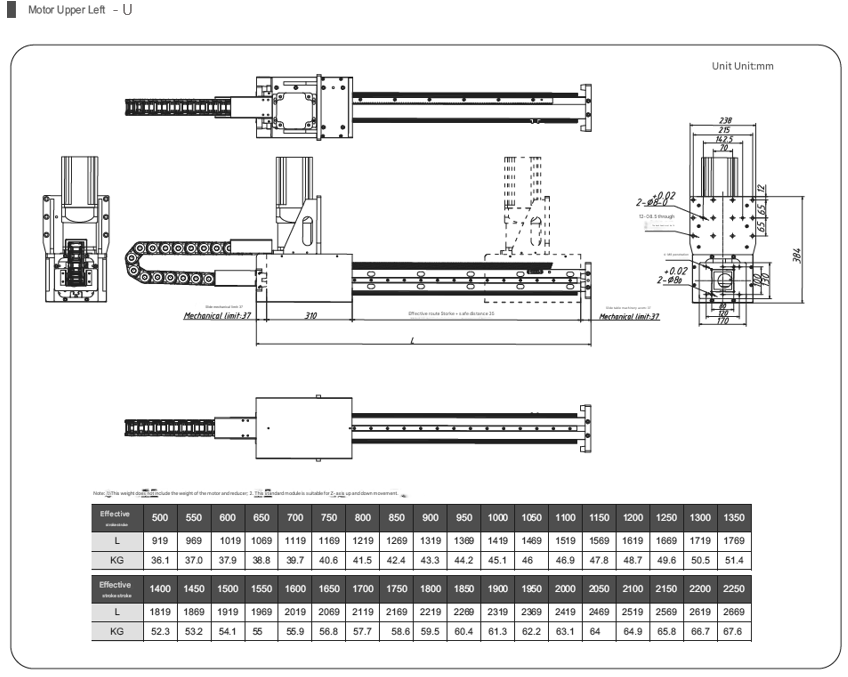

Dimension :






---

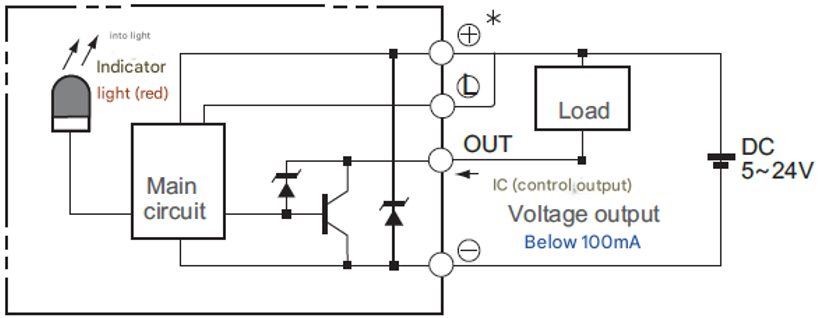

Sensor layout :






---

Specifications :



Capabilities	Repeatability (mm)		± 0.1
	Gear Lead (mm)		166.6 mm
	Upper pulla load (kg)		40
	Stroke Pitch (mm)		500-2550 mm / 50mm pitch
Parts	Gearbox Number (mm)		120
	Gear Specification (M)		2 M
	High Rigidity Linear Guide (mm)		20 × 15.5
	Home Sensor	Outside	EE-SX674 (NPN)



---
