Model :


• GTHS8 Series



---

Features :


• Maximum Stroke : 1100 mm
• Maximum Speed : 1000 mm/s
• Ball Screw : Ø16 mm
• Motor Output : 200W



---

Structure :

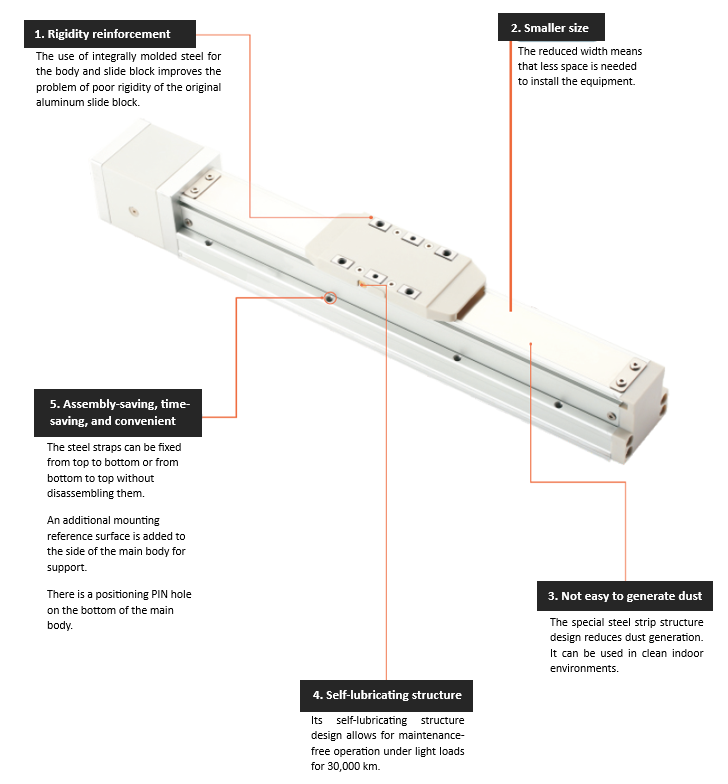

• Internal structure :



• Self-lubricating structure



---

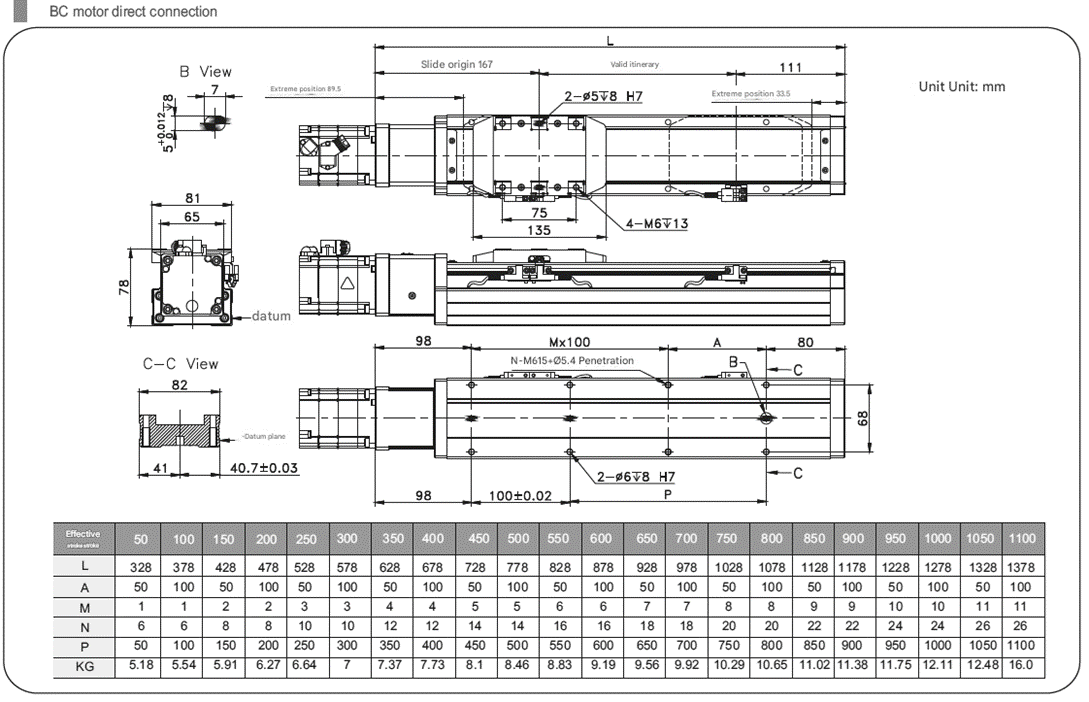

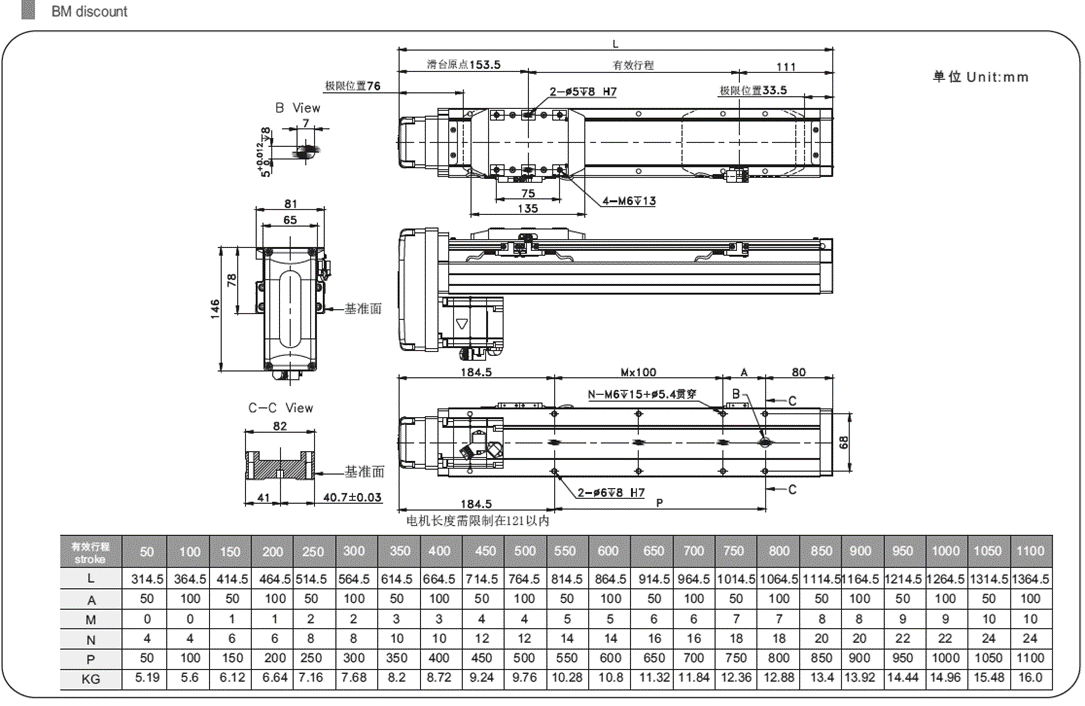

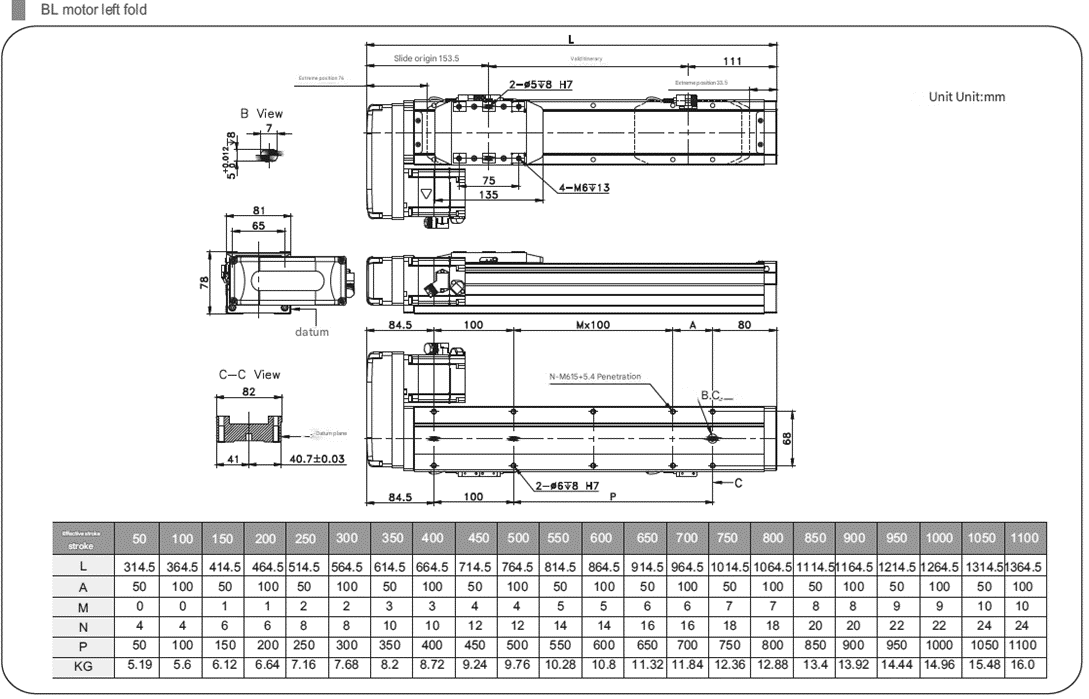

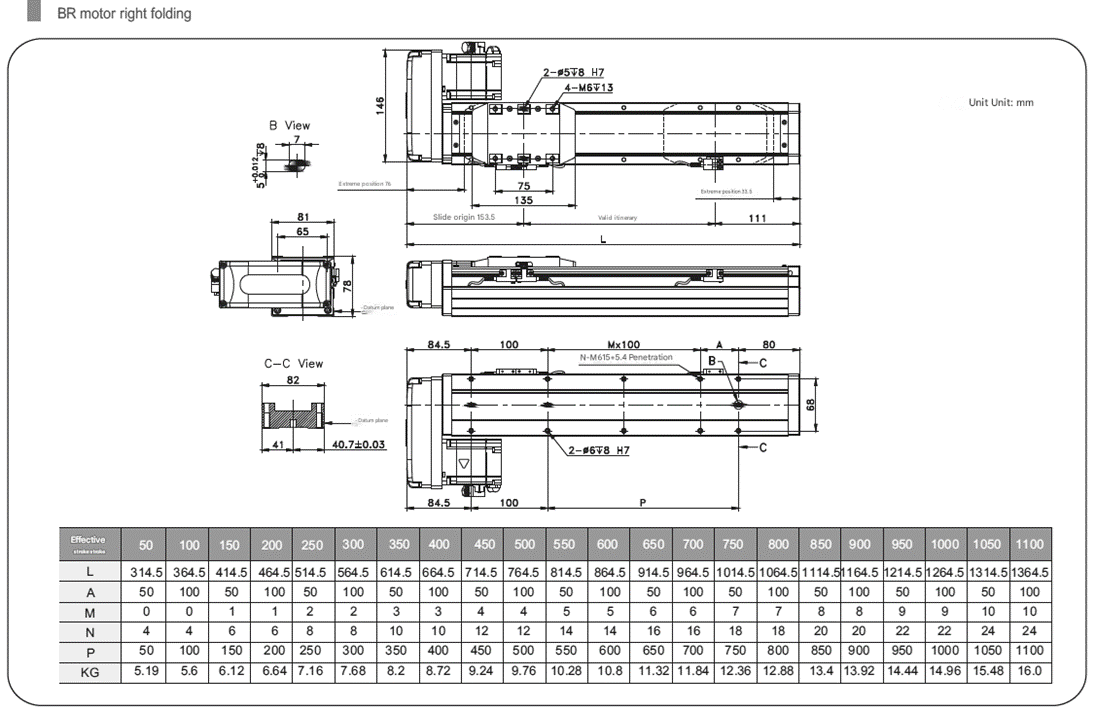

Dimension :

---

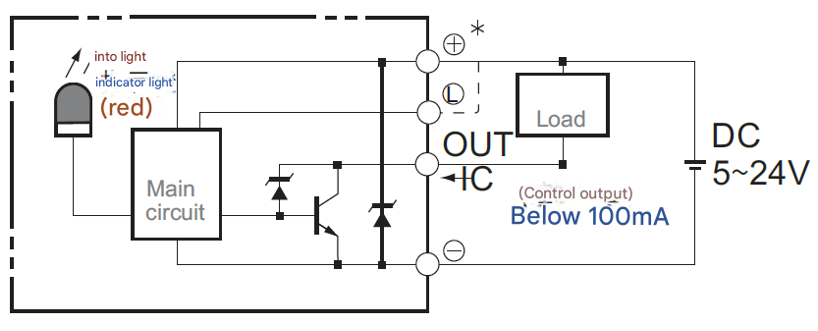

Sensor layout :






---

Specifications :



Specification	Position repeatability (mm)		±0.01
	Screw lead (mm)		5	10	20
	Maximum Speed  (mm/s) ※1		250	500	1000
	Maximum Payload	Horizontal use of Horizontal (kg)	50	30	18
		Vertical (kg)	15	8	3
	Rated Thrust (N)		683	341	174
	Standard Stroke/Pitch (mm)※2		50-1100mm/50 spacing 50mm Pitch
Parts	AC Servo Motor Output (W)		200
	Ball screw outer diameter (mm)		C7 Ø 16
	High Rigidity Linear Guide (mm)		10×14/11 (Note 1)
	Home Sensor	Outside	EE-SX674(NPN)



---
