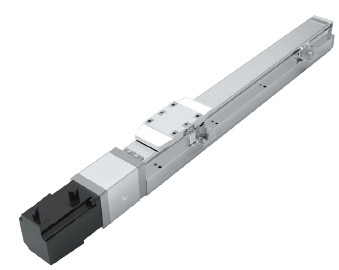

Model :
- GTH4
- GTH5
- GTH8
- GTH12
Features :
- Assembly, time-saving and convenient
- It can be fixed from top to bottom or from bottom to top without removing the steel belt.
- Add a mounting reference surface to the side of the body.
- There is a positioning PIN hole at the bottom of the body.
- Easy maintenance
- The entire series can be externally filled with oil without removing the cover.
- The entire series can be externally filled with oil without removing the cover.
- Straightness : ±0.02mm
- Maximum travel distance: 1050mm
- Repeatability : ±0.01mm
Dimension :
- GTH4
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
- GTH5
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
- GTH8
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
- GTH12
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
.png){kind=spacer}
*This drawing is for reference only. Actual dimensions are subject to the actual 2D/3D drawings provided. Product style, appearance, and specifications are subject to change without prior notice.
Specifications :
| Specifications | Motor | Body width (mm) |
Repeat positioning accuracy |
Screw specifications (C7 grade) | Maximum transportable weight (kg) | Top speed (mm/s) |
||
| Outer diameter | Lead | Level | Vertical | |||||
| GTH4 | 100W | 44 | ±0.01 | 10 | 2 | 25 | 8 | 100 |
| 6 | 20 | 8 | 300 | |||||
| 12 | 12 | 3.5 | 600 | |||||
| GTH5 | 100W | 54 | ±0.01 | 12 | 2 | 30 | 10 | 100 |
| 5 | 30 | 10 | 250 | |||||
| 10 | 15 | 5 | 500 | |||||
| 20 | 10 | 2.5 | 1000 | |||||
| GTH8 | 200W 400W |
82 | ±0.01 | 16 | 5 | 50 | 15 | 250 |
| 10 | 30 | 8 | 500 | |||||
| 20 | 18 | 3 | 1000 | |||||
| GTH12 | 400W | 120 | ±0.01 | 16 | 5 | 110 | 33 | 250 |
| 10 | 88 | 22 | 500 | |||||
| 20 | 40 | 10 | 1000 | |||||
| 32 | 30 | 8 | 1600 | |||||
*Top speed number is within the standard stroke represents the maximum safe speed that can be used within the stroke. If this speed is exceeded, the electric cylinder may resonate.
