DLS-1100 Deep Level Transient Spectrometer

The DLS-1100 Deep Level Transient Spectrometer is a premier metrology platform designed for characterizing electrically active defects and lattice impurities in semiconductor materials. Integrating low-vibration cryostat technology with advanced signal processing, it enables automated measurement of trap concentration, activation energy, and capture cross-sections. Engineered for wafer manufacturers and research institutes, the DLS-1100 provides critical data to ensure optimal carrier performance and material purity.

Product Overview

Deep Level Transient Spectroscopy (DLTS) is essential for identifying traps that limit device efficiency. The DLS-1100 supports comprehensive measurement modes including temperature scans, frequency scans, and depth profiling. With high-speed digitization of capacitance transients, it provides detailed numerical evaluations via a specialized Transient Recorder.

The system is built for versatility, accommodating both standard Capacitance DLTS and Current-based DLS (I-DLS) for conductive samples. Improved evaluation software automates experimental control, allowing precise characterization of impurity levels across a wide thermal range.

Core Features

High-Sensitivity Detection: Capable of identifying trace level contaminants down to 5 x 10⁷ atoms/cm³ for high-purity material validation.
Numerical Evaluation: Automated numerical analysis of digitized capacitance transients for accurate determination of trap properties.
Multi-Sensor Thermal Control: Features up to 10 sensors ensuring temperature measurement accuracy of less than 1 K across the testing range.
Dual Analysis Modes: Integrated support for both Capacitance DLTS and I-DLS, tailored for high-conductivity semiconductor samples.
Automated Logic: Fully automatic control of experimental parameters and calculation of trap concentration and activation energy.

Key Specification
Detection Limit	5 x 10⁷ atoms/cm³
Thermal Accuracy	< 1 K (Up to 10 Sensors)
Temperature Range	30 K to 800 K
Measurement Core	Lock-In Integrator Analysis

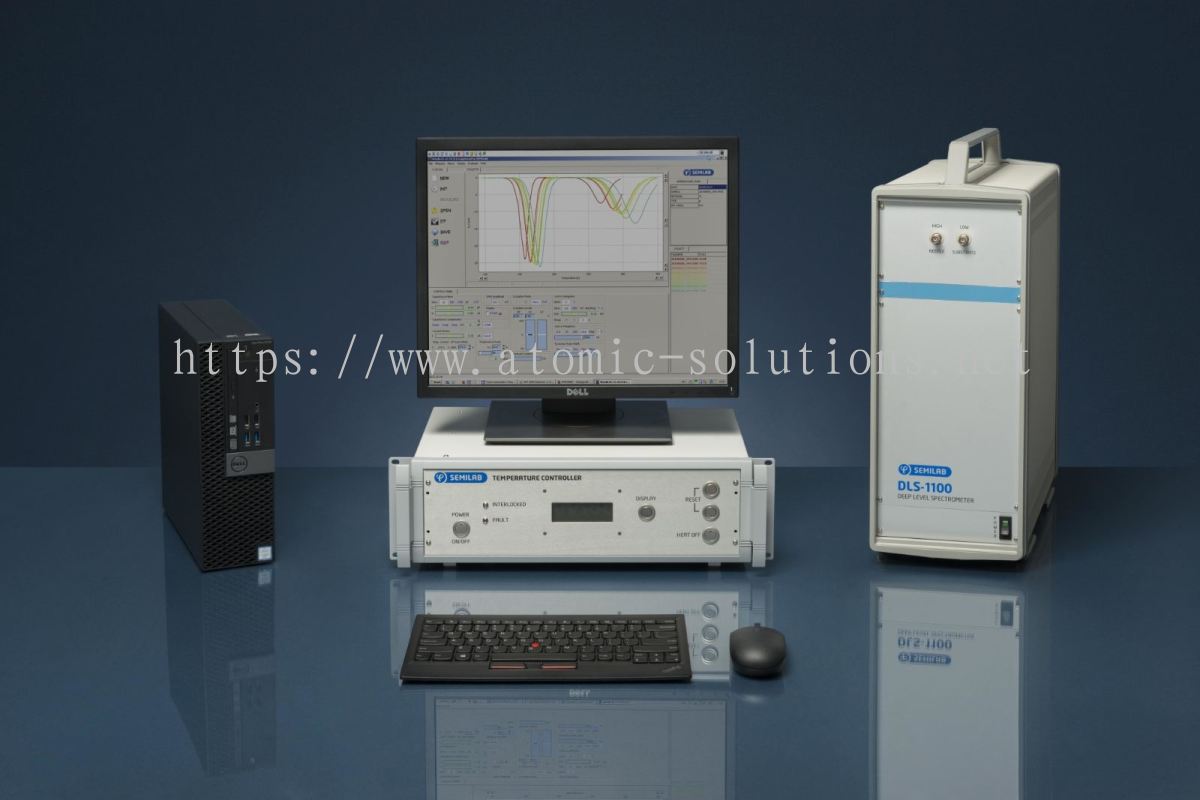

Analysis Hardware	Integrated Transient Recorder
MOS Studies	Interface State Mapping
Data Handling	Digitized Numerical Analysis
Verification	Sample I-V and C-V Testing

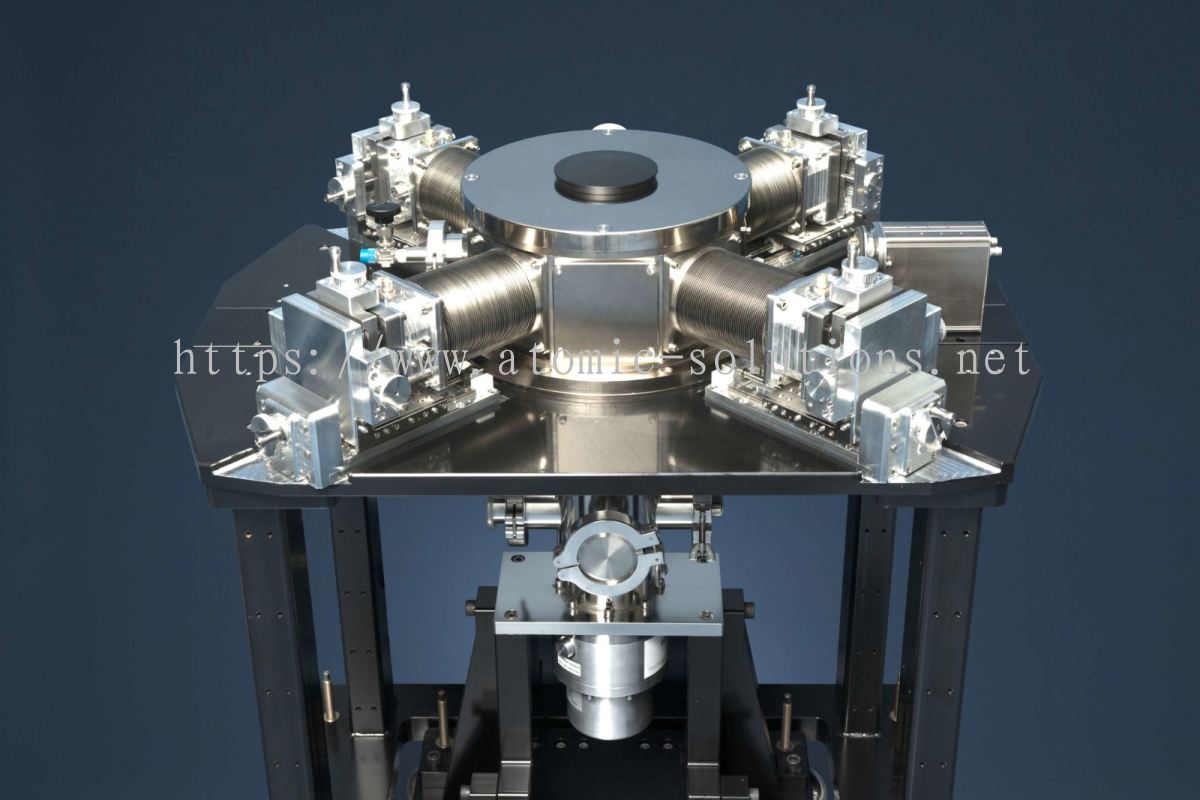

Cryostat Integration: Designed for low-vibration operation with options for Closed-Cycle Helium, Liquid Nitrogen Bath, or Controlled Flow chambers to minimize signal noise.

Application

Wafer Manufacturing

Verification of semiconductor purity and monitoring of metallic contaminants during production to ensure high-yield device fabrication.

Photovoltaics (DLTS-PV)

Characterization of recombination centers in solar materials to optimize charge carrier lifetime and energy conversion efficiency.

MOS Structure Analysis

Evaluating interface state densities and deep level traps in Metal-Oxide-Semiconductors to improve gate oxide stability.

Technical Specifications

Technical Parameter	Specification Detail
Impurity Detection Sensitivity	5 x 10⁷ atoms/cm³
Thermal Stability	Advanced controller maintaining < 1 K error
Cryostat Option: Closed He	30 K to 325 K Range
Cryostat Option: Bath Nitrogen	77 K to 450 K Range
Cryostat Option: Auto Flow	80 K to 550 K or 80 K to 800 K Range
Measurement Core	Lock-in Integrator for Capacitance Transients
Advanced Logic	Digitization and Numerical Analysis via Transient Recorder
Trap Identification	Activation Energy and Capture Cross Section Evaluation
Conductivity Adaptation	Current DLS (I-DLS) for low-impedance samples
Software Architecture	Win-based platform for automated measurement and report generation

Advantages

Elite Sensitivity Detects trace impurities down to 5x10⁷ atoms/cm³, allowing for proactive identification of defects that impact device reliability.

Process Automation Minimizes operator error through improved software that automatically manages temperature cycles and trap evaluation.

Vibration-Free Precision Advanced cryostat chambers ensure ultra-low vibration levels, maximizing signal-to-noise ratios for sensitive research measurements.

Direct Numerical Insights Full transient digitization provides statistically sound data on activation energy and trap concentration for high-level technical reporting.

Material Flexibility Versatile measurement modes support a wide range of semiconductor types, from wide-bandgap materials to PV solar cells.

Optimized Metrology Scalable architecture facilitates both laboratory-scale R&D and high-purity wafer quality control in industrial settings.
