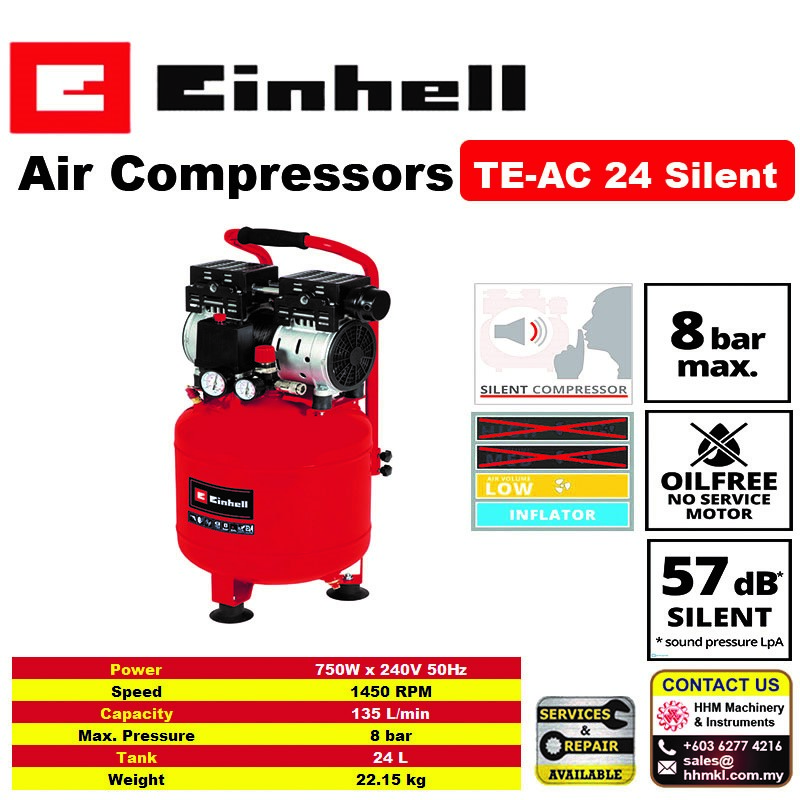

Feature£º
- – Silent compressor with low noise level of 57dB (LpA)
- – Quieter than standard compressors with comparable performance
- – Oil-free, service-free motor for low maintenance requirements
- – The 24 l tank has sufficient air reserves
- – Compact vertical design for space-saving storage
- – Integrated handle for easy transport
- – Applications up to 8 bar can be set using the pressure reducer
- – Pressure gauge and quick-release coupling for controlled pressure
- – Pressure gauge for unregulated pressure
- – Vibration-absorbing legs provide good stability
- – The safety valve protects the user
- – The drain plug enables user-friendly maintenance
Technical Data:
Mains supply | 220-240 V | 50 Hz |
Max. engine power | 750 W 1 PS |
Engine speed | 1450 min^-1 |
Pump speed | 1450 min^-1 |
Suction capacity | 135 L/min |
Output power at 0 bar | 100 L/min |
Output power at 4 bar | 73 L/min |
Output power at 7 bar | 55 L/min |
Max. operating pressure | 8 bar |
Tank volume | 24 L |
Number of cylinders | 2 Pieces |
Sound pressure level; Lpa | 57 dB (A) |
Sound power level; Lwa | 78 dB (A) |
Length | 334 mm |
Width | 319 mm |
Height | 712 mm |
Gross weight single packaging | 24.25 kg |
Product weight | 22.15 kg |
