Mitutoyo CV-3200S4 Contour Measuring Instruments


Contracer CV-3200
SERIES 218 — Contour Measuring Instruments



Dramatically Improved High-Precision Contour Measuring Instruments.
  • CV-3200 series are contour measuring instruments equipped with a high-precision arc scale and newly designed arm on the Z1- axis (detector). The high-precision arc scale can directly read the arc track of the stylus tip to achieve high accuracy and resolution. The new arm has extended the Z1-axis measuring range by 10 mm while reducing the chance of interference with workpieces compared to conventional models. The arm mount can be attached/detached with a single touch on the magnet joint for improved ease of operation.

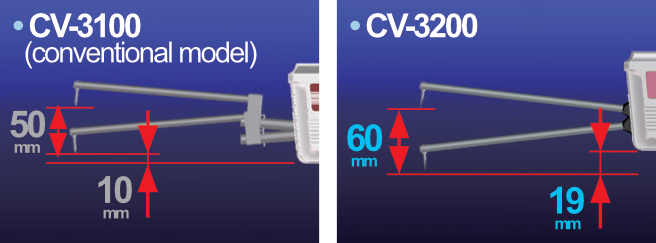

Z1-axis measuring range has been extended by 10 mm.
The 700 mm Z2-axis (column) range models are new to the lineup.


Technical Specifications


Model CV-3200S4
Measuring range X-axis 100 mm
Z1-axis (detector) 60 mm (±30 mm from the horizontal)
Z2-axis (column) travel range 300 mm
Accuracy (20 °C) X-axis ±(0.8+0.01L)μm L = traverse length (mm) Wide range: 1.8 μm/100 mm Narrow range: 1.05 μm/25 mm
Z1-axis (detector) ±(1.4+|2H|/100)μm H = probing height from the horizontal (mm)
Note: While the appearance of the natural stone measuring table varies according to the source, the high stability for which this material is known can always be relied upon.
