Johor,Johor Bahru (JB) Fiber-optic Laser Marking Machine Laser Marking Machine - Engraving And Marking Machine from Innochamp Machine Tools Sdn Bhd

The fiber laser marking system has an integrated design and the fiber transmission, which can be easy to integrate to the industrial production process. The laser can be directly controlled by the control interface (USB), with no consumable materials which greatly reduce the product cost. Compared with the conventional laser, this laser has high efficiency, long life, maintenance-free and other performance, which is one of successful example after the collaboration of AoHua Laser and Germany Laser Corporation.

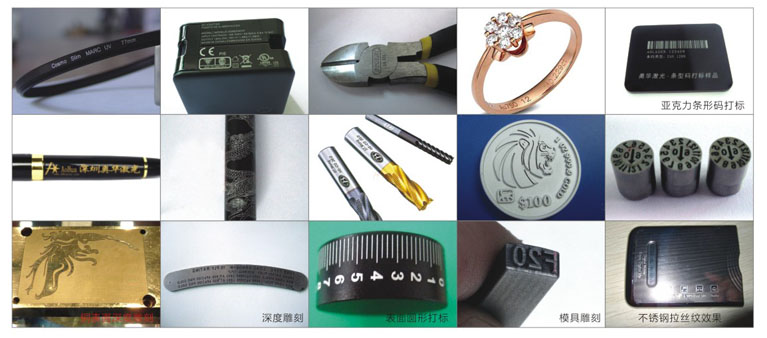

Wide application, especially applicable to the marking and engraving for hardware tools, cutters, kitchenware, plastic products, computer keyboards, metal jewelries, buttons, integrated circuits, packaging bottles, glasses frames, plumbing fittings, taps, etc.

Advantages

1, The high clear: resolution of 1 micron, is 10 times more than traditional products

2, Less power consumption: is the traditional product of 1 / 25 to 1 / 10

3, Speed: is the traditional product of 3 ~ 5 times

4, Stability; similar products can not match

5, Long service life: is 10 times more than traditional products.

6, Permanent: The vector graphics by the way of digital image processing, will not fade away by friction.

7, Environmental protection: no need to ink.

Technical parameters

Specification		AHL-FB10	AHL-FB20	AHL-FB50
	Max. Laser Power	10W	20W	50W
	Laser Wavelength	1064nm	1064nm	1064nm
	Beam Quality	M² < 2	M² < 2	M² < 2
	Laser Repetition Frequency	20KHz – 100KHz	20KHz – 100KHz	20KHz – 100KHz
	Marking and EngravingRange	100mm x100mm	100mm x100mm	100mm x100mm
	OptionalEngravingRange	50mm x50mm 150mm x150mm	50mm x50mm 150mm x150mm	50mm x50mm 150mm x150mm
	Engraving Depth	≤ 1.2mm	≤ 1.2mm	≤ 1.2mm
	Engraving Linear Speed	>800 Standard Character/s	>800 Standard Character/s	>800 Standard Character/s
	Min. Linear Width	0.01mm	0.01mm	0.01mm
	Min. Character	0.15mm	0.15mm	0.15mm
	Repetition Accuracy	±0.002mm	±0.002mm	±0.002mm
	Power Consumption	≤ 500W	≤ 500W	≤ 500W
	Electrical Connection	220V ± 10%/50Hz/4A	220V ± 10%/50Hz/4A	220V ± 10%/50Hz/4A
	Laser	Germany IPG	Germany IPG	Germany IPG
	Laser Module Life	>1000000h (Hour)	>1000000h (Hour)	>1000000h (Hour)
	Galvanometer	SCANLAB	SCANLAB	SCANLAB
	Cooling Mode	Air Cooling	Air Cooling	Air Cooling
	Control Interface	USB	USB	USB

Specifications

number

name

quantity

unit

size

after packing size

The main cabbinet

tower

L×W×H

630×630×1430

L×W×H

700×700×1500
