IMITOS 2M/3M Magnetic Conceal Track Rail
The IMITOS LED Ultra Thin Magnetic Conceal Track Bar (IM UP30-TRACK) is a premium architectural lighting rail system designed for seamless, recessed ceilings in modern Malaysian homes and commercial projects. Available in 2M and 3M lengths, this ultra-slim aluminium profile features a Ø 30.2mm cut size and operates on a safe DC48V low-voltage input. It allows flexible magnetic light adjustments without visible rims, delivering a clean, minimalist interior look.
Full Detailed Description:
Achieving a minimalist interior design requires hiding the clutter of traditional fixtures. The IMITOS LED Ultra Thin Magnetic Conceal Track Bar (Model: IM UP30-TRACK) is engineered precisely for this purpose. Commonly integrated into plaster ceilings across modern residential and commercial properties in Kuala Lumpur and Selangor, this system acts as the backbone for your magnetic track lighting. It allows users to plug, unplug, and slide LED track modules seamlessly without requiring a technician.
Premium Construction & Ultra-Thin Dimensions
The IM UP30-TRACK features a structural layout meant to disappear into your drywall or plaster ceiling.
Unlike traditional 220V–240V mains voltage tracks which pose shock risks during manual adjustments, the IMITOS IM UP30-TRACK operates on a DC48V input system.
The track bar is available in 2M and 3M options, providing the structural flexibility required for large living spaces, open-concept kitchens, galleries, and high-end retail showrooms. Because it is a concealed magnetic track rail, the outer flanges are designed to be plastered over. Once installed, all that is visible is a neat, dark 30mm slot running across your ceiling, shifting the focus completely onto the dramatic lighting effects rather than the fixture itself.
Premium Construction & Ultra-Thin Dimensions
The IM UP30-TRACK features a structural layout meant to disappear into your drywall or plaster ceiling.
-
Material Integrity: Constructed from high-grade architectural Aluminium with a sleek black (BK) anodized finish, ensuring structural rigidity and optimal heat dissipation for your LED modules.
-

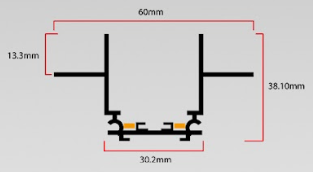

Physical Profile: Measuring an outer size of 60*38.1mm, it maintains an incredibly low-profile aesthetic.
-
Precision Cutting: The ceiling cutting specification requires a Ø 30.2mm cut size. This ensures the profile sits completely flush within the ceiling gap, creating a rimless, "trimless" illusion once the plastering and painting are finalized.
Unlike traditional 220V–240V mains voltage tracks which pose shock risks during manual adjustments, the IMITOS IM UP30-TRACK operates on a DC48V input system.
-
User Safety: The low-voltage design allows homeowners to safely adjust, slide, remove, or add magnetic track lights while the system is powered on, with zero risk of electrical shock.
-
Stable Current: DC48V architecture reduces voltage drops across long runs (especially on the 3M length option), ensuring that light fixtures at the far end of the track perform with the exact same brightness as those closest to the smart driver.
The track bar is available in 2M and 3M options, providing the structural flexibility required for large living spaces, open-concept kitchens, galleries, and high-end retail showrooms. Because it is a concealed magnetic track rail, the outer flanges are designed to be plastered over. Once installed, all that is visible is a neat, dark 30mm slot running across your ceiling, shifting the focus completely onto the dramatic lighting effects rather than the fixture itself.
Specification:
- Model: IM UP30-TRACK
- Length: 2M / 3M
- Input: DC48V
- Color: BK
- Materials: Aluminium
- Size: 60*38.1mm
- Cut Size: Ø 30.2mm
A:The required cut size (ceiling slot width) for the IMITOS IM UP30-TRACK is Ø 30.2mm. Accurate ceiling provisioning ensures a completely flush, seamless fit.
Q2: Can I connect the IMITOS Magnetic Conceal Track directly to Malaysia's 240V home power supply?
A:No, you cannot. The track bar requires a DC48V input. You must connect the main 240V AC house power supply to a compatible DC48V LED transformer/driver before routing it into the track rail.
Q3: What lengths are available for the IMITOS Ultra Thin Magnetic Track Bar?
A:This specific model is available in two commercial lengths: 2 Meters (2M) and 3 Meters (3M), which can be custom-cut on-site by your contractor to fit your ceiling layout.
Q4: Is it safe to move the magnetic lights while the track power is turned on?
A:Yes, it is perfectly safe. Because the system utilizes a low-voltage DC48V input, it eliminates electrical shock hazards, letting you reposition your lights safely at any time.
Q5: What is the benefit of an aluminum material track bar over plastic options?
A:The Aluminium build provides superior structural integrity (preventing sagging over long 3M spans) and acts as an efficient heat sink, keeping your magnetic LED modules cool and extending their lifespan.
Q6: What does "Conceal Track" mean in interior design lighting?
A: A conceal track (or plaster-in track) means the side wings of the rail profile are screwed into the plasterboard and covered with plaster compound. After painting, the track looks completely embedded into the ceiling with zero outer trim visible.
Q7: Can I cut the 3M IMITOS track bar if my wall/ceiling run is shorter?
A: Yes, the aluminium profile can be easily cut to any custom length using a standard metal hacksaw or miter saw during the ceiling installation phase.
Q8: Does the IMITOS IM UP30-TRACK come with the magnetic LED lights included?
A:No, this model code represents the magnetic rail profile structure only. Magnetic track spotlights, linear floods, and pendant fixtures must be purchased separately based on your lighting plan.
Q9: What color variant does the IM UP30-TRACK come in?
A:It is available in the BK (Black) color variant, which is the industry standard for creating deep, clean visual contrast lines in modern ceilings.
Q10: Why should I choose a DC48V magnetic track system over a DC24V system?
A:A DC48V configuration suffers from significantly less voltage drop. This allows you to link longer distances (like the 3M track variant) without experiencing dimmed light outputs at the end of the line.
