IMITOS HC-SP901E LED Signal Amplifier DC5-24V
Eliminate flickering and signal drop in your dream color lighting projects. The IMITOS Signal Amplifier HC-SP901E is a professional-grade SPI signal repeater engineered for complex addressable LED strip installations. Supporting a wide DC5-24V operating voltage and a 5V TTL signal input, it splits a single data stream into multiple synchronized outputs (up to 4 or 8 channels). Boasting ultra-low power consumption (<1W) and a robust, compact build (140x55x27mm), this accessory is the definitive solution for contractors, IDs, and DIY enthusiasts in Malaysia looking to extend running IC lighting systems seamlessly.
Full Description:
When deploying large-scale addressable LED strip setups (such as plaster siling lighting in premium Malaysian homes or commercial retail lots), signal degradation is a persistent issue. As the data wire stretches further from the main pixel controller, commands weaken, resulting in delayed effects, incorrect colors, or frantic flickering.The IMITOS Signal Amplifier (Accessories) - HC-SP901E acts as a high-fidelity data repeater. It takes a single SPI/TTL data stream from your primary pixel controller (such as SP105E, SP107E, SP108E, or K-1000C) and simultaneously regenerates it across multiple outputs. This allows installers to branch out complex arrays without risking data lag.
Key Features & Technical Capabilities
- Multi-Channel Synchronization: Depending on your wiring configuration, the HC-SP901E can process a single input to feed multiple synchronized output channels.
This ensures every individual pixel strip responds uniformly to your light show or music sync controllers. - Universal DC 5V to 24V Range: Built with absolute versatility in mind, the IMITOS amplifier works natively across common system voltages, accommodating 5V pixel rings, 12V WS2811 strips, or commercial-grade 24V running IC strips.
Note: The unit passes through input voltage directly and does not step-up or step-down voltage. - Optimized Power Consumption: Operates at peak performance while maintaining an ultra-lean static consumption profile of less than 1W (<1W).
It won't place unnecessary strain on your primary LED switching power supplies. - Industry-Standard 5V TTL Logic: Fully compatible with a vast array of single-wire and dual-wire addressable IC chipsets, ensuring crisp data transfers over extended runs.
Installation & Wiring Guide for Malaysian Homes
To achieve long-lasting results in local residential designs, proper power inject principles must be paired with the IMITOS HC-SP901E.
-
Match Your Voltages: Ensure the power supply feeding the HC-SP901E matches your LED strips exactly. If you are using a 12V system, power the amplifier with 12V.
-
Shared Grounding (GND): To prevent data interference and erratic flickering, always ensure a common negative ground connection between your primary pixel controller, the IMITOS signal amplifier, and all corresponding LED power units.
-
External Power Injection: While the HC-SP901E effectively amplifies data signals, it does not supply high-current power. For long running IC configurations, inject power directly to the V+ and V- lines of the strip every 5 meters.
Specification:
- Model: HC-SP901E
- Signal: 5V TTL
- Consumption: <1W
- Input Voltage: DC5-24V

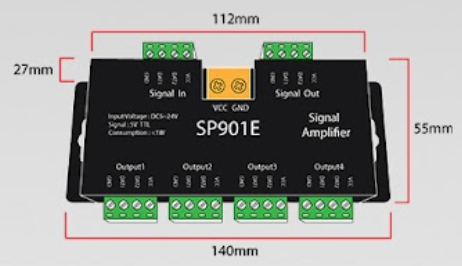

- Size: 140*55*27mm
Q1: What is the purpose of an IMITOS HC-SP901E signal amplifier?
A: The IMITOS HC-SP901E is used in addressable/pixel LED lighting to amplify and repeat the data control signal (5V TTL).
Q2: Does the IMITOS signal amplifier step up 12V LED strips to 24V?
A: No, it cannot regulate or convert voltage.
Q3: Why are my running IC plaster ceiling lights flickering in Malaysia?
A: Flickering is typically caused by two issues: voltage drop across long lines or data signal degradation from the controller. Adding an IMITOS HC-SP901E amplifier cleans up the data signal, while injecting extra power solves the voltage drop.
Q4: Which LED IC chips are compatible with the HC-SP901E amplifier?
A: It is compatible with almost all standard 5V-TTL signals, including popular addressable ICs like WS2812B, WS2811, SK6812, WS2813, WS2815, and running IC 2835 strips used in modern interior layouts.
Q5: How many channels can the IMITOS HC-SP901E signal repeater output?
A: It can output up to 8 channels for single data wire setups (like WS2812B) or up to 4 channels for dual-wire setups that require both a data and clock wire (like APA102 or WS2813).
Q6: What is the power consumption of the IMITOS HC-SP901E accessory?
A:The device features highly efficient engineering with a static power consumption of less than 1W (<1W), meaning it has virtually zero impact on your electricity bill or power load calculations.
Q7: Can I connect multiple IMITOS SP901E signal amplifiers together?
A: Yes, multiple IMITOS HC-SP901E amplifiers can be cascaded (daisy-chained) together synchronously.
Q8: Does this LED signal amplifier require a separate power supply?
A:While it draws very little power (<1W), it must be connected to a DC5-24V power source.
Q9: What are the physical dimensions of the IMITOS HC-SP901E?
A:The unit features a compact, sleek form factor measuring 140mm × 55mm × 27mm, making it easy to hide inside plaster ceilings, wall slots, or electrical driver boxes.
Q10: Where can I buy original IMITOS lighting accessories in Malaysia?
A: Original IMITOS smart lighting and digital accessories are available through certified local electrical distributors, specialized lighting stores in KL/Selangor, or online via Shopee Malaysia and Lazada.
