(PRINTED OR UNPRINTED SHRINKABLE FILM CAN CHOOSE)
Merits:
- The shrinkable film is considerably cheater than carton. There are no problems in applying bar code on the film. Stable packs and good stacking qualities.
- Good protection for bottles and cans against contamination - clean, sanitary and good moisture resistance. Protection for bottled products against the effects of UV radiation.
- The film can be printed for specific promotional advertising effects, and inserted coupons for sales promotion. Encourages the sale of multipacks instead of single products. Products are easily distinguished & managed. PE film can be recycled.
- It’s very easy to do arrangement on production line. Simple & clean appearance is the best equipment for GMP factory.
- It’s equipped with safety alarm devices including the sealing safety sensor, non-film sensor, upside-down cans sensor and film breakage sensor. There are photo eyes following up the register printed film.
- The machine body is made by painted steel or stainless steel and Aluminum alloy material.
- It’s easy & fast to adjust different packing structures.
- The machine is controlled by PLC program, so the actions are smooth. It’s simple to operate the control panel.
Special Explanations:
- The standard working height is 750 +/- 50mm. Special working height can be made as per customer’s requirement.
- The in feed conveyor (as shown A figure) can connect with the production line.
- The position of the control cabinet is optional.
- If the pack formation is 7x2, 1x3, 3x4, 2x4, 2x5 or PET bottles, the machine can be additionally designed.
- The in feed conveyor can be additionally equipped with the dispersing mechanism.
- The upper film is surface printed film, the lower one in transparent film.
Specification
| Model | Pack formation |
Packing size L x W x H |
Film type | Packing speed (packs/min) | Applications | Air pressure |
Dimension L x WxH |
Weight |
|---|---|---|---|---|---|---|---|---|
|
FAC-207 FAC-207T |
2x2 2x3 |
210 x 160 x 180 |
Printed film Unprinted film |
25~30 (Up to 30 packs/min) 25~35 (Up to 35 packs/min) |
Cans, glass or plastic bottles |
5~6 kg/cm2 | 2400 x 1150 x 1990 | 600 KGS |
|
FAC-209 FAC-209T |
2x2 2x3 |
300 x 200 x 320 |
Printed film Unprinted film |
20~25 (Up to 25 packs/min) 20~28 (Up to 28 packs/min) |
5~6 kg/cm2 | 2400 x 1150 x 1990 | 750 KGS |
| Model |
Packing Size W x H |
Packing Ability Meter/Min |
Power | Electric Heating |
Dimension L x W x H |
Weight |
|---|---|---|---|---|---|---|
| FM-6030L | 500 x 280 | 1~10 | Voltages upn reguest |
≒ 15KW
|
2025 x 800 x 1460 | 400 KGS |
| FM-7530L | 650 x 280 | 1~10 | ≒ 18KW | 2025 x 950 x 1460 | 500 KGS |
Features:
- Register printed or unprinted shrinkable film can choose.
- The machine is the most suitable for PE printed material to make the great value of products.
- Various pack formations can meet the trend of wholesale.
- Fast packing speed can match the production line prosperously.
- To assure the quality without being damaged, to save electricity and to increase profits.
- Heat oven for contracting will send out even heat radiation. Delivery is done by rollers with durability.
- Special air flow directional construction for color/non-color film, can shrink products bautifully and smoothly.
- Variable speed tunnel conveyor, automatic thermostat controls, simple operation.
- Silicone rubber coated conveyor belt rods.
Illustration of FAC-207 Machine

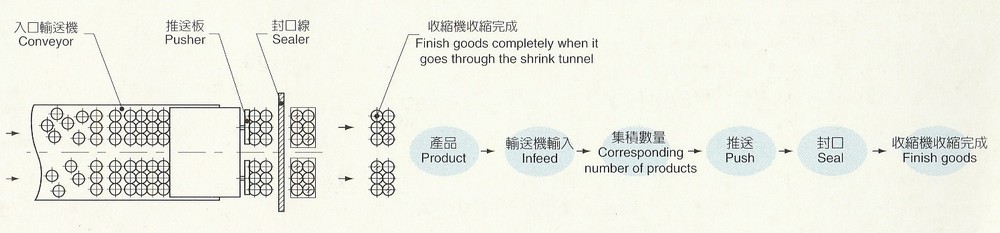

Packing Flow
