Why Modular?

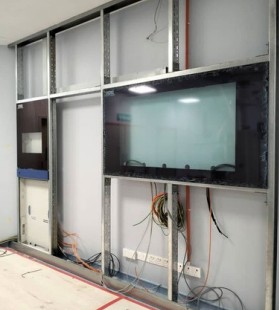

Modular
Modular walls allow surgical spaces to be tailored to user needs, with quick modernization or upgrades done overnight without disrupting schedules. They offer fast installation and flexibility for future additions.

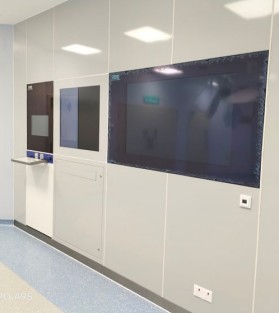

Hygienic
The modular walls and ceilings feature silver ion-based antimicrobial protection to prevent bacterial growth. The 6mm gaps between panels are sealed with hermetic silicone containing antibacterial silver ions, resistant to UV, detergents, bactericidal agents, water, steam, and chemicals.
Design
Individually designed graphics are often printed on modular walls (steel or glass) to make the surgical environment friendly and to facilitate concentration. Modular walls are available in a wide spectrum of materials, colors and design options.
.jpg)

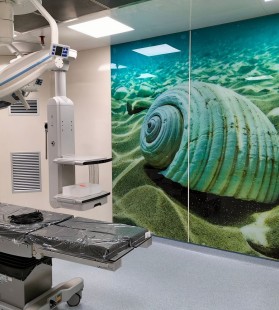

Modular Operating Theatre
- Manufactured with international standards EN ISO13485
- Modular OT specification are based on European standards
- Design, Develop & Manufactured by Malaysian engineers who have 20 years of experience in structural fabrication and installation.
Modular Operating Rooms
Modular Panel System
- Stainless steel wall panel system on galvanized steel substructure OR Graphic printed tempered glass panel
- Gabs filled with antimicrobial silicone gaskets.
- Rounded or 90-degree wall corners available.
- Panel powder coated with RALcolour
- RAL colour available
Modular Ceiling System
- Ceiling made of galvanized steel panel system on galvanized steel structure
- Clip Lock System to ensure the hermetic seal of the OT
- Panel powder coated with RAL 9010 colour
- Standard panel size 600 x 600mm

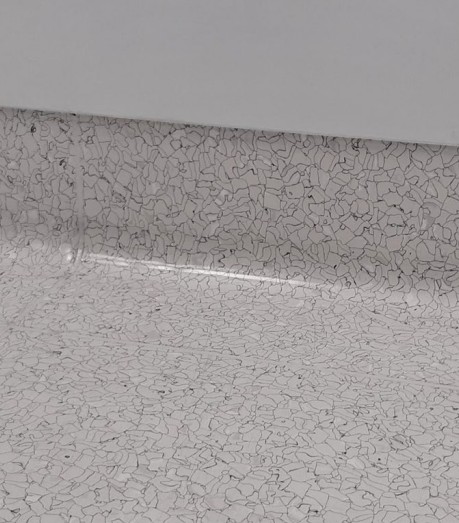

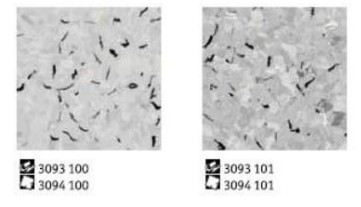

Flooring
- Permanent static conductive
- Pressed, homogeneous vinyl flooring, 2mm thick.
- Provided with all necessary chemical agents and certified components.
- Easy to clean and easy to decontaminate.
- Does not favour the growth of bacteria.
- Class A with good chemical resistance
Laminar Air Flow System
- Made of stainless steel.
- HEPA filter H13 included.
- Guarantees required air exchange rate in OT.
- Available in various options:
OT General Lighting
- High Efficient LED Panels.
- Coffer made of steel, powder coated in white colour.
- Impact resistant.
- Hardened mat glass diffuser.
| Technical Parameters | 600 x 600 | 1200 x 600 |
| Luminous Flux LED (lm) | 6966 | 18576 |
| LED Power (W) | 37 | 99 |
| Luminaire Luminous Flux (lm) | 5572 | 14860 |
| Luminaires Light Efficiency (lm/W) | 133 | 134 |
| Color of the Light (K) | 4000 | |
| Photobiological Risk Class (IEC/EN 62471) | RG0 | |
| Protection Against Electric Shock | I | |
| Protection Degree | IP65 | |
| Lifetime of LED Sources (h) | 100 000 | |
| Operating Temperature Range (ºC) | 5 - 30 | |

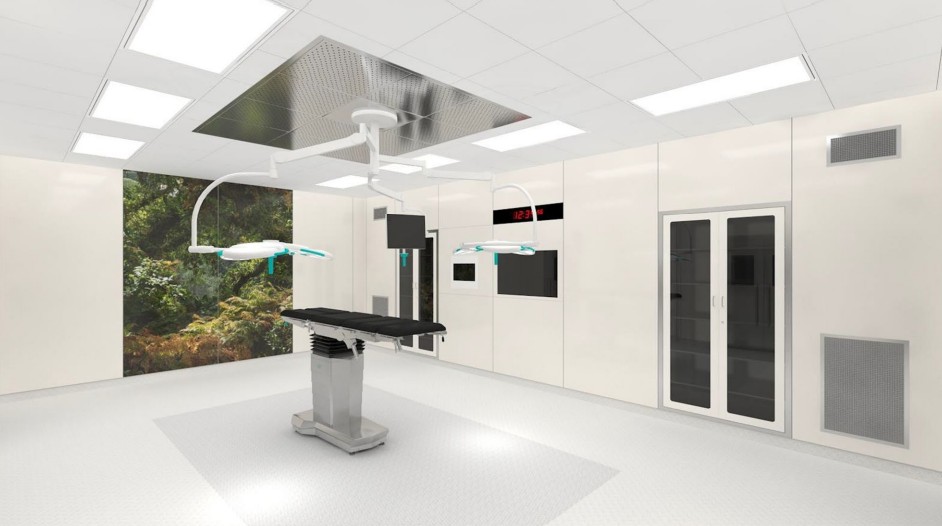

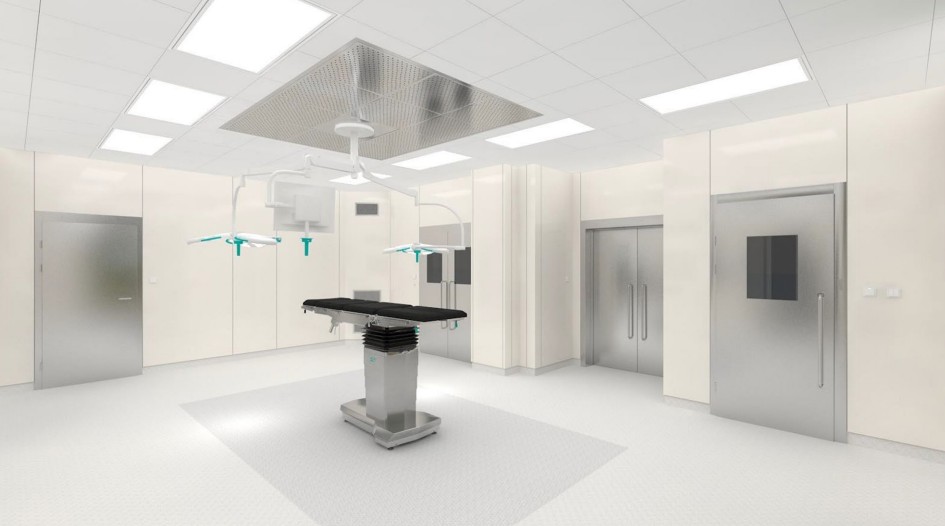

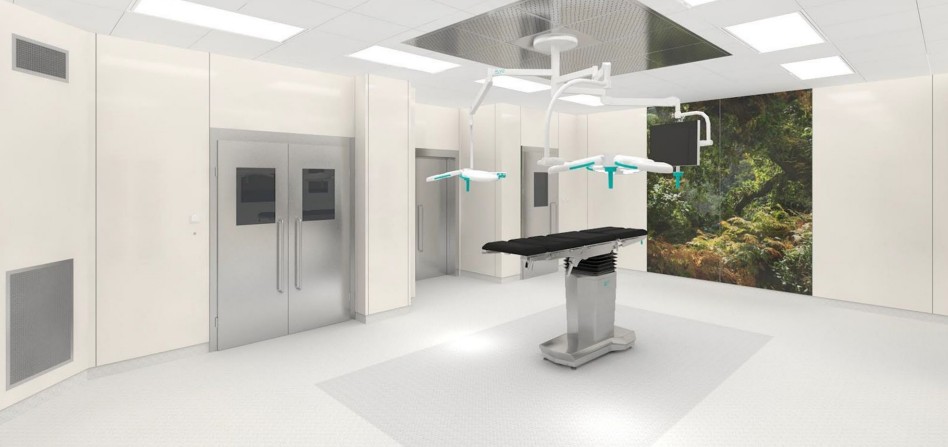

Modular Operating Room Concept
